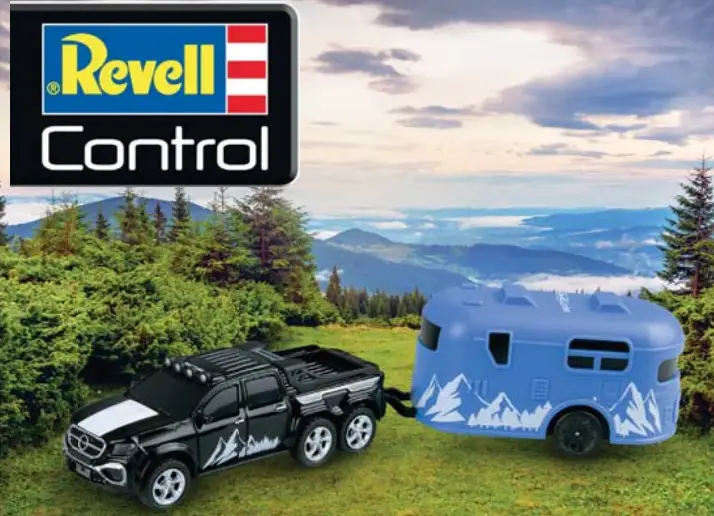

Revell 23566 RC Mini Camper User Manual

23566                                                                        6+

RC MINI CAR CAMPING

USER MANUAL



www.revell.de

© 2024 Revell GmbH, Henschelstr. 20-30, D-32257 Bunde. REVELL IS THE REGISTERED TRADEMARK OF REVELL GMBH, GERMANY. Made in China.
Distributed in the UK by: Carrera Revell UK LTD, Unit 10, Old Airfield Industrial Estate, Cheddington Lane, Tring HP23 4QR, United Kingdom
Distributed in USA by: Carrera Revell of Americas Inc., Suite 307N, 197 Route 18 South, East Brunswick, NJ 08816, USA

V 01.02

1 OVERVIEW OF THE MODEL

1. 1A
   Charging socket
2. 3A
   Trim
3. 2A
   ON/OFF switch

2 OVERVIEW OF THE REMOTE CONTROL

1. 1B
   Acceleration (forwards/backwards)
2. LED
3. 2B
   Direction (left/right)
4. 3 Speed levels

Frequency range: 2400 – 2483.5 MHz
Maximum frequency power: < 10 dBm

3 REMOTE CONTROL

Battery for the remote control
Power supply: DC 3 V ⎓ Batterie: 1 x 3V “CR2032” (not included)

4 STEERING TRIM ADJUSTMENT



5 VEHICLE CONTROL



6 START

7 BATTERY


charging                     recharged

Batteries/ rechargeable batteries for the model: Power supply: ⎓Power rating: DC 3,7 V/160 mAh/0,59 Wh Li-Ion battery (included) USB charger: Power supply: DC 5 V ⎓ via USB port starting up to max. 500 mA

8 TABLE OF CONTENTS

SERVICE?

Note: This toy contains batteries that are not replaceable.
