Zowill DK01 Keyless Entry Door Lock Instruction Manual
Contents

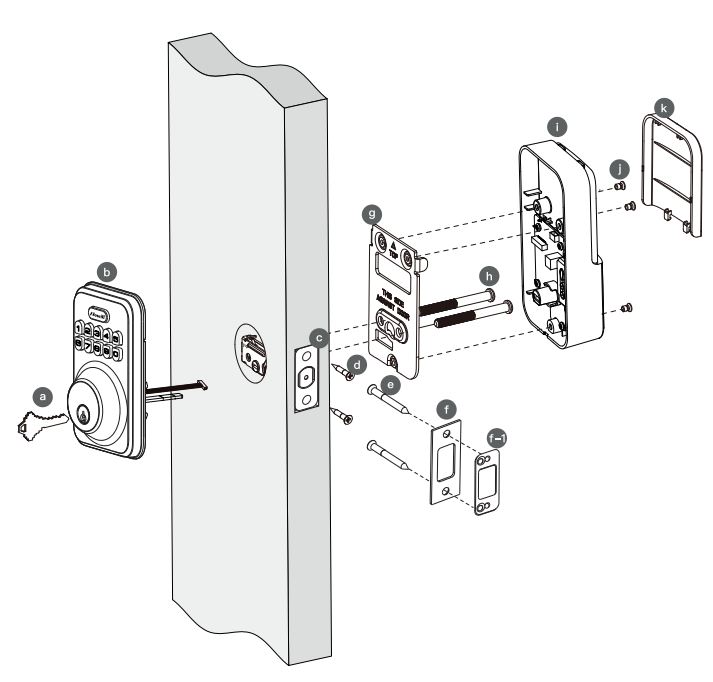

Parts List:
The details of part identification Is shown on page 5.

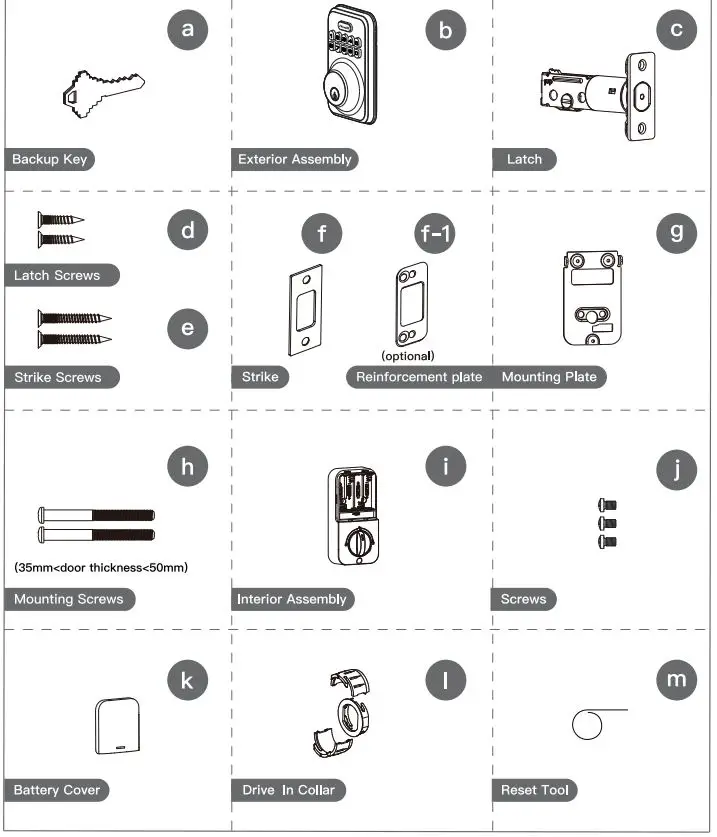

Parts identification

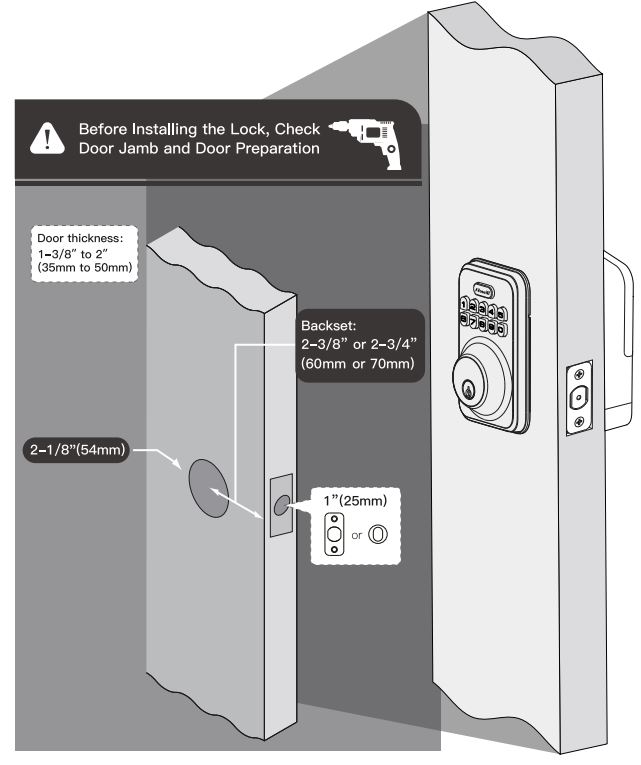

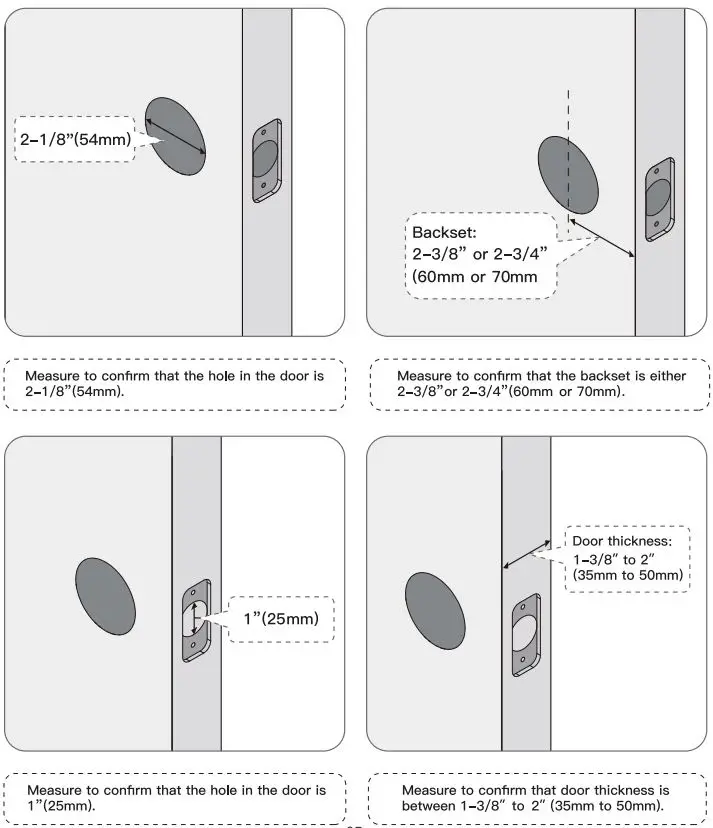

Prepare the door and check dimensions

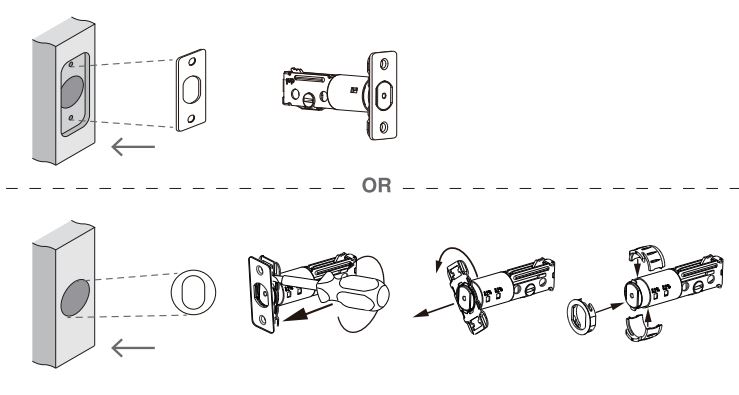

Choose faceplate

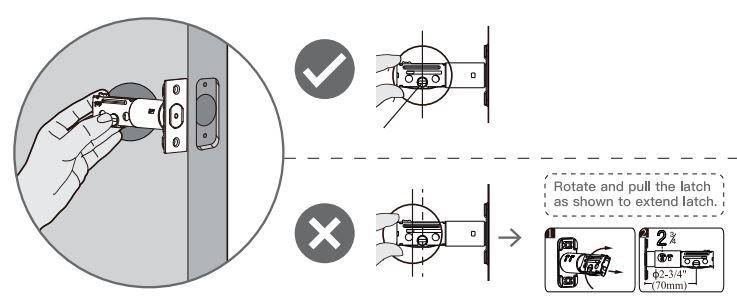

Is the slotted hole cantered in the door hole?

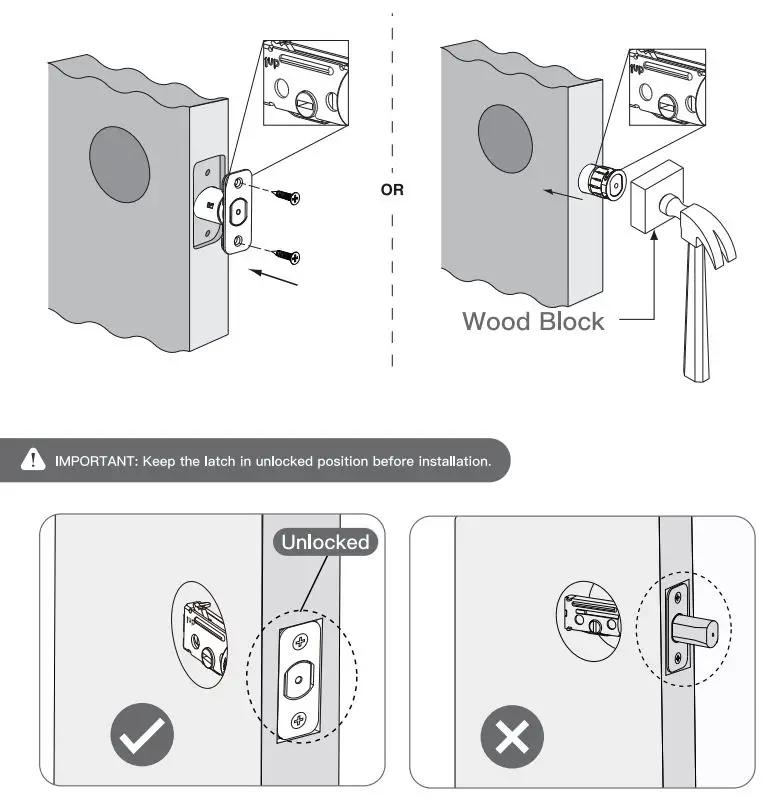

Install latch and deadbolt

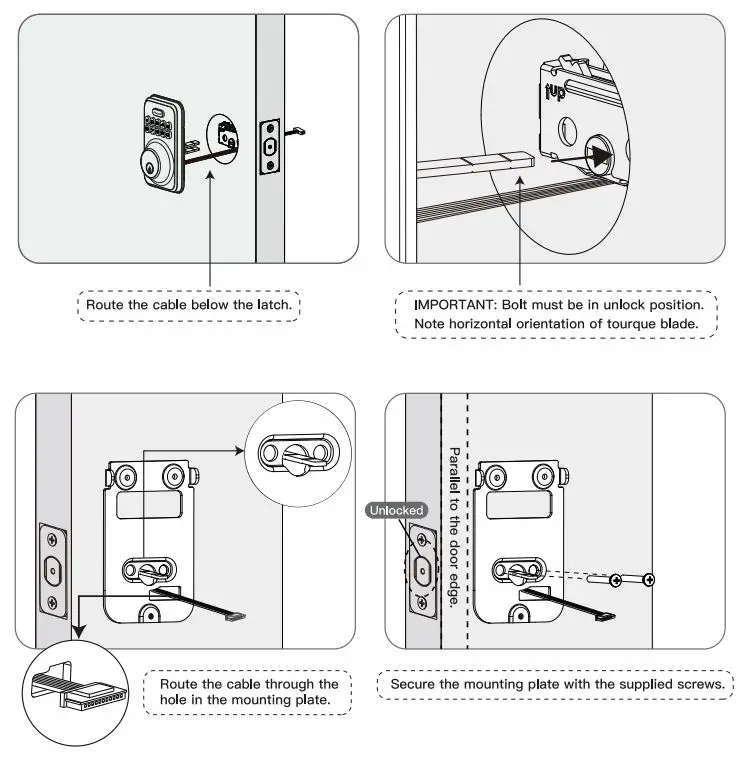

Install exterior assembly
Install interior assembly
⚠ Do not load batteries until lock is completely installed.

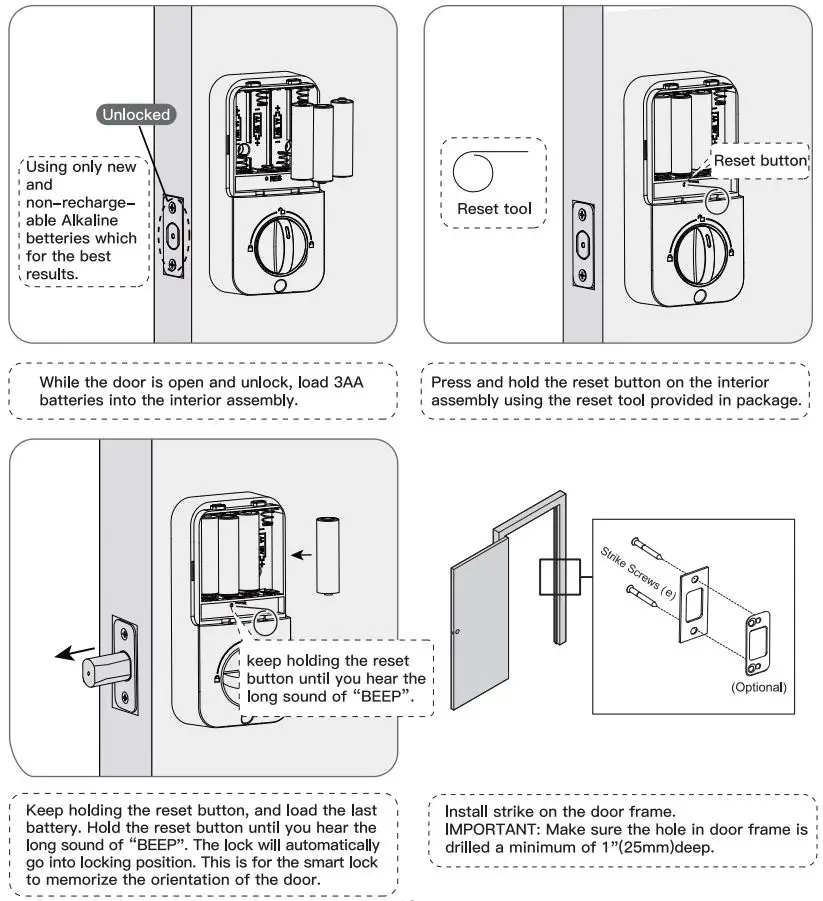

Detect left/right hand door installation
⚠ IMPORTANT: This step is required and crucial for the lock after installation!
