Zoroufy Legacy Wall Hanger Collection Instruction Manual

Legacy®
WALL HANGER COLLECTION

SPECIFICATIONS

Zoroufy® Stair Rods slide into each bracket approximately ½”.
Finials attach to the bracket.

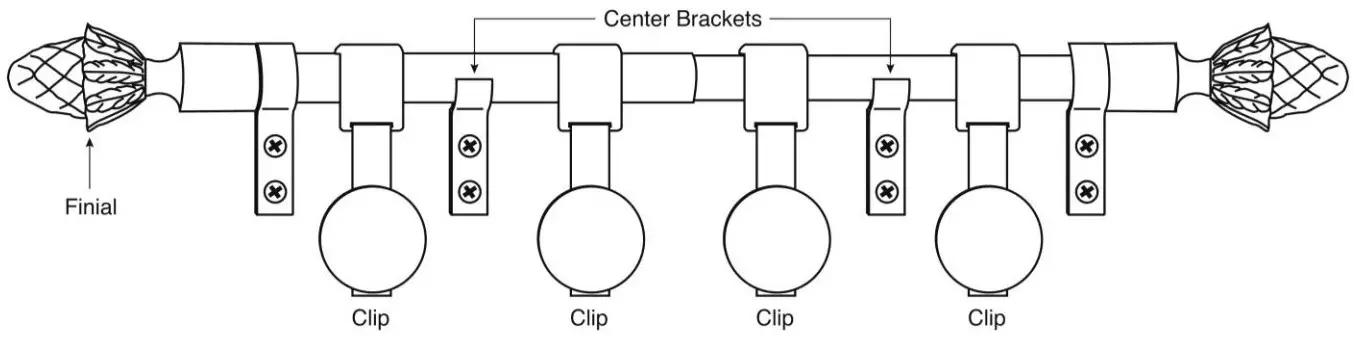

INSTALLATION INSTRUCTIONS

1. With finials and end brackets attached to rod, expand rod to desired length. If using a sleeve or pocket on the back of the rug, tapestry, or quilt, separate rods and slide into sleeve or pocket first.
2. Hold rod in desired position against wall and mark position of holes in the left end bracket.
3. While supporting the ride side, install the left end bracket using provided screws. Wall anchors must be used if screws are not installed into a stud.
4. Located position of the right end bracket by leveling rod and expanding to desired length. Install the right end bracket into wall.
5. After end brackets are installed, place center support brackets into desired positions and install. Wall anchors must be used if screws are not installed into a stud.
6. If using clips, attach to the rug, tapestry, or quilt and secure in place by tighting the disc. Both 1/2” and 5/8” are provided and should be used on corresponding rods. Place clips over the rod.

ALL PARTS ARE LACQUER COATED TO RESIST TARNISHING. DO NOT USE BRASS CLEANER OR OTHER ABRASIVES. TO CLEAN, SIMPLY WIPE WITH A SOFT DRY CLOTH.
PERIODICALLY CHECK AND TIGHTEN ALL SCREWS AND HARDWARE.
