Heritage™
STAIR ROD COLLECTION
Instruction Manual
Contents
SPECIFICATIONS
| FINIAL | LENGTH |
| Pineapple | 1 3/8” |
| Round | 3/4” |
| Urn | 1 1/4” |
| Crown | 1 7/8” |
| Acorn | 1 1/4” |
| Classic (No Finial) | 0” |
| ROD GAUGE ROD DIAMETER | .031” 1/2” |
Zoroufy® Stair Rods slide into each racket approximately ½”.
Finials attach to the bracket.
REGULAR
Accomodates regular pile carpets (under 3/4”)
EXTENDED
Accomodates thick pile carpets (over 3/4”)
INSTALLATION INSTRUCTIONS
- The carpet runner must be installed using another method of installation. Zoroufy Stair Rods are for decorative use only.

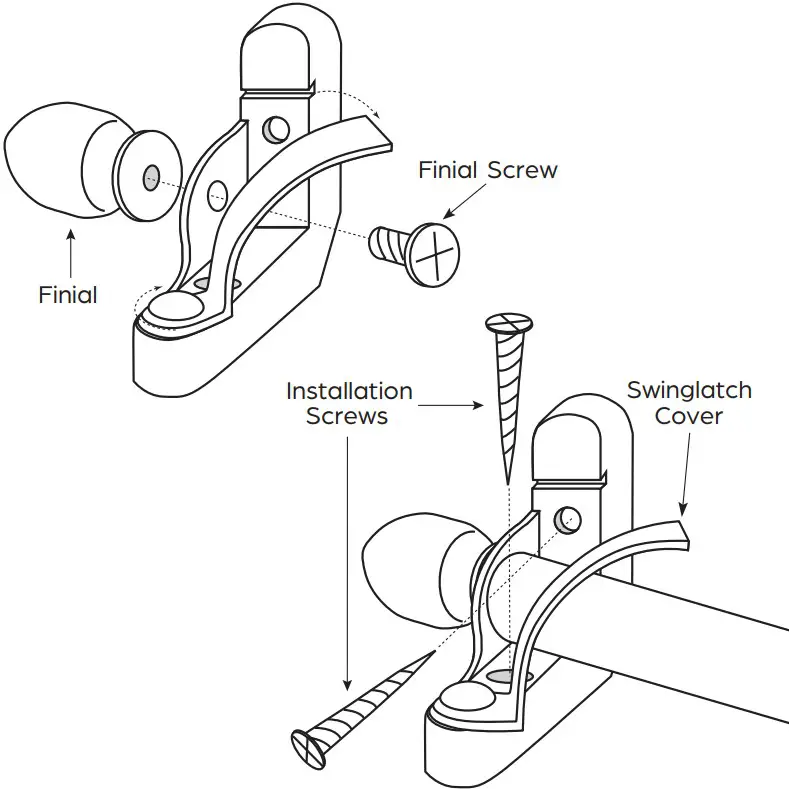

- Attach finials to the brackets using small screws provided in finials. Ignore this step if using Classic brackets.
- Locate desired position of the brackets by inserting the rod into the brackets and laying on the stairs. Positioning both the left and right bracket an equal distance from the side edges of the runner is the most preferable position.
- Open the swing latch covers of the brackets exposing the installation screw holes.
- For each step, install one bracket onto stairs using screws provided or other anchors suitable for stair material. Drilling a pilot hole first is recommended. Insert the rod into the installed bracket and place remaining bracket on the other end to confirm exact position of the bracket on the other side.
- Install remaining bracket using the same method as above.
ALL PARTS ARE LACQUER COATED TO RESIST TARNISHING. DO NOT USE BRASS CLEANER OR OTHER ABRASIVES. TO CLEAN, SIMPLY WIPE WITH A SOFT DRY CLOTH.
PERIODICALLY CHECK AND TIGHTEN ALL SCREWS AND HARDWARE.
