2D Wireless Barcode Scanner with Base
Model number: VS3070
User manual
. Product introduction
- The product has excellent decoding ability, which can quickly and accurately read the poor printing quality barcode.
- It has good anti-earthquake, anti-fall and dust-proof protection
- It has large capacity battery, charging 4 hours and used for a week in regular working.
- The core parts of this product are: Barcode Scanner, Charging Base, Cable, Data Receiver……

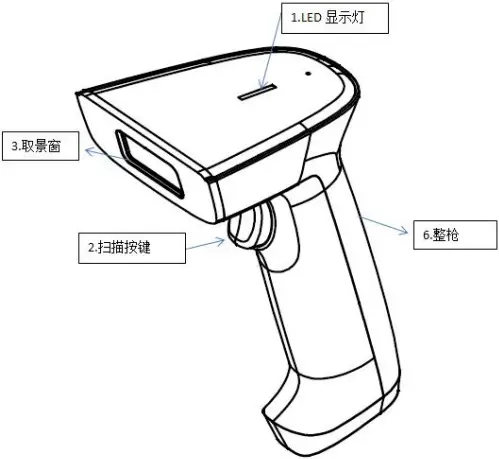

- The following is the description of the device:
1. LED indicator
2. Scanning key
3. Scanning window

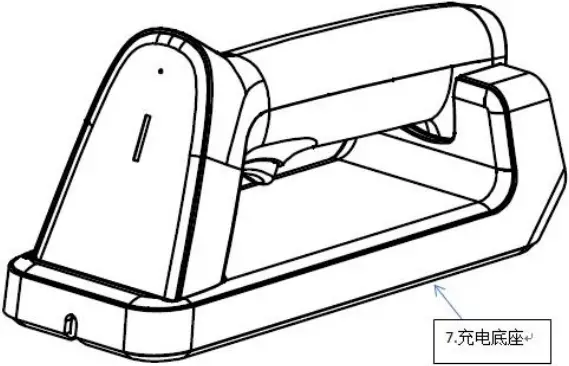

4. Charging base

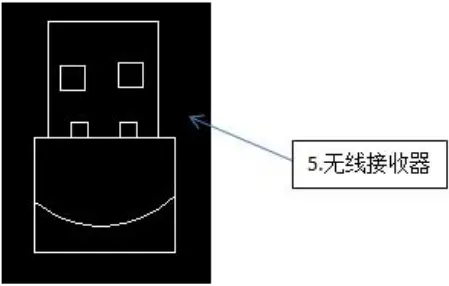

5. Wireless data receiver
6. Barcode Scanner

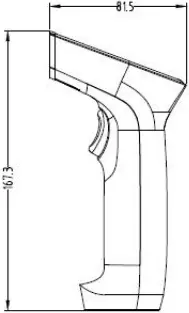

7. Physical Dimension,
. Product Operating Method
A. Charging
- Connect the charging base to USB power port.
- Place Barcode Scanner on charging base, and check the metal contacts between it connected well.
- LED light will be red in charging, and it will be off after fully charged.
B. Scanning Barcode Method
- Connect Data receiver to PC.
- Scan the following pairing setting barcode in turn to make barcode scanner connect data receiver, please finish this operations within 20 seconds after step 1.
2.4G
@Y990703LED1
@Y990100 - When you hear the sound of the beep means paired successful.
- The scanned barcode data will be transmitted to the PC cursor displaying.
C. LED indicator description
The LED1 light blue:
Barcode scanning indicator, and blink once when barcode was scanned successfully
The LED2 light blue:
The connection indicator is steady on.
The Red LED3:
Keeps on when charging, and it off means fully charged or the charging base doesn’t connected the charging cable.
Blue LED1 fast blinking:
It means the barcode scanner in 2.4G pairing state.
. Example Barcode
Scan the following barcode to test the Barcode Scanner or check what kind of barcode the scanner supported in its specification file.
| Code39 Full ASCII | Code 39 Regular |
 |
 |
| Code 93 | Code 93i |
 |
 |
| Code 128 | Datalogic 2-of-5 (China Post) |
 |
 |
| DUN-14 (Interleaved 2 of 5) | EAN-8(UCC-8/JAN-8) |
 |
 |
| EAN-8 | EAN-8 |
 |
 |
| EAN-13 (JAN-13/UCC-13) | EAN-13 |
 |
 |
| EAN-13 | GS1-128(EAN-128,UCC-128,UCC/EAN-128) |
 |
 |
| GS1 DataBar(RSS) (GS1 Databar Omnidirectional) | GS1 Databar Limited |
 |
 |
| GS1 Databar Expanded | IATA 2-of-5(Standard 2-of-5) |
 |
 |
| Industrial 2-of-5 | Interleaved 2-of-5(1-2/5,ITF) |
 |
 |
| ISBN-13(Booklland,ISBN) | ITF-14 (UCC-14) |
|
ISBN 978-0-618-26030-0
|
 |
| ISS Code 128 | |
Español / Français |
|
| Matrix 2-of-5 | MSI Plessey(Modified Plessey, MSI) |
 |
 |
| NEC 2-of-5 | NW-7(2 of 7 Code, AAmes Code, Codabar, Monarch, USD–4, USS Codabar) |
 |
 |
| OPC (Optical Product Code, VCA) | Telepen |
 |
 |
| UK Plessey (Plessey Code) | UPC-A (UCC-12) |
 |
 |
| UPC-A | UPC-A |
 |
 |
| UPC-E | UPC-E |
 |
 |
| UPC-E | Code 11 (USD-8) |
 |
 |
| ISBT 128 | ISBN |
 |
ISBN 978-123456789-7
|
| ISSN | Trioptic |
|
ISSN 1101-5438
|
|
| Pharma | Korea Post |
$12345678$ |
|
| QR | Micro QR |
|
|
|
| PDF417 | Micro PDF 417 |
|
|
|
| PdF427 Truncated(Compact PDF 417) | |
|
|
|
| Data Matrix | Data Matrix |
|
|
|
| MaxiCode | Aztec |
 |
|
| Hanxin Code(Chinese Sensible) | GM(Grid Matrix) |
|
|
|
| Codablock A | Codablock F |
|
Codablock A |
|
