ZINUS MESB-1 Mia Metal Platform Bed Frame Instruction Manual

Zinus SmartBase®
Euro Slats Mattress Foundation

MESB-1 (Twin Size)

MESB-1 Mia Metal Platform Bed Frame

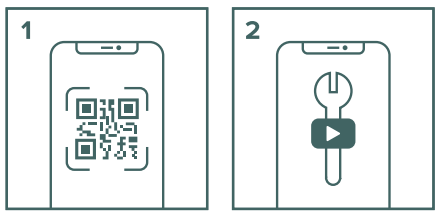

https://youtu.be/kgiHrgu9YCY

1. Prior to installing the kit, remove your mattress, bedding, and any other objects from the top of the platform.
2. Beginning at one corner, use the Allen wrench C to unscrew the 2 bolts connected to the corner. Use the open wrench  D to simultaneously hold the connected nut on the underside of the frame in place as you unscrew the bolt.

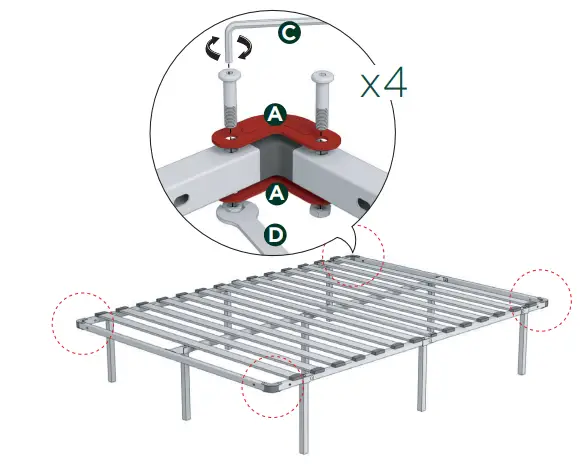

3. Place one corner bracket A on top of the corner of the frame, and a second corner bracket on the bottom of the corner. Secure the brackets in place using the existing 2 bolts and the Allen wrench C to tighten them. Use the open wrench D to hold the 2 nuts in place on the bottom of the bolts as you tighten them. Repeat steps 2 and 3 three more times on the remaining bed corners.

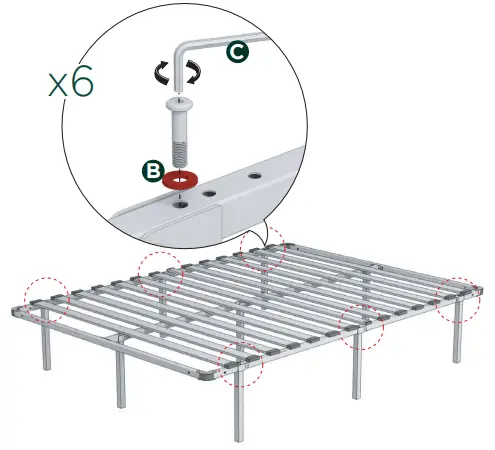

4. Above the side leg, loosen and remove the existing bolt using the Allen wrench C .Insert the bolt into a washer B and use the Allen wrench C to tighten it through the same hole above the side leg. Repeat this step 5 more times for each side leg.

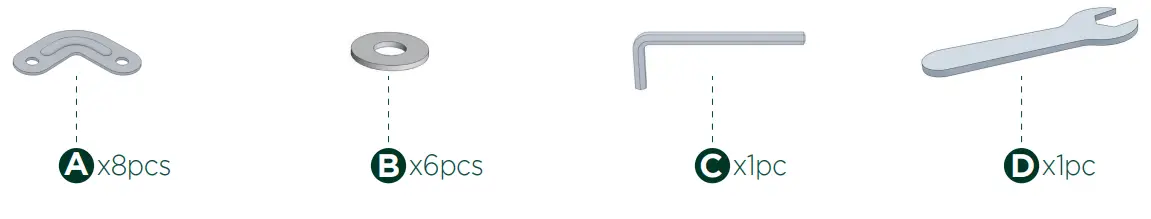

Components
