ROMA LEGNA LED Wall Clock
Owner’s Manual
Contents
ROMA LEGNA LED Wall Clock
WC05/MDF – series backlit with colourful RGB LEDs – with APP control
product description:
LED wall clock ROMA in wood with Retro 3D effect
- Dial: made of 12mm thick anthracite-black impregnated wood fiberboard MDF; with CNC cut Roman numerals
- Front cover plate: made of 6mm MDF wood laminate board with grains; inserted flush into the dial
- Hour and minute hands: made of real zebra wood
- Light frame: 8mm transparent outer plastic ring frame with built-in RGB LED strip throughout; Installed at the back with a 2.0 m long 5VDC power cable.
lighting and control
- Buil-in colourful RGB LEDs 5VDC / 10W
- Controllable with APP via smartphone Bluetooth (APP download and pairing via QR code scan)
Top plate colour and size variants

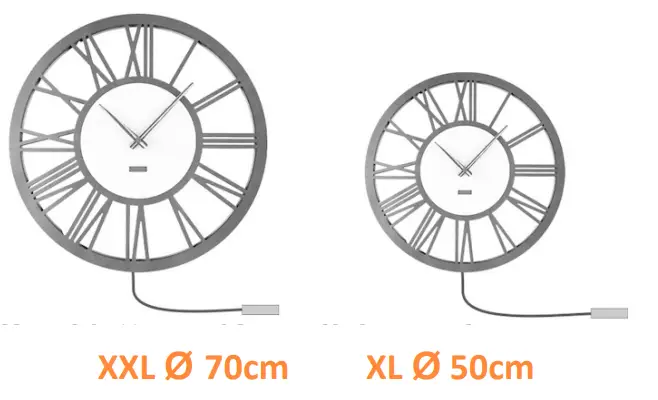

- RUND XL Ø 50cm und XXL Ø 70cm round
- WALNUSS BRAUN walnut brown
- WALNUSS SCHWARZ walnut black
- AHORN WEISS maple white
dimensions and weight
| WC05/MDF – | Produkt product | packaging | ||
| “ROMA MDF” | dimensions: | weight: | dimensions: | weight: |
| RUND round XL: | Ø50 x 3.9 cm | 1.55 Kg | 55 x 55 x 5 cm | 2.18 Kg |
| RUND round XXL: | Ø70 x 4.4 cm | 3.05 Kg | 75 x 75 x 5 cm | 3.96 Kg |
Includes mounting accessories:
- Bluetooth APP signal receiver USB connection cable
- Standard 5VDC/3A (=15W) power supply with USB connection and EURO plug
- Set of 1 screw and dowel for wall mounting
Attention: Not included in delivery scope:
- 1x 1.5V AA mignon battery (for operating the clock work!)
- Additional wall spacer frame with 4 screws as a spacer frame
- Installation Guide and QR code for APP scanning
https://www.easytrack.net.cn/download/111SHENZHENSHUANGHONGYUAN
Easy wall installation:
- Wandaufh~ngung
- Cable gland
- App Installation and Bertie

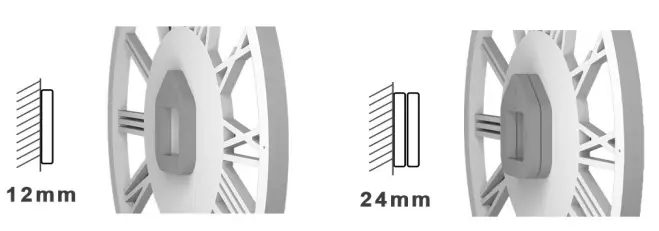

Optional: For eigen Unterscheidlichen Licht- und Schattenefect Kannan the Mitzeliferte Bond-Obstancesrahman Hinzugefaction Burden:
 |
|

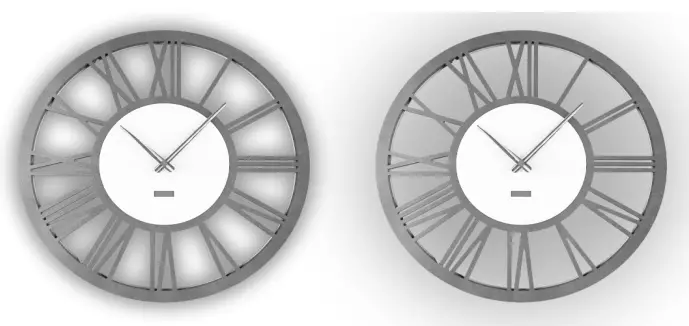

| Effects such as Distance-Rahman: | Effect Meet Distance-Rahman: |
Cleaning instructions: please do not clean with wet towels!!
ZEN LICHTTECHNIK GmbH Schloesslieweg 10/1
0-89231 Neu-Uim-—Germany
[email protected]
www.zen-led.com
