ZEB
Power Bank
MB10000S6
User Manual
www.zebronics.com
Contents

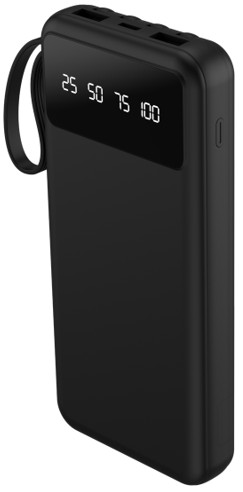

MB10000S6 ZEB Power Bank
Thank you for purchasing ZEB- MB10000S6 Power bank. Please read this user manual carefully before operation & save this user manual for future reference.
Note :
- Avoid the usage of this product at high temperature and high -humidity environments.
- Avoid the self-disassembling of the product or it will result in voiding the Product’s warranty.
- Please charge the power bank with power adapter rated DC 5V/2A.
Caution :
There is a risk of explosion if the product is disposed of in the fire.
To know more about Terms and conditions for warranty policy, please visit https://zebronics.com/pages/warranty-policy

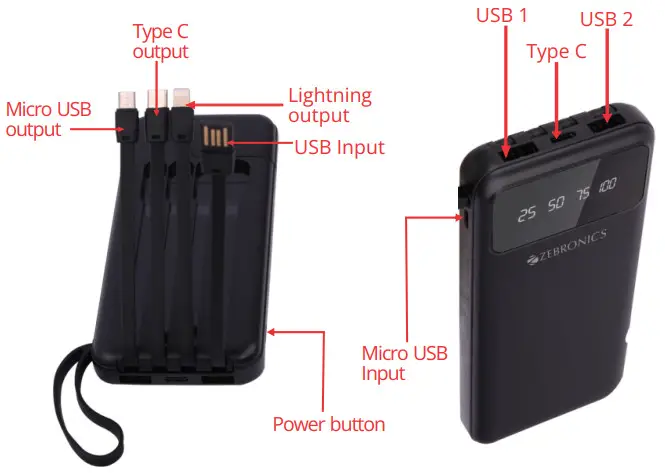

Features :
5 x Output (USB A x2 / TYPE C / Micro USB / Lightning output)
3 x Input (USB A / TYPE C / Micro USB inputs)
Percentage LED Display
Mobile/Tablet Compatible
Type C & Micro USB Input
Over Charge Protection
Overload Protection
Short Circuit Protection
Carry loop
Mobile holder
Specifications :
| Battery Capacity | : 10000mAh |
| Input (USB) | : DC 5V/2A |
| Input (Type C) | : DC 5V/2A |
| Input (Micro USB) | : DC 5V/2A |
| Output 1(USB A) | : DC 5V/2A |
| Output 2(USB A) | : DC 5V/2A |
| Output 3(Type C) | : DC 5V/2A |
| Output 4(Lightning) | : DC 5V/2A |
| Output 5(Micro USB) | : DC 5V/2A (total 2A max) |
| No.of Output | : 5 |
| Charging Time | : 5 – 6h |
| Product Dimension | |
| (W x D x H) | : 7.2 x 14.6 x 2 cm |
| Net Weight | : 244g |
Package contents :
Power Bank : 1 U
Charging Cable : 1 U
QR Code Guide : 1 U
Charging instructions
Please charge the power Bank with power adapter rated DC 5V/2A.
Charging your Device with the Power Bank
- Connect your device with the Type C /Micro USB / lightning end of the cable and connect the other end of the cable to the power bank USB Outputs port.
- Else for charging your device without external cable you can use the Type-C / Micro USB / Lightning output cable attached to the power bank.
Note: Simultaneous Usage of the power bank output provides standard 5V DC output.
