ZALMAN Z10 ATX MID Tower Computer Case User Manual

ZALMAN Z10 ATX MID Tower Computer Case

Precautions

• Read this manual carefully before installing.
• Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
• Wear gloves to prevent accidents when installing the product.
• Severe damage may occur when mounting the system, so do not apply excessive force.
• Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
• Be careful not to block the ventilation hole of the product when using the system.
• Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
• Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
• Do not insert your hand or other object into the product during operation, as this may injure your hand or damage the object.
• Store and use the product out of children’s reach.
• Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
• The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.

Specifications

Model		Z10	Z10 Plus	Z10 Duo
Case Form Factor		ATX Mid-Tower
Dimensions		481 x 220 x 488(H)mm
Weight		8kg	8.1kg	9kg
Case Materials		Plastic, Steel, Tempered Glass
Motherboard Support		ATX / mATX / Mini-ITX
Maximum VGA Length		395mm
Maximum CPU Cooler Height		173mm
Maximum PSU Length		200mm
PCI Expansion Slots		7
Case Drive Bays	3.5″	2 (1 x Cage Combo, 1 x Guide Toolless)
	2.5″	2
Fan Support	Top	3 x 120mm, 2 x 140mm
	Front	3 x 120mm, 3 x140mm
	Rear	1 x 120mm
	Bottom	2 x 120mm
	Side	2 x 120mm
Fan(s) Included	Front	3 x 140mm Black Fan	3 x 140mm ARGB Fan	3 x Infinity LED
	Rear	1 x 120mm Black Fan	1 x 120mm ARGB Fan	1 x Infinity LED
Radiator Support	Top	120mm / 140mm / 240mm / 280mm / 360mm
	Front	120mm / 140mm / 240mm / 280mm / 360mm
	Rear	120mm
Dust Filter	Top	Magnetic PVC
	Bottom	Slide PVC (With Frame)
I/O Ports		2 x USB3.0, 1 x USB Type-C, HD AUDIO, MIC, PWR, Reset, LED Button

Accessories component

I/O Ports

#	Part	#	Part	#	Part	#	Part
ⓐ	Power Button	ⓑ	Reset Button	ⓒ	HDD / Power LED	ⓓ	Headphone Jack
ⓔ	Microphone Jack	ⓕ	USB 3.0 Ports	ⓖ	Type-C	ⓗ	Led Button

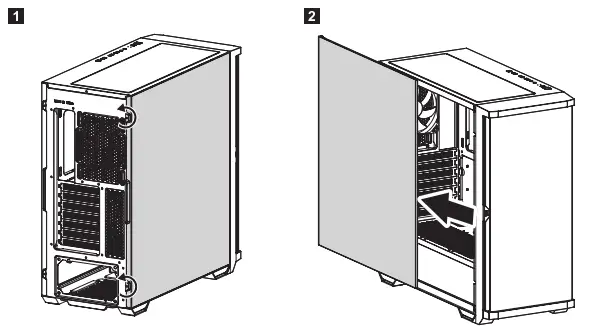

1. Removing the side panels

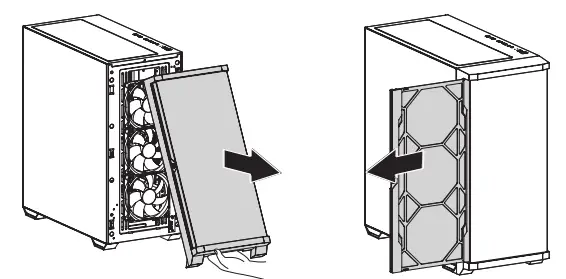

2. Removing the front panel

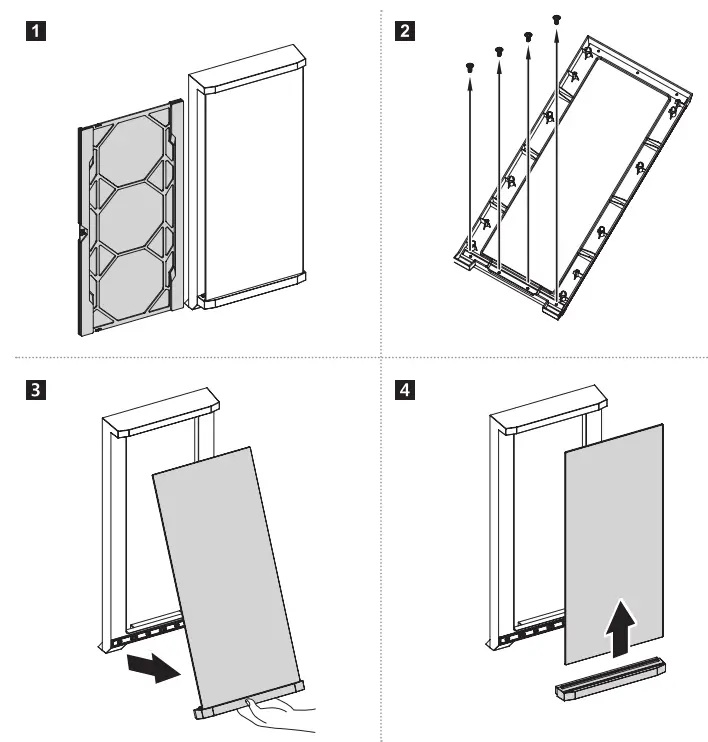

   • Removing the front dust filter
   • Front Bezel

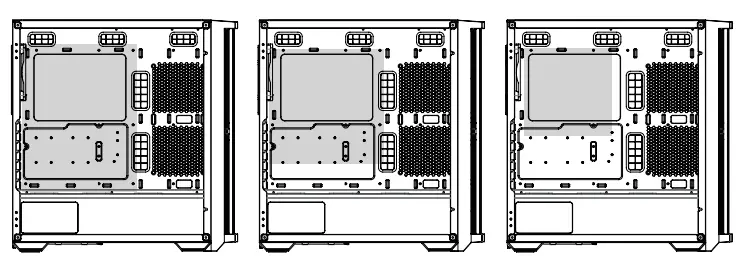

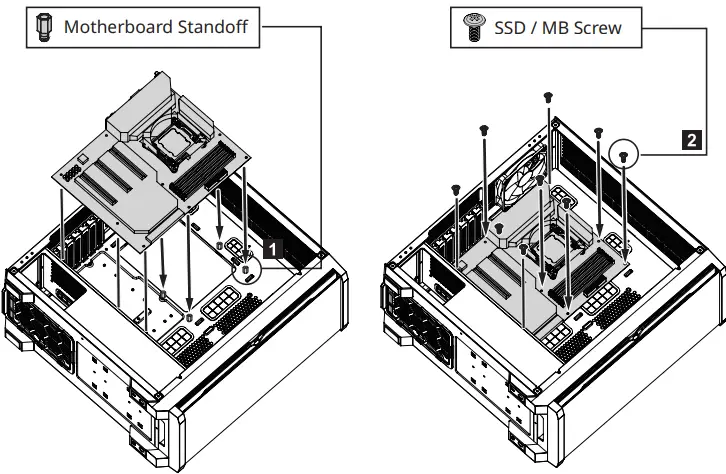

3. Mounting the motherboard
   • Motherboard size
   • ATX
   • mATX
   • Mini-ITX

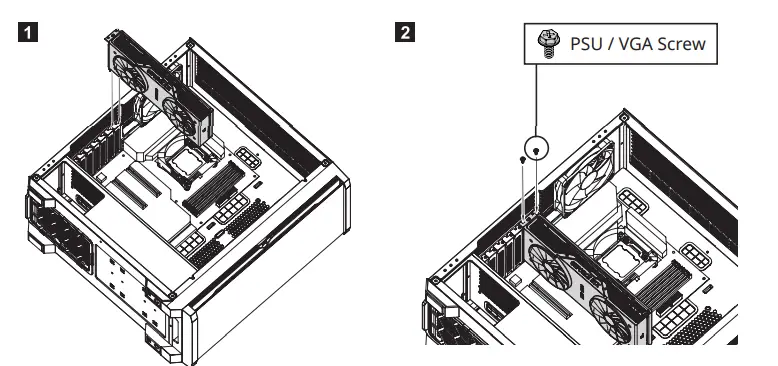

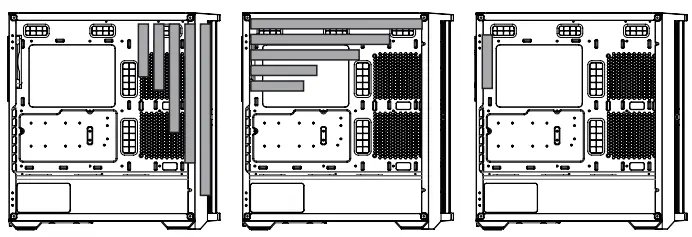

4. Mounting PCI-E(VGA) card

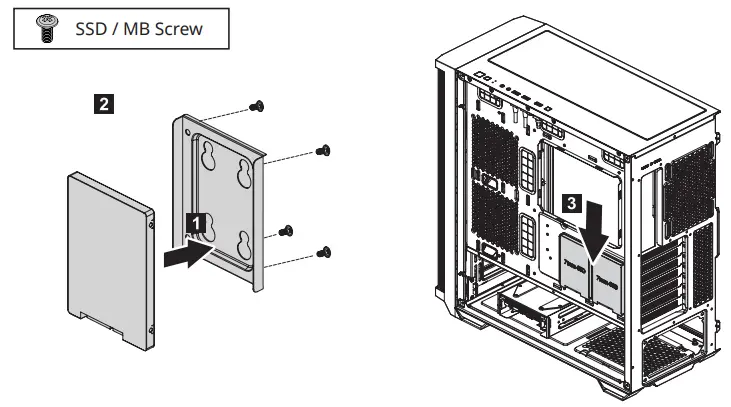

5. Mounting the 2.5″ SSD

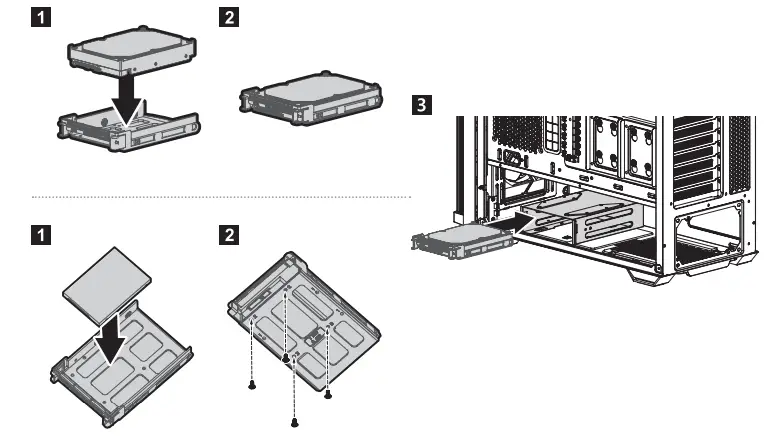

6. Mounting the 3.5″ and 2.5″ SSD / HDD

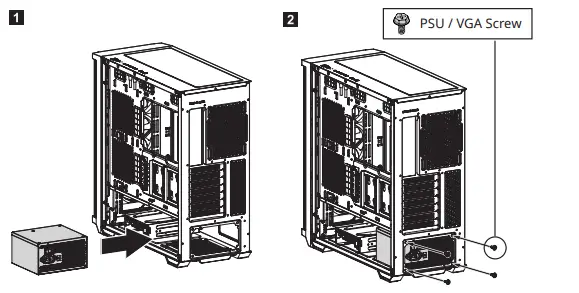

7. Mounting the PSU
8. Mounting the radiator
   1. Mounting the front radiator
      • 120mm / 140mm / 240mm / 280mm / 360mm
   2. Mounting the front radiator
      • 120mm / 140mm / 240mm / 280mm / 360mm
   3. Mounting the rear radiator
      • 120mm
9. Mounting the fans
   1. Mounting the front fans
      • 3 x 120mm, 3 x 140mm
   2. Mounting the top fans
      • 2 x 120mm, 2 x 140mm
   3. Mounting the rear/bottom/ side fan
      • 1 x 120mm / 2 x 120mm / 2 x 120mm

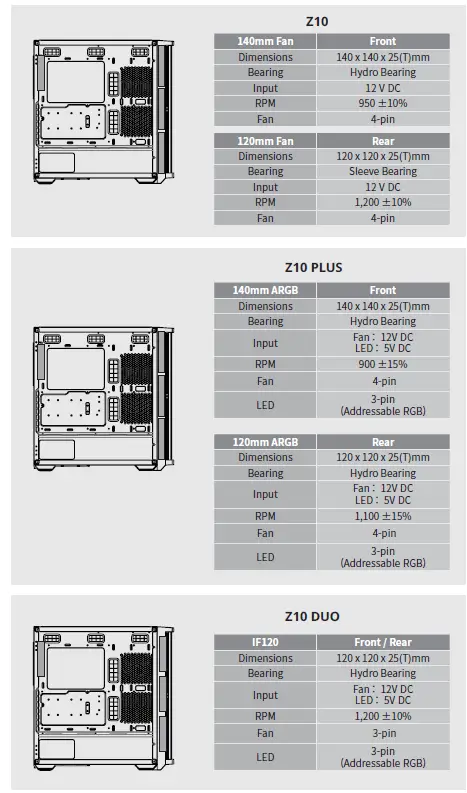

Fan(s) Included / Fan Specifications

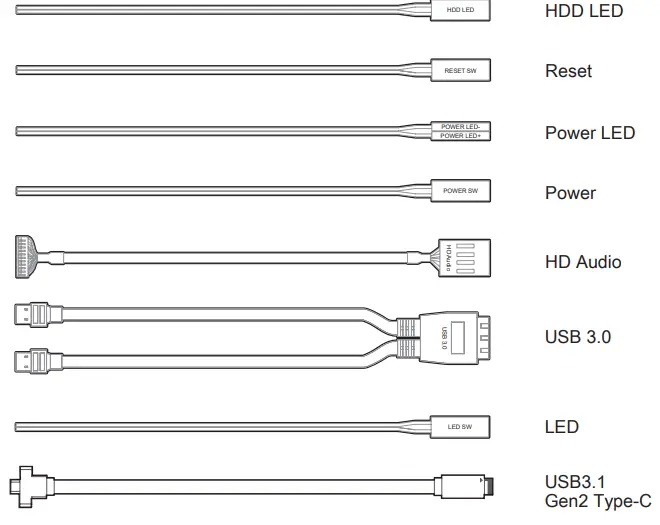

I/O Connectors

Certification

• This mark, designed by Zalman, indicates product compliance with the European Union’s RoHS (Restriction of Hazardous Substances) Directive.
• Disposal of Old Electrical& Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)
• Zalman Tech Co., Ltd.

• #2612, Obiztower, 126, Beolmal-ro, Dongan-gu, Anyang-si, Gyeonggi-do,14057, Korea
• www.zalman.com
