YHDC SCT010L-D Split Core Current Transformer User Guide

YHDC SCT010L-D Split Core Current Transformer

Product Information

Specifications:

• Model: SCT010L-D
• Characteristic: Safety lock buckle, easy installation, cable output
• Technical Index:
  • Output/housing AC: 3.5KV/1min 50Hz
  • Rated Input: 5A
  • Rated Output: 10/20/30/50 V DC
  • Accuracy: 1/3/5%
  • Phase Shift: 184 – 45 +8IJUF
  • Weight: 26 – 34 – 10
  • Length of Cable: 100cm – 105cm
  • IP Rating: -3FE
  • Voltage Output Type: g (Secondary is not allowed to short circuit)
  • Opening Angle: 50 – 6 – 2.6

Product Usage Instructions

Installation:

1. Ensure the safety lock buckle is engaged before installation.
2. Connect the cable output securely.
3. Place the product in the desired location and secure it properly.

Electrical Connection:

1. Connect the input and output cables as per the rated values mentioned.
2. Avoid short-circuiting the secondary voltage output.

Maintenance:

1. Regularly check the cable connections for any wear or damage.
2. Clean the product surface with a dry cloth to remove any dust or debris.

FAQ:

• Q: Can I shorten the cable length?
  A: The cable length should be maintained between 100cm to 105cm for proper functioning.
• Q: What should I do if the safety lock buckle is not engaging?
  A: Ensure that the installation is done correctly and contact customer support for assistance if needed.

SCT010L-D

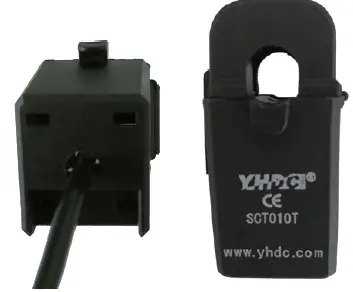

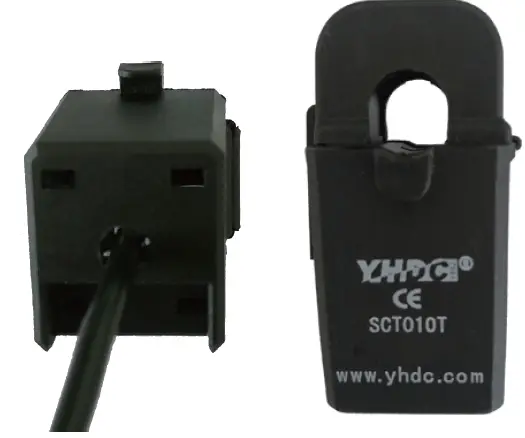

Product picture :(the printed words are for reference only, subject to the actual product)

Characteristic

Safety lock buckle, easy installation, cable output.

Technical index

• Mounting type: Free hanging (In-Line)
• Material of core：Ferrite
• Applicable standards：GB20840-2014
• Operating temperature：-25℃～+60℃
• Storage temperature：-30℃～+90℃
• Frequency range：50Hz-1KHz
• Dielectric strength：Input (bare conductor)/Output AC 800V/1min 50Hz
• Output/housing AC 3.5KV/1min 50Hz

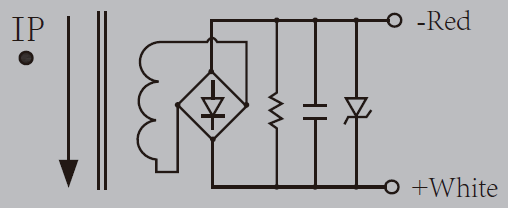

Electrical parameters

(The following parameters are typical values and actual values will be subject to product testing）

Rated input	5	10	20	30	50	A	Specifications of cable: 2 x 0.2mm² two core sheathed cable The length of cable: 100cm~105cmVoltage output type Secondary is not allowed to short circuit
Rated output	1/3/5					V/ DC
Accuracy	2					%
Phase shift	≤184 ′					′
Weight	45					g

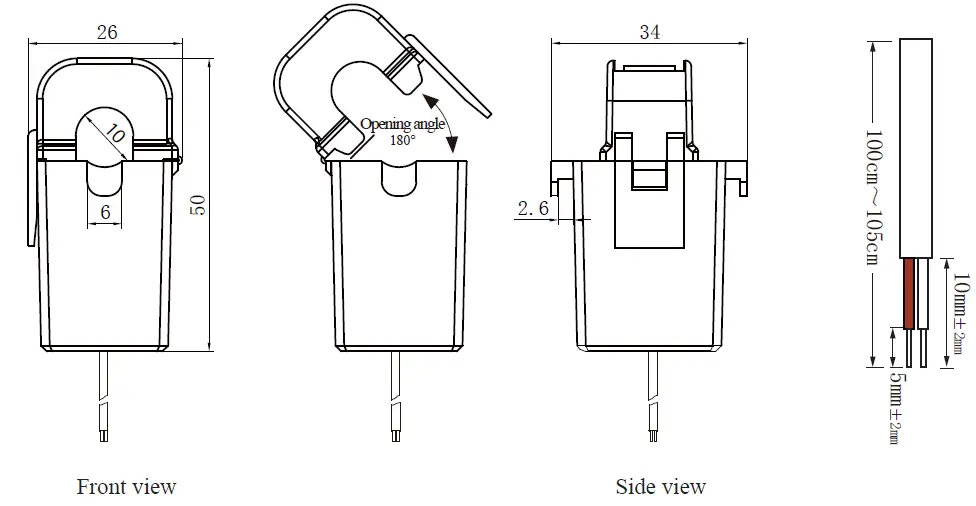

Dimensions（in mm±0.5)
