YAMAHA IN-TSK-Y-RMAX-007 Plug and Play Turn Signal Kit
Contents
INSTALLATION INSTRUCTIONS
for CFMOTO UFOCE 1000
- Do not discard packaging until product has been successfully installed.
- Components may be installed in locations other than where shown. Alway verify wire harness length.
- While routing, follow factory wiring when possible.
- Use provided dielctric grease on all connections.
- Always consult labels on Harnesses when making connections.
- Avoid rotating or hot components when securing.
- Before drilling any holes, check behind area to be drilled for any interference.

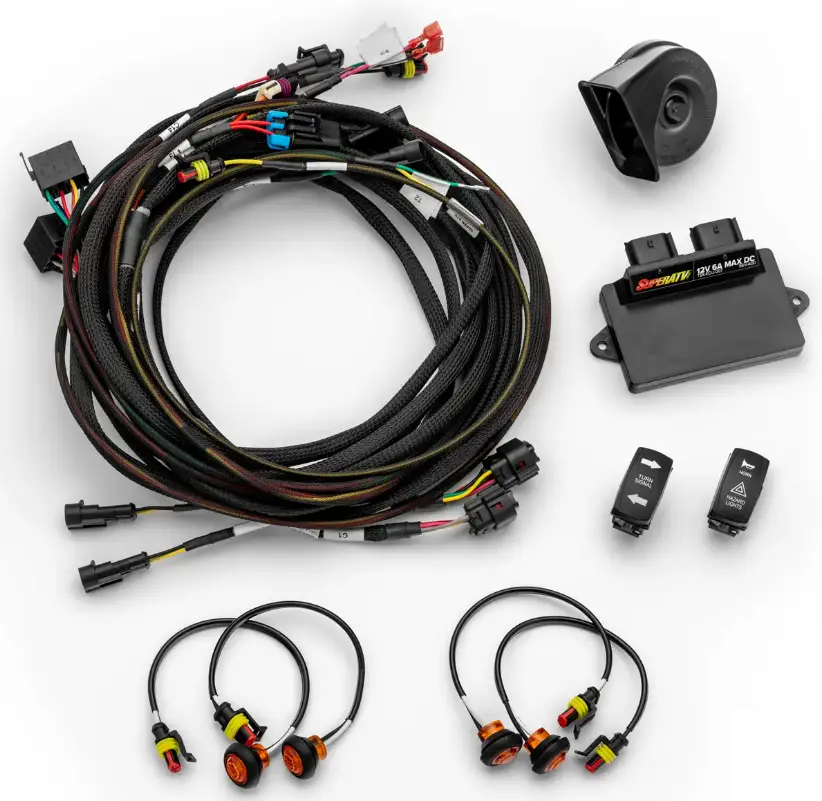

Plug and Play Turn Signal Kit:
- ECU
- Horn Kit
- Turn Signal Switch
- Hazard and Horn Switch
- Wire Ties
- 4x – LED Signal
to rear of machine
- to Left Rear Tail Light
- to Right Rear Tail Light
- to License Plate Light (opt)
- to Turn Signal Switch
- to Horn / Hazard Switch
- to ECU
- to Horn
- to LED’ s
- green and black wires = right yellow and black wires = left
Remove Accessory Panel
Rear
- Plug in Harness and secure ECU to Accessory Panel with hardware shown; tighten.
- Locate stock connector shown.
Before drilling any holes, check behind area to be drilled for any interference.
LED Signals:
- User may install in locations different than shown.
- Drill a Ø3/4” hole in body and install LED Signal. Repeat for remaining LED Signals.
- Plug LED Signals into corresponding inputs on Harness.
- Secure all Wires as needed.
If Light is hard to insert separate as shown.
- Separate LED from Gasket.
- Install Gasket into hole.
- Install LED into Gasket
Horn
- User may install Horn in location different than shown.
- Install Horn to Bracket.
- Connect Harness to Horn.
- Secure to location shown; tighten.
Super ATV recommends testing Switches before permanently mounting.
- Connect Harnesses to Switches.
- Secure Switches.

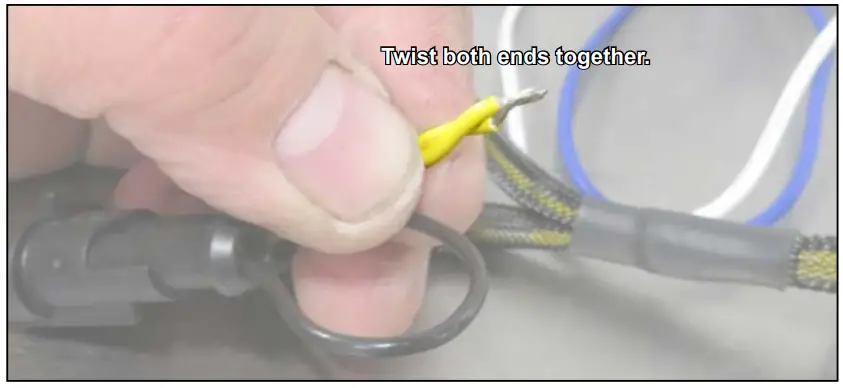

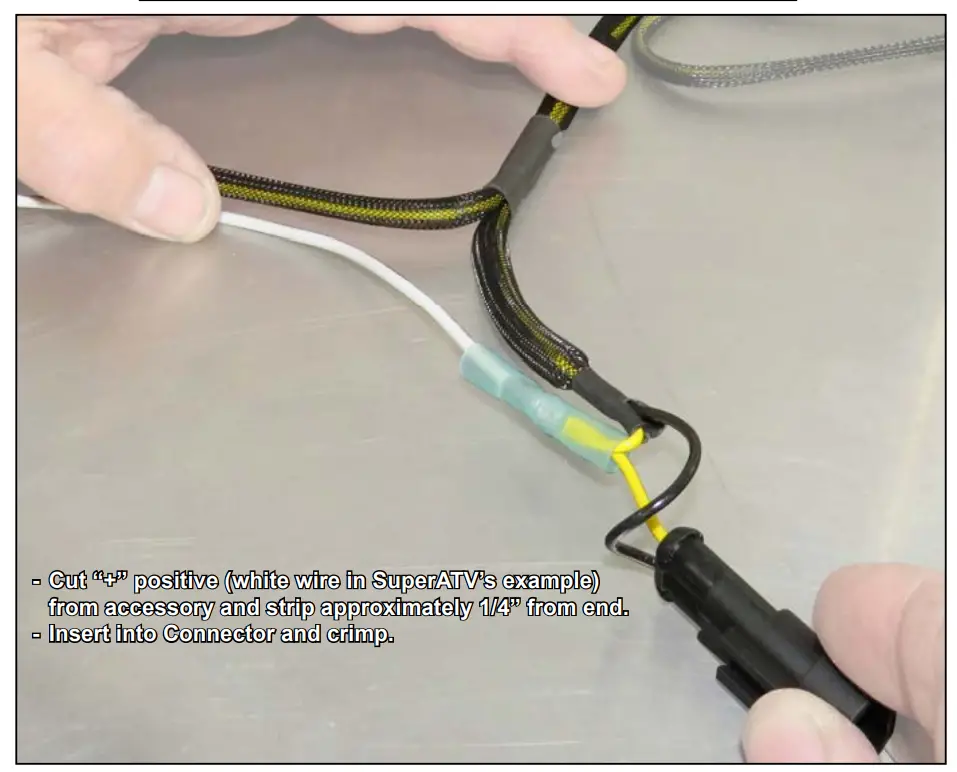

Accessory to Turn Signal Kit Wiring
Left Turn Signal Harness shown in illustrations.
Super ATV recommends using a handheld mini torch, or lighter, to activate heat shrink on Connector.
