RGB LED Wall Clock
Manual
Contents
XZT80-1 RGB LED Color Clock
SUITABLE FOR LIVING ROOM/OFFICE/CLASSROOM/HOSPITAL/SUBWAY PLASCES
RGB LED Colour Clock
(11-colour digital display, 25 music ringtones, can be hung or placed, 2 sets of alarm clocks, Countdown voice reminder)
Thank you for your purchasing , Please read instruction before set up.
| Product size: | W330xH130xD30mm |
| Product weight: | 873g (excluding the power adapter) |
| Alarm sound: | 25 Music Ringtones |
| Timer Range: | 99 hour 59 minutes 59 seconds |
| RGB LED light color: | 11-color number display |
| Alarm clock: | 2 sets of alarm clocks |
Back buttton functionality
| LED Digital Color Selection Alarm ring: snooze function (9 minutes) Timer Mode: Start/Pause Timing |
|
| Settings: week selection, DST ON/OFF, time setting for year ,month, day Timer mode: Hour setting |
|
| +: 12/24 hour format switching Timer Mode: Minute Setting |
|
| -: °C/°F switching Timer Mode: Seconds setting |
|
| 25 ringtone selection keys | |
| Alarm 1 ON/OFF | |
| Alarm 2 ON/OFF | |
| Enter/Exit Timer | |
| Timer Reset | |
| Ringtone Volume Adjustment | |
| Turn on/off for Timer 10-second countdown voice announcement |
|
| 3rd gear brightness push button |
Weekday language, DST, year, date, and time setting
- Press the “SET” button to enter the settings. After entering, the screen flashes “ENG’, press “+” or “-” to select other language for the week.
- ress “SET” button again, then Turn ON/OFF DST by pressing “+”or”-” button. Set the year, date, and time separately by using the “+” “-“, and “SET” buttons.
- Once the setup has completed, treat “SET” button as “Confirm” button.
Switch display between date and temperature
- Long press the “+” button for 2 seconds to enter the switch settings.
- Press the “+” or “-” keys to select different display modes.
- After selecting, press “SET” to return to the time display.
Setting two alarms.
- Long press the “Alarm 1” or “Alarm 2” button on the back for 2 seconds to enter the setting for “Alarm 1″ or “Alarm 2” respectively.
- The “OFF” at the top of the screen is flashing. Press “+” or “-” to turn the alarm ON/OFF, then press “SET” to confirm.
- Set the alarm time by pressing “+” or “-” and then press “SET” to confirm.
Alarm ON (screen icon displayed)
Alarm OFF (screen icon not displayed) - Select the alarm working day mode setting by pressing “+” or “-“, and then press “SET” to confirm.IE: Every day.
2E: Weekdays (Monday to Friday)
3E: Weekend (Saturday-Sunday) - Press “+” or “-” to select the alarm ringtone, and then press “SET” to confirm.(1-25 ringtone options available)
- After making the selection, press “SET” to return to the time display.
<Stop the noise with one click>
The alarm clock goes off, and pressing any button except the “snooze” button will stop the alarm. It will ring again at the same time on the next day.
<Snooze function>
The alarm clock rings, press the “snooze” button, the alarm clock stops, and the snooze function is activated. It will ring again after 9 minutes.
The alarm clock rang.
It will ring after in 9 minutes.
Timer Functionality
*-T1 Timing range: 00:00:00-99:59:59.
*-Automatically save the last timing when starting up (with a memory battery).
*-While the timer is working, you can switch between the timer interface and the display time interface. When the timer starts the 10-second countdown voice announcement, the screen will automatically switch to the timer interface! (The 10-second countdown voice announcement function can be turned on and off by the buttons on the back panel.)
<Count Up setting>

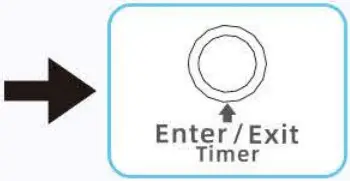

- Press the “Timer” button to enter the timer mode.
- Press the “snooze” button to start/stop.
- Press the “Timer Reset” button to reset it to zero.
<Count Down setting>
- Press the “Timer” button to enter the timer mode.
- Press “Timer Reset” to reset to zero.
- Set a corresponding time unit on each button.
- Press the “Snooze” button to start/stop.
- Press the “Timer Reset” button to reset it to zero.
- After pressing the “Timer” button, the time display will return.
<Countdown voice reminder function>

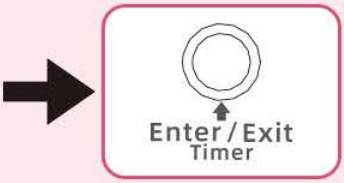

- Press the “Timer” button to enter the timer mode.

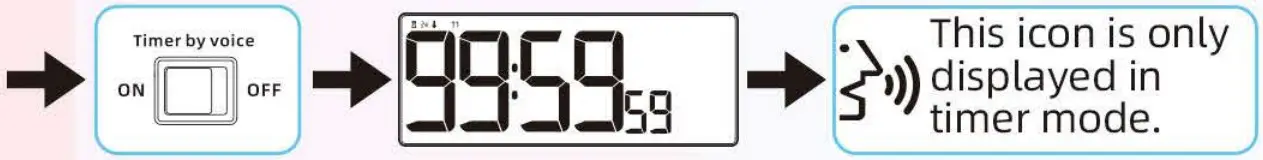

- Press the voice ON/OFF button at the bottom of the back of the device, and the countdown screen will display/hide the voice icon in the top left corner.
Ringtone Music Settings and Volume Adjustment

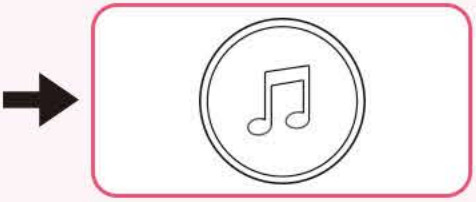

- Select ringtone music by pressing the “Music” utton on the back.
After selecting a ringtone, press the “Music” button to return to the time interface. - To choose a different ringtone music, you need to press the “Music” button on the back again to select the next ringtone music.

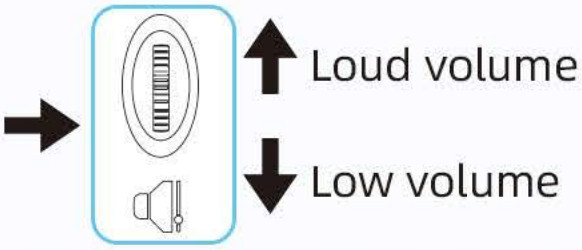

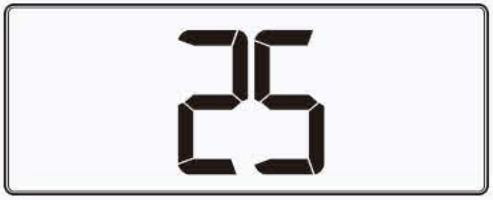

(25 ringtone music pieces) - Adjust the volume by sliding the wheel up or down on the “Volume Controller” on the back to adjust the volume to different levels.

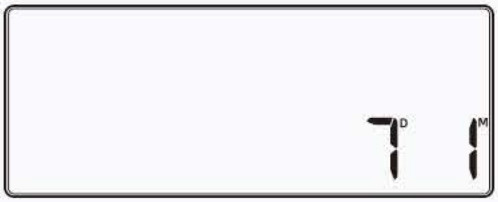

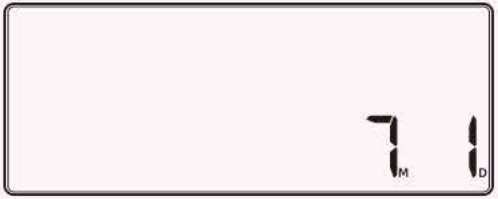

Switch date display formate: month/day formate or day/month formate
- Before installing the memory battery, hold down the “SET” key and insert the power supply to enter the settings.
- Select the date display format (month/day or day/month) by pressing “+” or “-“.
- After completion, turn off the clock’s power supply and then turn it back on to perform other settings.

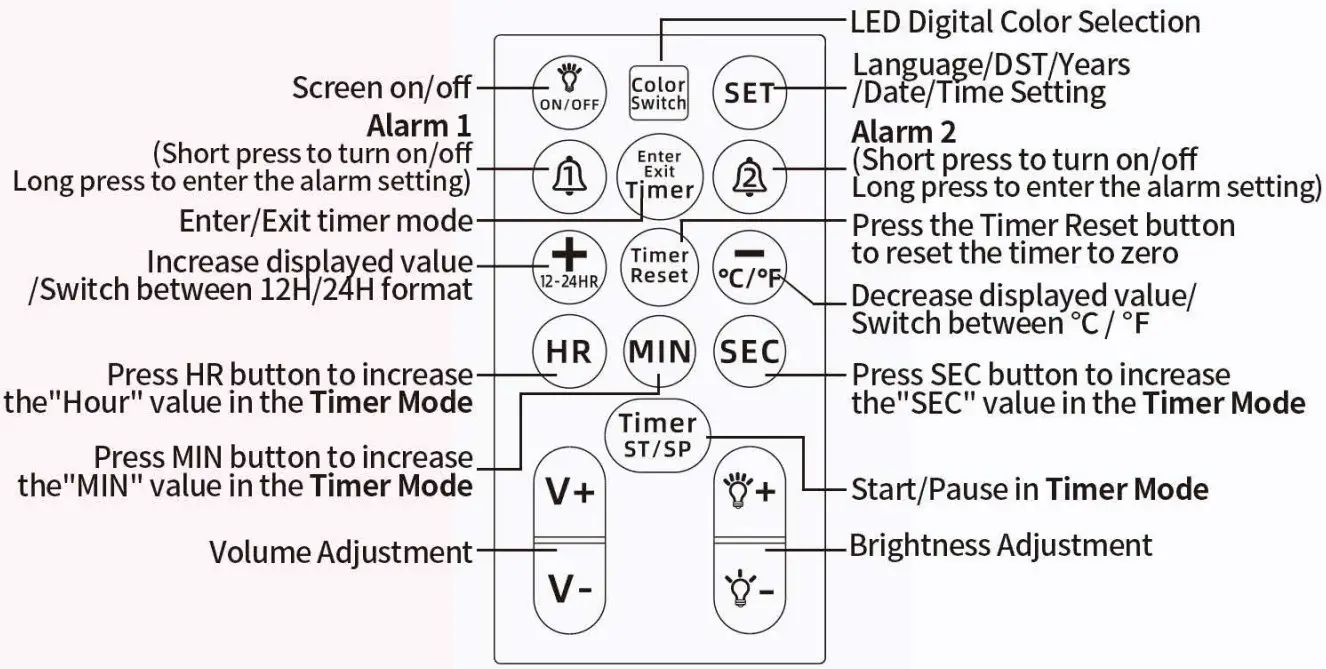

Large Digital Wall Clock with Remote Control
The (Timer ST/SP) button used as “SNOOZE” function in alarm mode; Press any other buttons to stop the alarm.
