MANUAL
XE120 ESSENTIAL
Contents
SPECIFICATIONS
 |
20.000 mAh Li-ion / 74Wh |
 |
1x USB-C 15W (5V-3A) 1x USB-A 15W (5V-3A) |
 |
142x68x28 mm |
 |
425 grams |
 |
1x USB to USB-C cable 1x Manual |

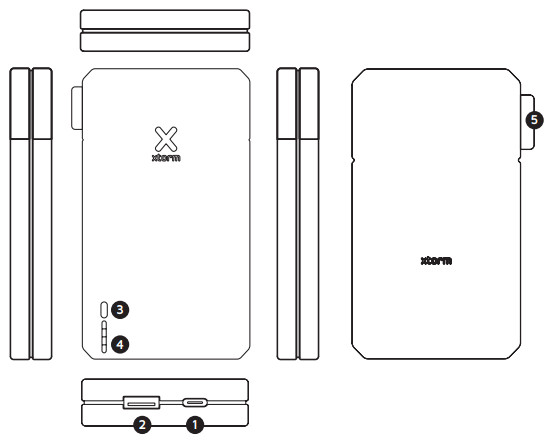

PRODUCT OVERVIEW
- In/Output USB-C 15W
- USB 15W
- Power Button
- LED Power Indicator
- Official Xtorm Label

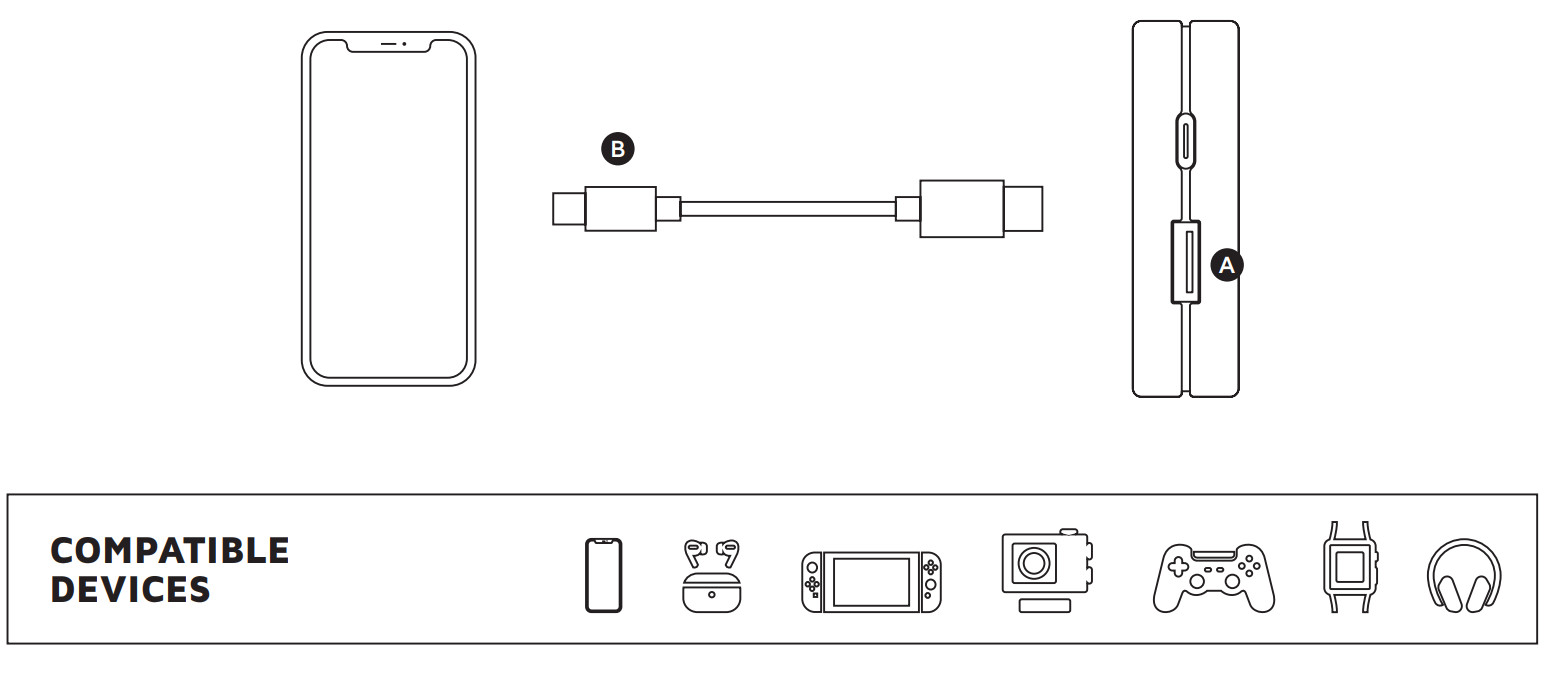

CHARGING YOUR DEVICE
3A Connect the USB end of the charging cable to the USB-A output of the Power Bank
and the other end to the input of your device. The charging will start automatically.
3B Charging some devices requires a charging cable other than the one supplied.
E.g. an Apple Lightning® or a Micro USB cable.

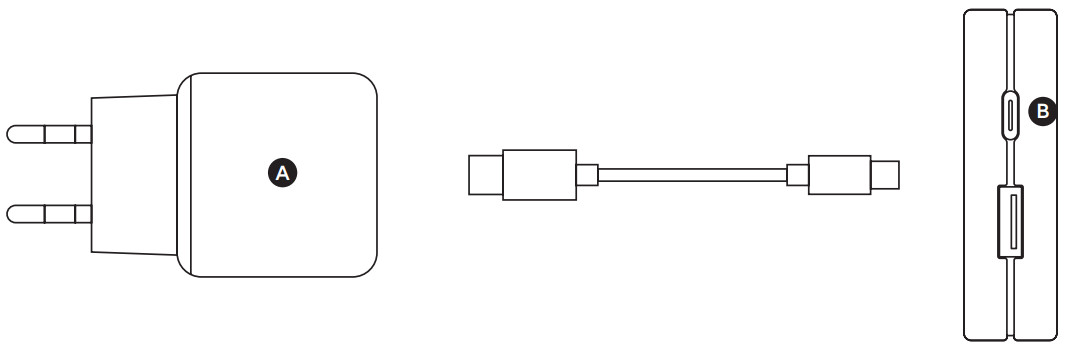

RECHARGING THE POWER BANK
4A Connect the USB-C end of the charging cable to output 1 of the Power Bank and the USB end to a wall charger.
4B For the fastest charging possible use a 15W charger. This will fully recharge the Power Bank within 8 hours.
LED POWER INDICATOR
5A Press the Power Button once to display the battery level remaining in the Power Bank via the LED display.
5B Each lit LED light indicates 25% remaining energy in the Power Bank. At 4 lit lights, the Power Bank is fully charged.

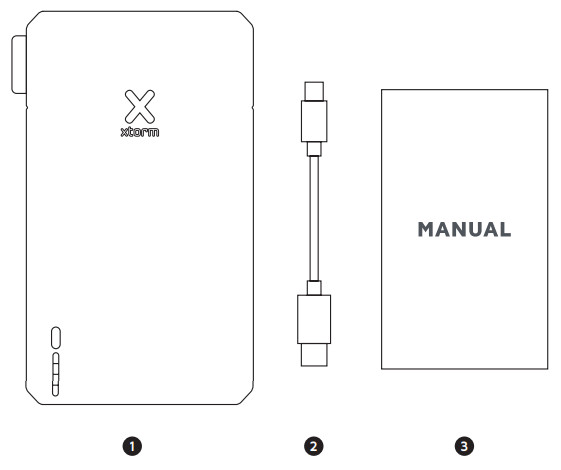

IN THE BOX
- XE120 Essential Power Bank
- USB to USB-C cable
- Manual
RECYCLING
When recycling this product, please follow WEEE battery recycling procedures. Contact your local recycling organization for more information.
XTORM SAFETY CHECK
| 1. TEMPERATURE CONTROL Provided with a temperature control chip that prevents overheating. |
|
| 2. OVERLOAD PROTECTION Protects both the internal battery as well as the battery of the attached device from overcharging. |
|
| 3. SECURED POWER MANAGEMENT Automatically picks the correct charging speed and efficiently devides power between attached devices. |
|
| 3. SECURED POWER MANAGEMENT Automatically picks the correct charging speed and efficiently devides power between attached devices. |
|
| 3. SECURED POWER MANAGEMENT Automatically picks the correct charging speed and efficiently devides power between attached devices. |
|
| 3. SECURED POWER MANAGEMENT Automatically picks the correct charging speed and efficiently devides power between attached devices. |
WARNINGS
Warnings
Don’t drop, dissemble or attempt to repair the charger by yourself.
Avoid exposure to water or high humidity. Don’t expose to any heasource. Keep out of reach of children. Don’t use in the presence of flammable gas. The warranty will lapse in the event of improper use. Telco Accessories has tested the product in a test environment. All statements/declarations made by Telco Accessories about the (operation) of the product are based on the results obtained from such tests. These results/statements/declarations cannot be guaranteed, for example in cases of deviating or injudicious use and/or use in a different environment.
HIGHER QUALITY
= LOWER IMPACT
CUSTOMER SUPPORT
[email protected]
TELCO ACCESSORIES GROUP
Hoofdveste 19, 3992DH Houten
+31 (0)30 635 4800
The Netherlands
