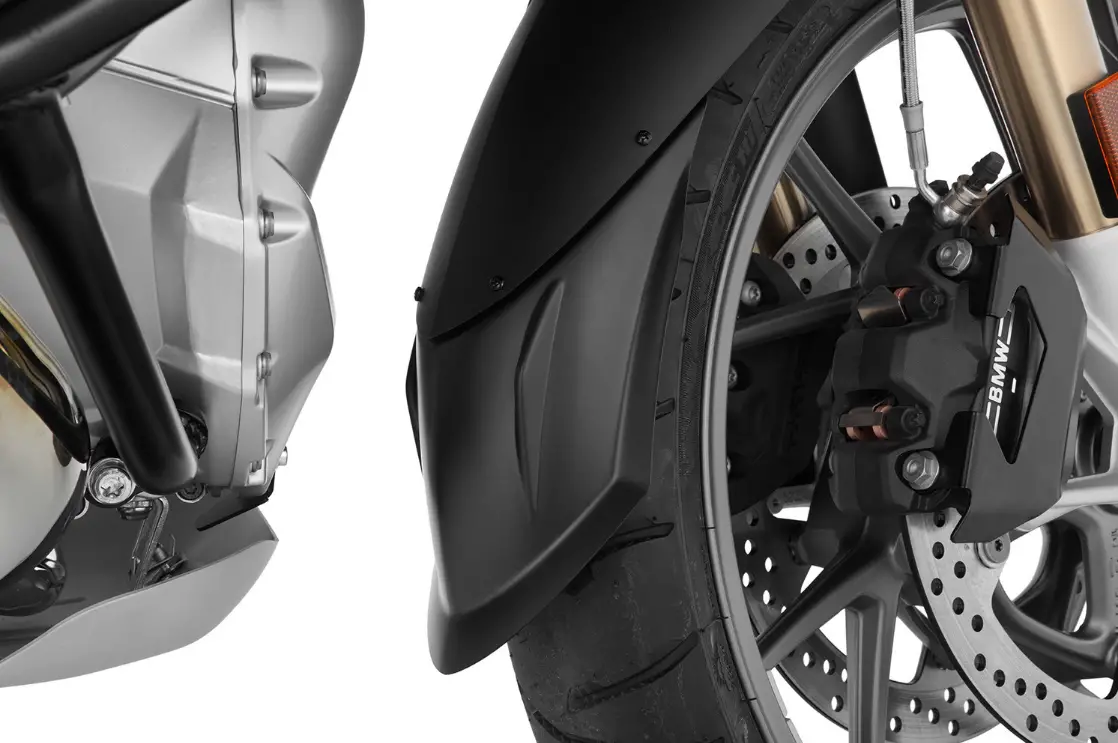

Wunderlich BMW R1200 RS Fender Extender
Specialist and expert knowledge is indispensable to carry out the assembly, special tools may also be required. If in doubt, the installation should be carried out by a specialist workshop
Overview
| # |
component EN The colors are for illustrating purposes only.
|
DIN | ISO | quantity |

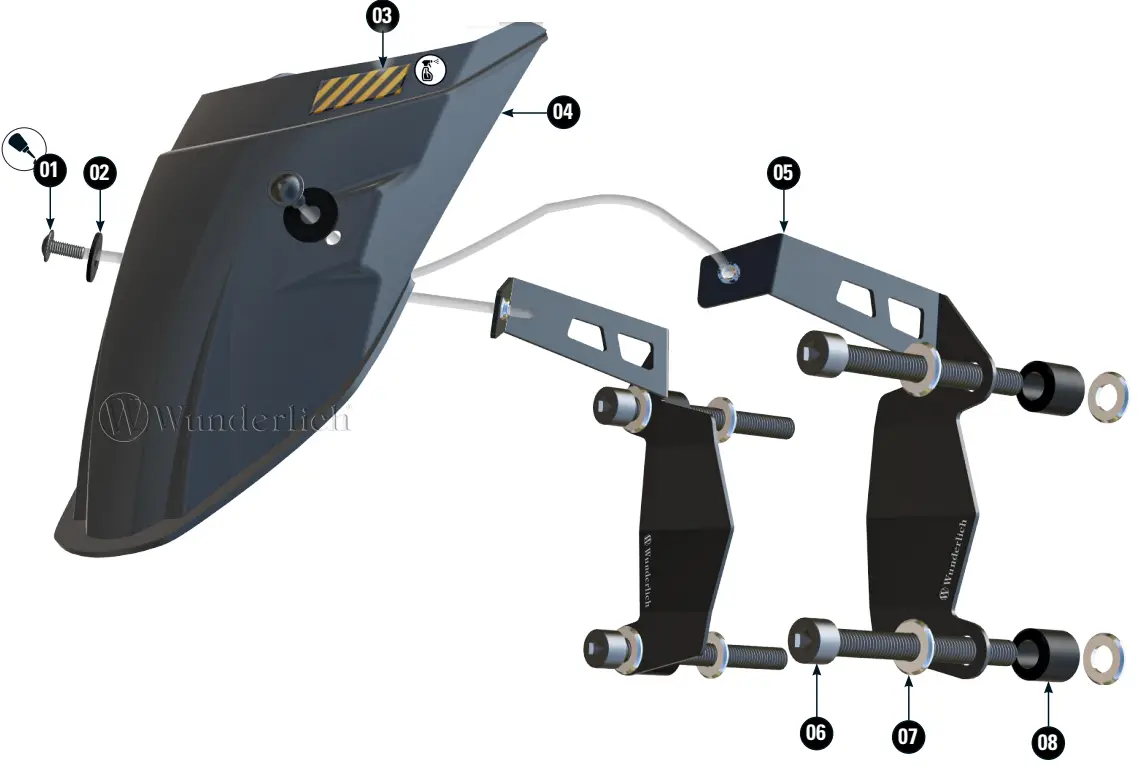

| 1 | Lens head screw M5x10 | 7381A2 | 7381 | 2 |
| 2 | Washer plastic M5 | 9021PA | 7093 | 2 |
| 3 | double-sided tape | 12cm | ||
| 4 | dirt trap | 1 | ||
| 5 | bracket left & right side | 2 | ||
| 6 | cylinder head screw M10x90 | 912Z | 4762 | 4 |
| 7 | Washer M | 125Z | 7089 | 8 |
| 8 | Sleeve DØ 19,6 – dØ 10,8 – l 25,0 mm | 4 |
Feature
Key
Fitting tip
Attention
Magnification
Fitting lubricant
Screw
Thread locking fluid
Torque
Cleaner
Using Instruction

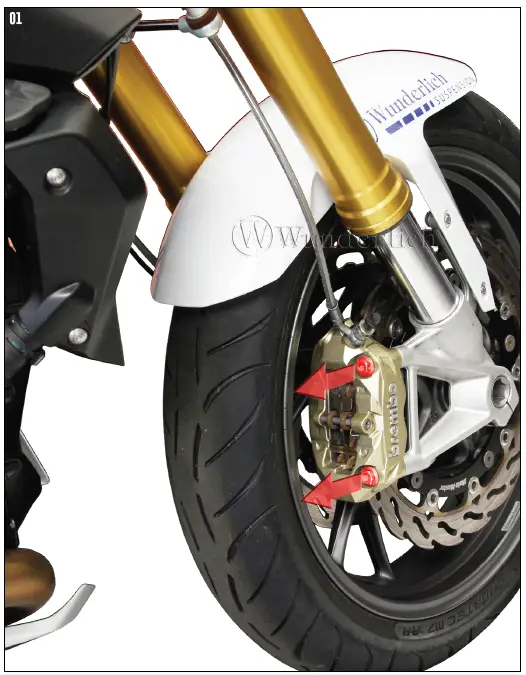

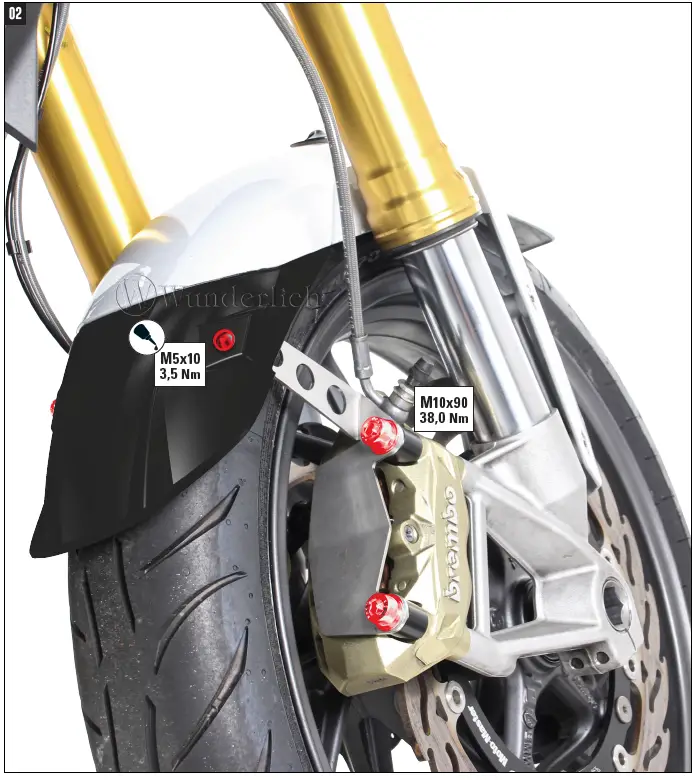

Clean and degrease the inside of the fender before mounting the dirt trap.
