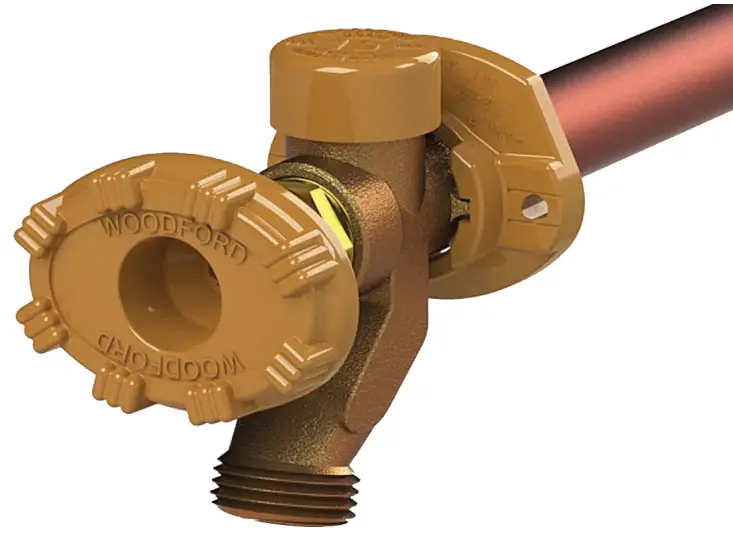

WOODFORD 19 Model Freezeless Anti Siphon Wall Faucet
This unit offers anti-siphon and non-rupture protection.
The Freezeless Model 19 is intended for irrigation purposes and designed for year-round residential regardless of outside temperature. This product contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require
an add-on vacuum breaker. This ASSE 1019 device in intended for irrigation use and outdoor watering and shall not be subjected to more than (12) hours of continuous water pressure.
SPECIFICATIONS
- Manufactured under one or more of the following patents. Patent Information see: https://www.woodfordmfg.com/patents
- ASSE 1019 – Type C Listed
- CSA, cUPC Approved
- Not intended for continuous use
FEATURES

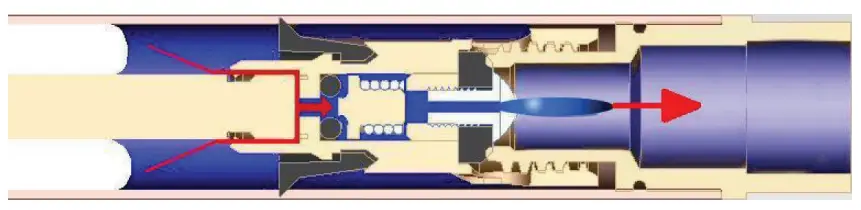

- Patented resetting pressure relief valve prevents the faucet tube from bursting in freezing conditions even if a hose is unintentionally left on.
- 3/4” male hose thread nozzle
- Stainless steel seat – eliminates wire draw
- EPDM packing to prevent leaking
- Full circle operating threads on valve body and retainer
- No-lead solder
- Standard “O” size seat washer
- Oval, powder-coated, die cast aluminum handle
- Optional Tee Key available (extra charge)
- Adjustable polycarbonate wall flange
- MAX PRESSURE – 125 p.s.i.
- MAX TEMPERATURE – 120° F
INSTALLATION REQUIREMENTS
- The faucet length used is to be comparable to what would be used with standard freezeless faucets.
- The inlet connection must be located in a heated area.
- The gap between the house and faucet must be sealed to prevent air leaks.
- The faucet must be installed with a slight downward pitch toward the nozzle.
- Adequate insulation is required around the faucet, wall board and sill plate.

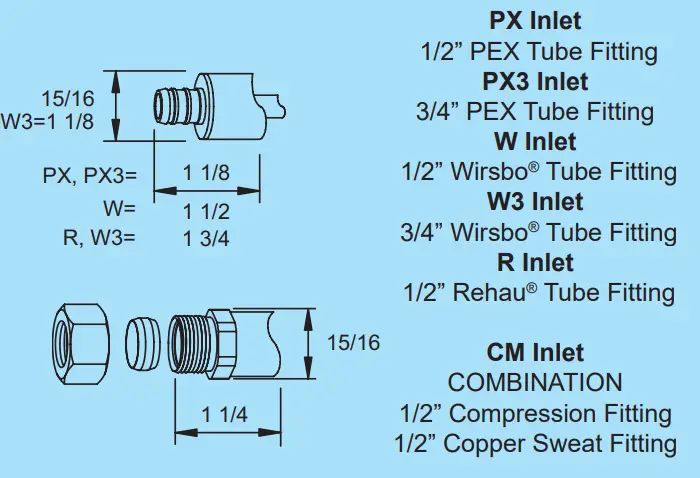

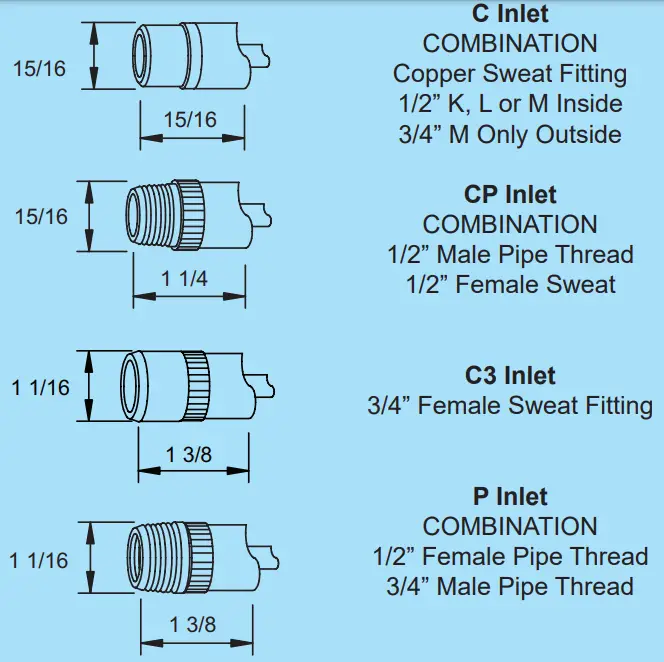

Inlet Descriptions

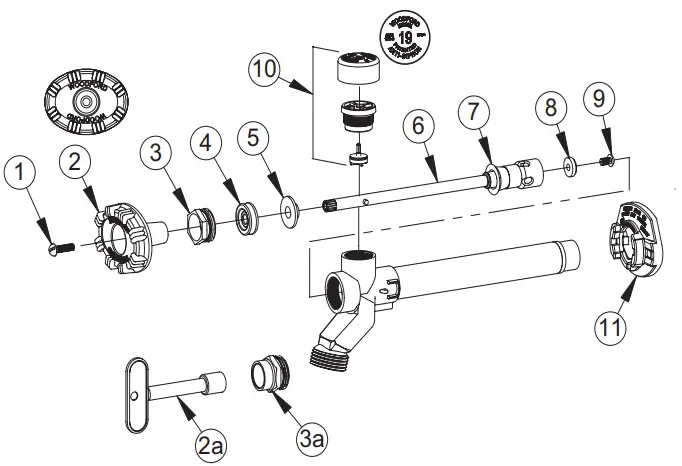

MODEL 19 PARTS LIST
| ITEM | PART# | DESCRIPTION |
| 1 | 30002 | Handle Screw |
| 2 | 30559 | Oval Wheel Handle –
Powder Coated Die Cast Aluminum |
| 2a | 50012 | Tee Key (Optional) |
| 3 | 30059 | Packing Nut |
| 3a | 30512 | Packing Nut w/deep stem guard (Optional) |
| 4 | 30560 | EPDM Packing |
| 5 | 30421 | Packing Support Washer |
| 6 | RK-PRV | Valve Stem Assembly (See chart at right) |
| 7 | 30459 | Check Valve |
| 8 | 30008 | Valve Seat Rubber |
| 9 | 30804 | Retainer Screw |
| 10 | RK-19VB | Vacuum Breaker Float Kit – Model 19 |
| 11 | 30098 | Adjustable Flange |
| RK-19 | Repair Kit (Includes items 1-5, 7-10) |

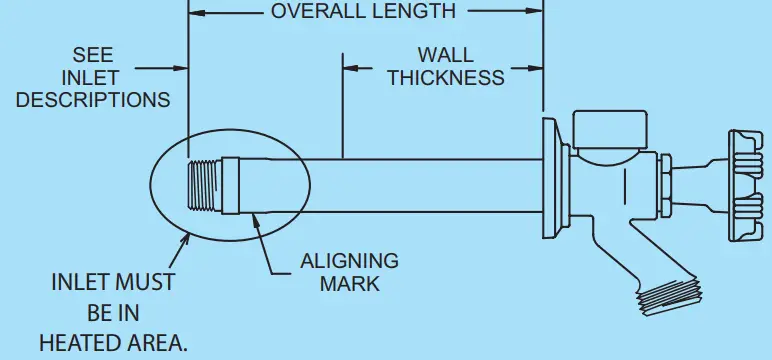

Rough-In Dimensions

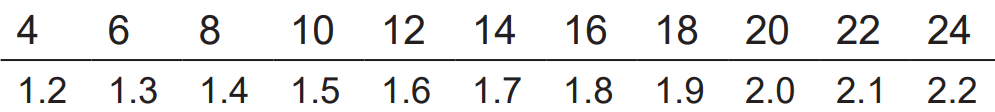

Wall Thickness (inches)
- Shipping Wt. Ea. (lbs)
- Overall Length Dimension: Add wall thickness and inlet option length shown in chart above.
RK-PRV and Replacement Rod #
| Wall Thickness | RK-PRV-* | Rod Only Part #** | Overall Length Dim “A” |
| 4 | RK-PRV-4 | 35092 | 5 7/8” |
| 6 | RK-PRV-6 | 35093 | 7 7/8” |
| 8 | RK-PRV-8 | 35094 | 9 7/8” |
| 10 | RK-PRV-10 | 35095 | 11 7/8” |
| 12 | RK-PRV-12 | 35096 | 13 7/8” |
| 14 | RK-PRV-14 | 35097 | 15 7/8” |
| 16 | RK-PRV-16 | 35098 | 17 7/8” |
| 18 | RK-PRV-18 | 35099 | 19 7/8” |
| 20 | RK-PRV-20 | 35100 | 21 7/8” |
| 22 | RK-PRV-22 | 35101 | 23 7/8” |
| 24 | RK-PRV-24 | 35102 | 25 7/8” |
LIMITED WARRANTY
All Model 19 Wall faucets are sold with a limited warranty for five (5) years against defects in material and workmanship. We will replace or issue credit (at our option) for defective goods that are returned for inspection and found to be defective within five (5) years of purchase from Woodford. In addition, Woodford will pay up to $5,000.00 toward the cost to repair damages incurred as a result of a defective Model 19 Wall Faucet that was properly installed. This limited warranty does not cover defects caused by: modification, alteration or repair of the product by anyone other than Woodford; physical abuse to, or misuse of, the product or operation thereof in a manner contrary to accompanying instructions.
ABOUT COMPANY
- WOODFORD MANUFACTURING COMPANY
- 2121 Waynoka Road, Colorado Springs, Colorado 80915
- Phone: 800-621-6032
- Fax: 800-765-4115
- To view our complete product line visit: www.woodfordmfg.com or email: [email protected]
