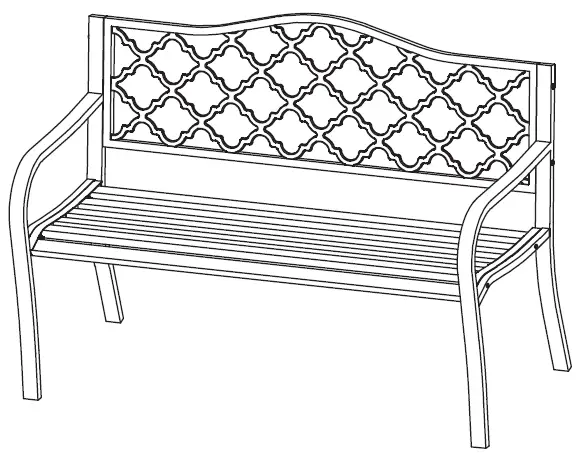

WINSTON PORTER Y000333 Emiliyana Steel Garden Bench
Part Identification
Not actual size

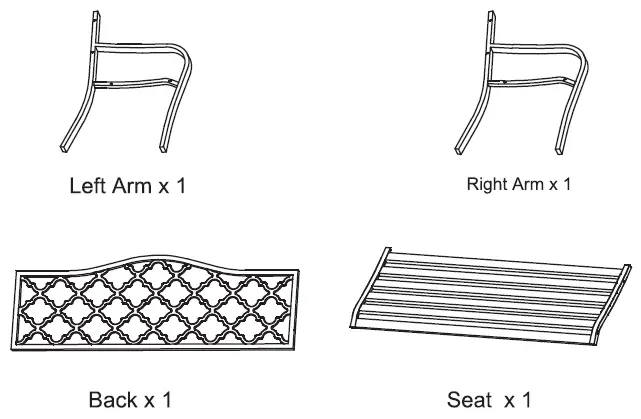

PARTS

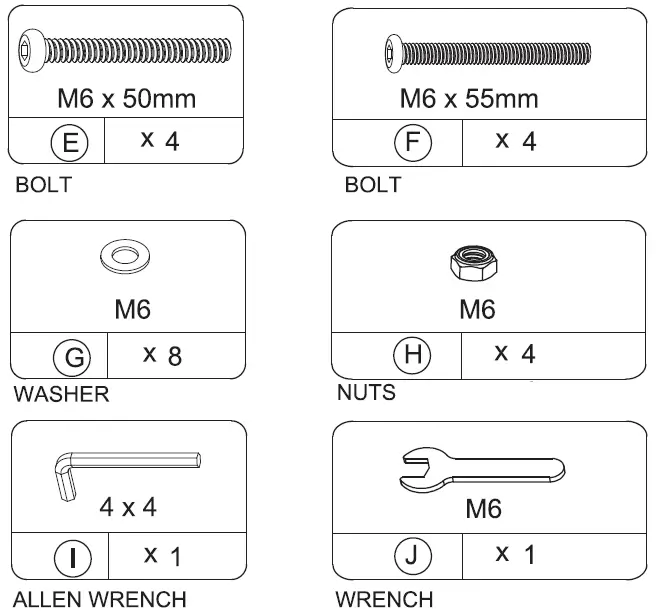

Hardware List
Actual size
STEP 1

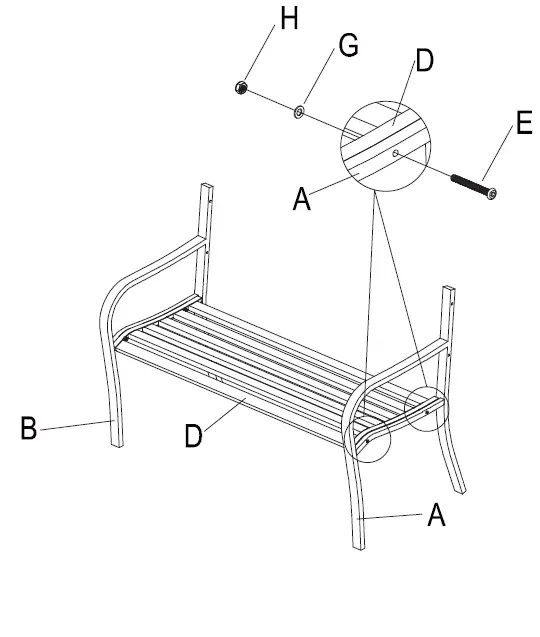

Attach the seat (D) to the arm (A) by bolts (E) with washers (G) and nuts(H} through the pre-drilled holes on the arm and the pre-drilled holes on the seat. Repeat steps for the other side arm (B}. Part A is different from Part B. This Park bench would fail to assemble if the installation position of Part A and Part Bis were reversed. Please swap the Part A and Part Band then reassemble them, if you fail to assemble them.
IMPORTANT: Do not tighten screws completely until all parts are assembled in place.
STEP2

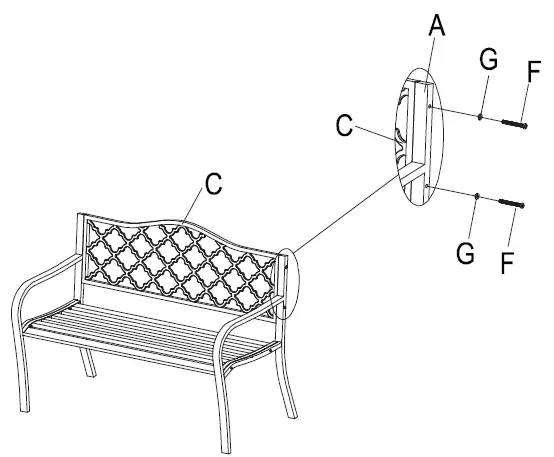

Attach the back (C) to the arm (A) by Installation bolts (F) with washers (G) through the pre-drilled holes on the arm into the pre-welded nuts on the back. Repeat step for the other side arm(B).
STEP 3: Tighten all the bolts with the wrench and the alien wrench ,and turn the bench to the upright position. Your bench is now ready for use, so relax & enjoy!
Maximum Loads
WARNING: This item is only suitable within the specified maximum load-bearing. Heavier loads than the indicated load capacity may cause instability, resulting in possible injuries.
