Whirlpool MGD5030MW1 Gas Dryer
PARTS

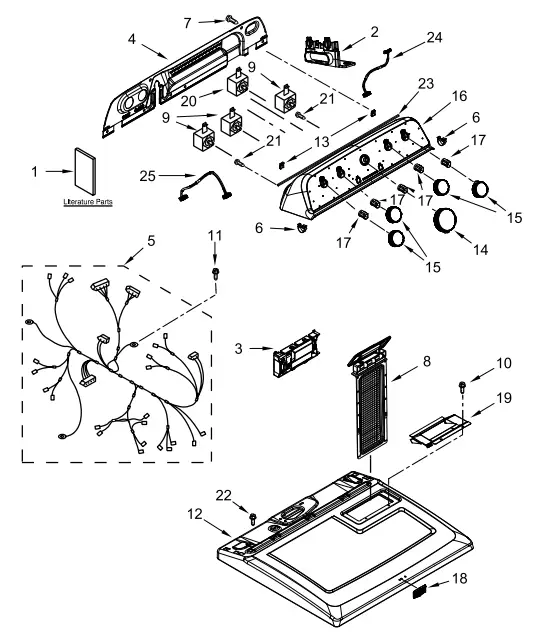

TOP AND CONSOLE PARTS
| Illus. No. |
Part No. |
Description |
| 1 | Literature Parts | |
| W11361424 | Owners Manual | |
| W11495041 | Tech Sheet | |
| W11466172 | Quick Start Guide | |
| 2 | W11438904 | Connector, Service Standalone |
| 3 | W11625656 | Appliance Control Unit (ACU) |
| 4 | W10775189 | Panel, Rear |
| 5 | W11437794 | Harness, Main |
| 6 | 8312709 | Clip, Console |
| 7 | 3390663 | Screw |
| 8 | Lint Screen | |
| W11538108 | White |
| Illus. No. |
Part No. |
Description |
| 9 | W10414381 | Switch, Rotary Encoder (2 Position) |
| 10 | 688983 | Screw |
| 11 | 3348629 | Screw |
| 12 | Top | |
| W10613389 | White | |
| 13 | W10298336 | Nut, “U” |
| 14 | W11328381 | Knob, Large |
| 15 | W11398762 | Knob, Small |
| 16 | Assembly, Console | |
| W11576588 | White | |
| 17 | 688805 | Clip, Spring |
| 18 | W10612925 | Badge |
| 19 | W10662472 | Collar, Lint Chute |
| Illus. No. |
Part No. |
Description |
| 20 | W10414397 |
Switch, Rotary Encoder (3 Position) |
| 21 | 9740848 | Screw |
| 22 | 343641 | Screw |
| 23 | W10726632 | Seal, Console |
| 24 | W11486550 | Harness, Upper Encoder RS |
| 25 | W11437795 | Harness, Upper Encoder |

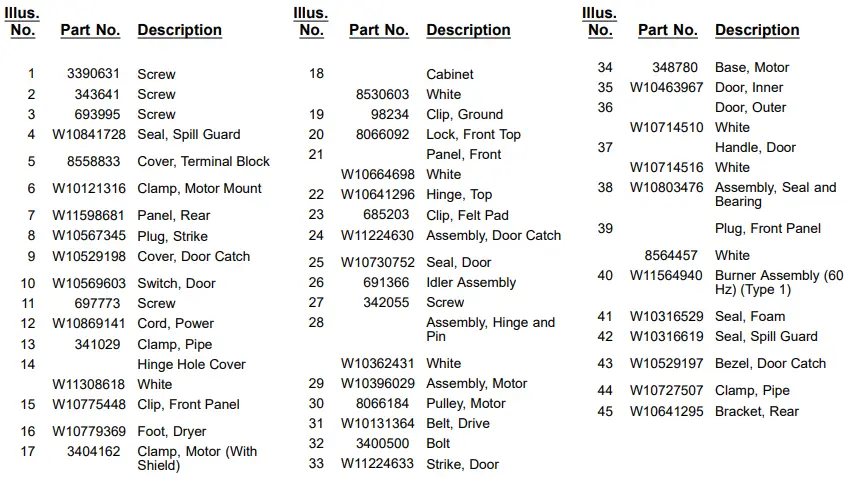

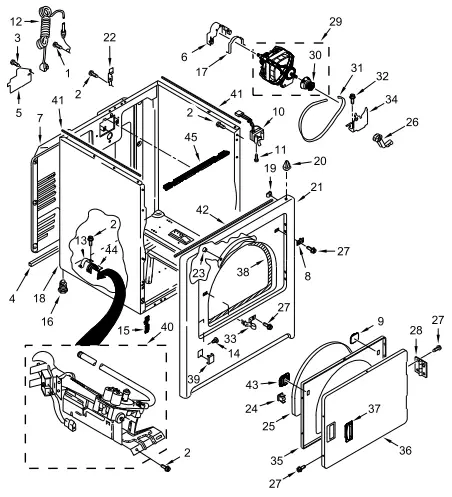

CABINET PARTS

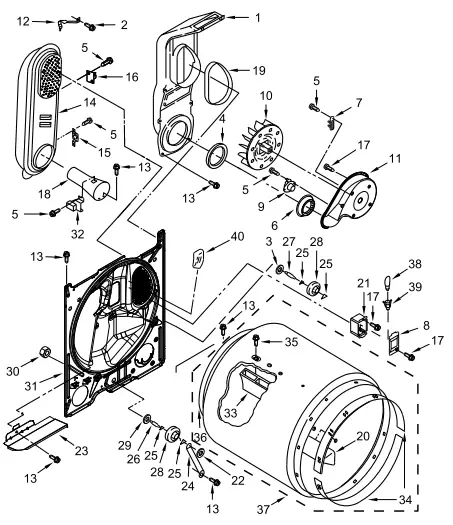

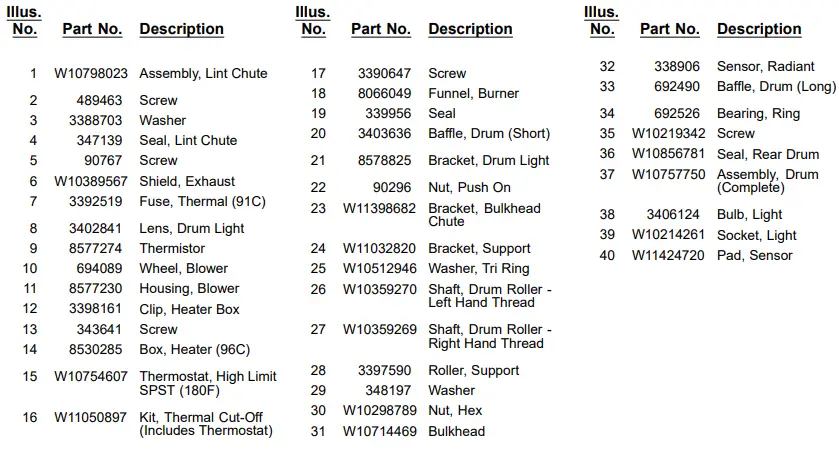

BULKHEAD PARTS

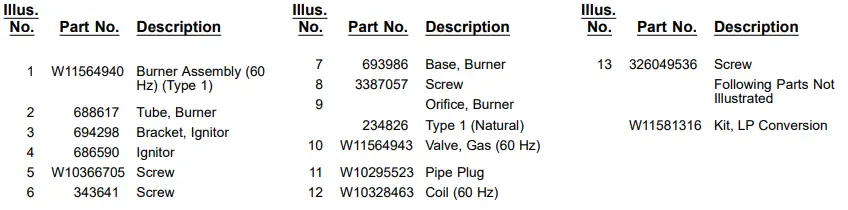

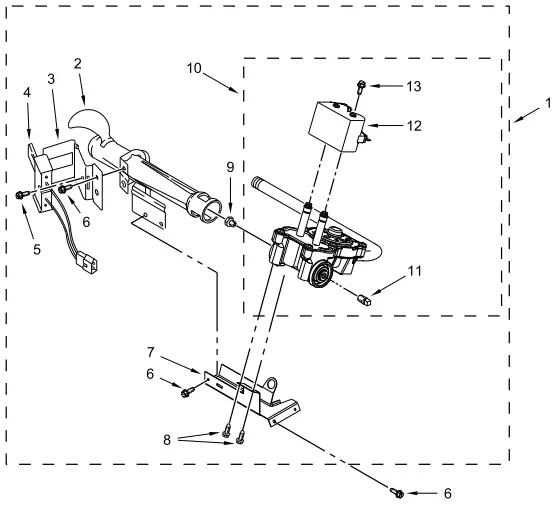

BURNER ASSEMBLY PARTS
USE WITH TYPE 1 – NATURAL, TYPE 2 – MIXED, AND TYPE 4 – LIQUEFIED PROPANE AND BUTANE GASES
