Welch Allyn 767 Series Blood Pressure Cuffs
NEED A BP CUFF?
ARE YOU TAKING AN ACCURATE BLOOD PRESSURE?
- STEP 1 – CHOOSE THE RIGHT EQUIPMENT
- A blood pressure measurement instrument that has been calibrated for measurement accuracy annually. Welch Allyn® has revolutionised Manual Blood
- Pressure design by creating gear free technology that has fewer moving parts – stays accurate longer. Enables blood pressure gauges to withstand drops of up to 1.5 meters and still maintain calibration. Most of the Welch Allyn® Automated BP products use SureBP™ technology that enables fast, accurate 15-second blood pressure readings, improving patient comfort. Obtains accurate readings and minimises error codes, even in the presence of many cases of motion or weak pulse.
- STEP 2 – PREPARE THE PATIENT

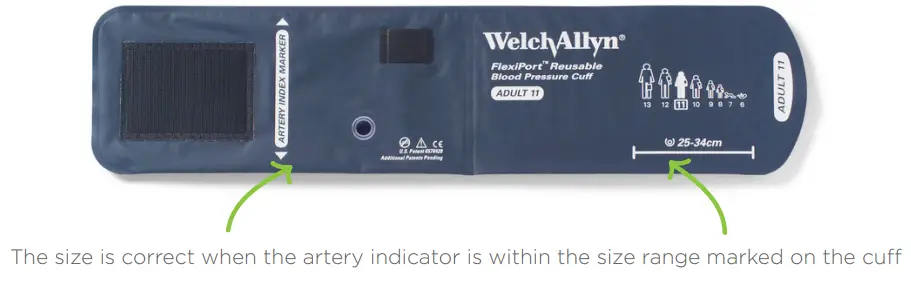

Make sure the patient is relaxed by allowing five minutes to relax before the first reading. The patient should sit upright with their upper arm positioned so it is level with their heart and feet flat on the floor. Remove excess clothing that might interfere with the bp cuff or constrict blood flow in the arm. Be sure you and the patient refrain from talking during the reading. - STEP 3 – CHOOSE THE PROPER BP CUFF SIZE
- Welch Allyn have a large range of cuffs.

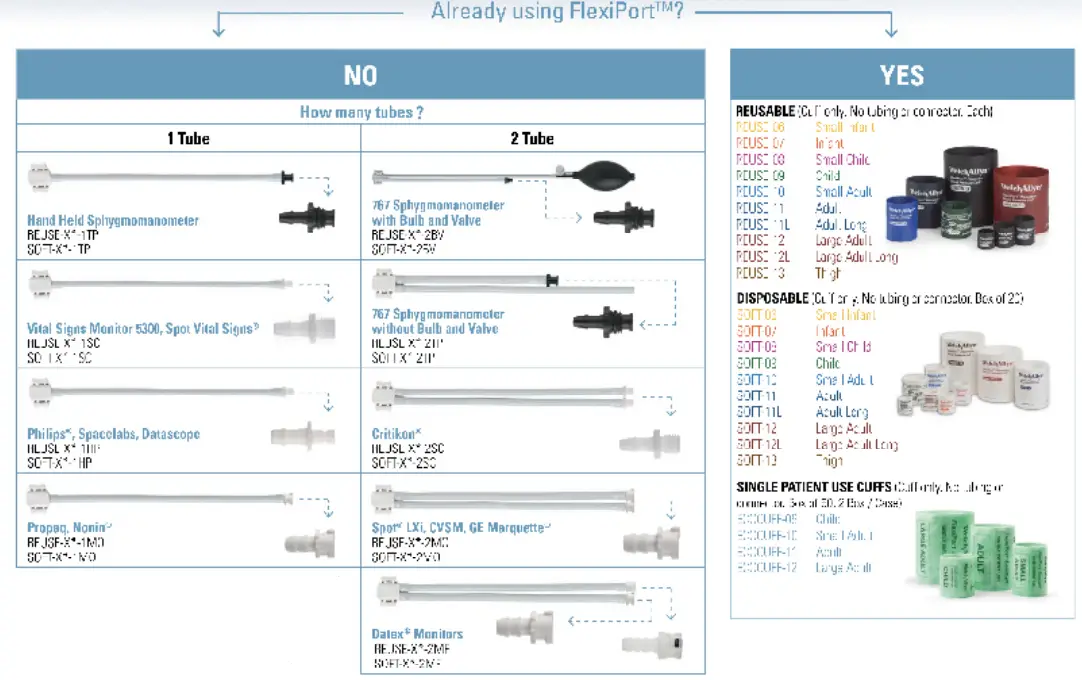

- The Welch Allyn® BP Cuffs have a three year warranty and are all Latex Free. They will fit all of your blood pressure devices. The Flexiport® cuffs allow you to use one cuff in virtually every room and on virtually every device you have.
- Welch Allyn have a large range of cuffs.
BENEFITS
- Minimize the risk of cross-contamination and control infections – the cuffs have an anti–microbial coating and are easy to clean
- Eliminate confusion caused by multiple tube and connector configurations
- FlexiPort® cuffs meet the AAMI and AHA specifications
- Long cuffs are designed to allow practitioners to take blood pressure readings on patients who have short and stocky arms. Size 11L and 12L
- Tubing can rotate 360 degrees to stop pressure on patients arm

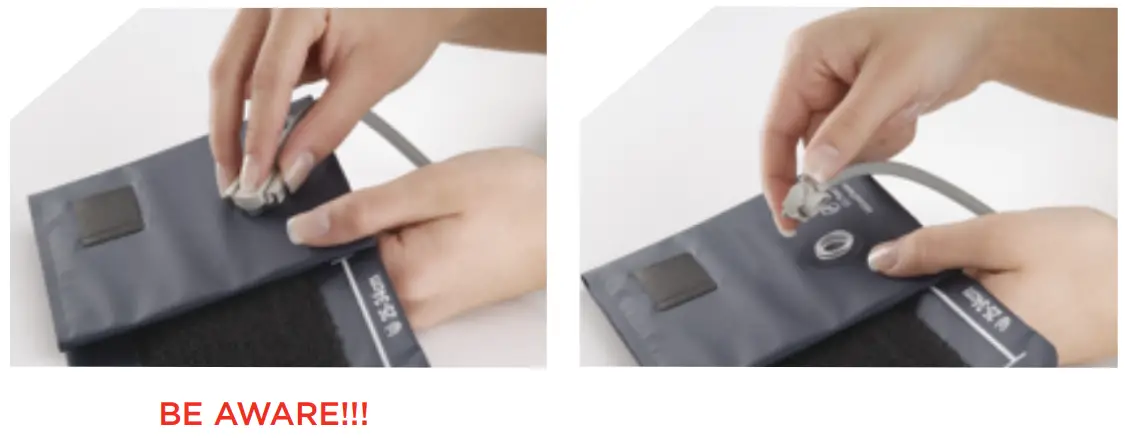

YOU CAN CHANGE SIZES AT THE CUFF
Means not worrying about connectors missing

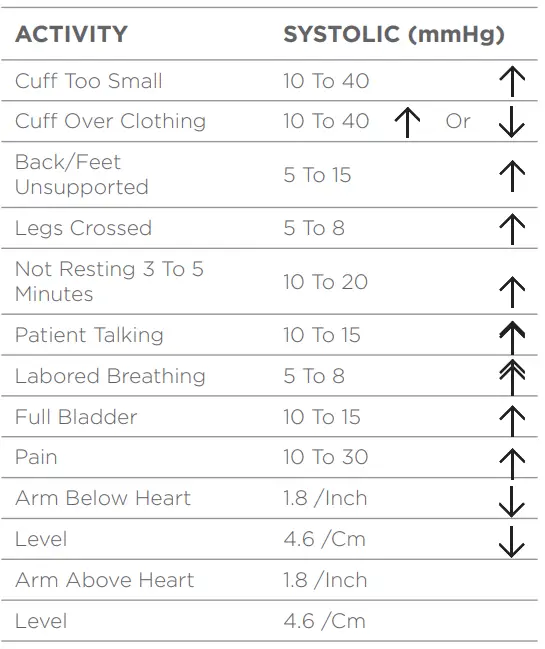

THE FOLLOWING ACTIVITIES AFFECT A BLOOD PRESSURE READING:
RANGE OF SIZES AVAILABLE
| CUFF | RANGE |
| Sm. Infant (6) | 7-10 Cm |
| Infant (7) | 9-13 Cm |
| Sm. Child (8) | 12-16 Cm |
| Child (9) | 15-21 Cm |
| Sm. Adult (10) | 20-26 Cm |
| Adult (11) | 25-34 Cm |
| Adult Long ( 11L) | 25-34 Cm |
| Large Adult ( 12) | 32-43 Cm |
| Lg. Adult Long (12L) | 32-43 Cm |
| Thigh (13) | 40-55 Cm |

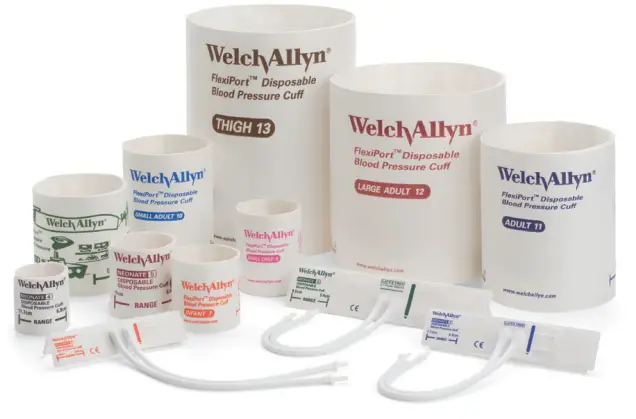

DISPOSABLE BP CUFFS
Welch Allyn® FlexiPort® disposable blood pressure cuffs are the top choice for infection-control conscious hospitals and clinics around the world. That’s because we offer virtually every type of cuff an institution may need, along with the ability to simplify inventory like no other cuff provider with our patented FlexiPort®.
| CUFF | RANGE | CODE |
| Small Child (8) | 12-16cm | 40-SOFT-08 |
| Child (9) | 15-21 cm | 40-SOFT-09 |
| Small Adult (10) | 20-26cm | 40-SOFT-10 |
| Adult (11) | 25-34 cm | 40-SOFT-11 |
| Adult Long (11L) | 25-24cm | 40-SOFT-11L |
| Large Adult (12) | 32-43cm | 40-SOFT-12 |
| Large Adult Long (12L) | 32-43cm | 40-SOFT-12L |
| Thigh | 40-55cm | 40-SOFT-13 |

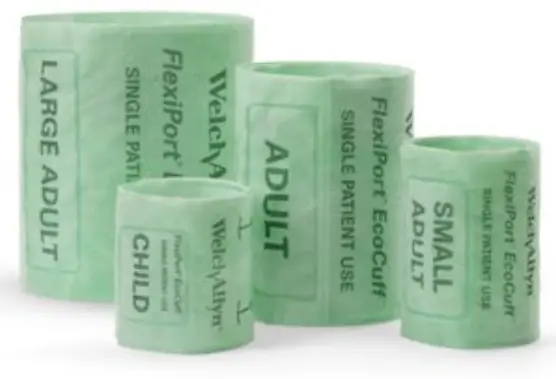

ECO CUFF
FlexiPort® EcoCuff™ Single Patient Use Blood Pressure Cuff One true solution to help facilities reduce cost, cross-contamination, and environmental impact. New technology that provides an optimized single patient use solution which maximizes value while minimizing cross-contamination related to BP cuffs. Single-point connection facilitates a simple standardization solution. Uniquely designed for and marked as single patient use. Designed to last an entire patient stay – Tested to 100 on/offs and BP cycles.
- EcoCuff™ is available in a ‘raw’ format only (no tubes or connectors) – Reduces waste and cost.
- EcoCuff™ are not wrapped individually – Reduces waste
- EcoCuff™ is 100% Polypropylene – Capable of being Recycled (#5), reducing environmental impact
- EcoCuff™ features a unique slot fitting system – Helps prevent miscuffing
- EcoCuff™ meets all the latest clinical guidelines for proper fit from AAMI and AHA
CUFF RANGE CODE Child 15-21cm 40ECOCUFF09 Small Adult 20-28cm 40ECOCUFF10 Adult 27-38cm 40ECOCUFF11 Large Adult 33-34cm 40ECOCUFF12

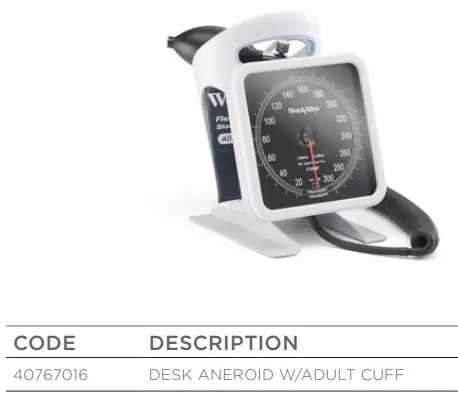

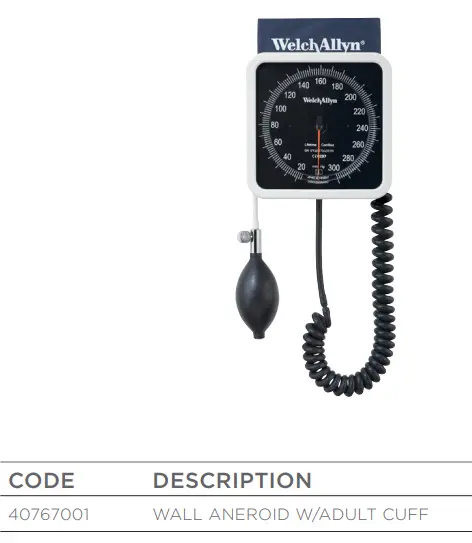

TYCOS® 767-SERIES
WALL, MOBILE AND DESK SPHYGMOMANOMETER ANEROIDS
Great looks and clinical-grade accuracy make the 767-Series one of the best Tycos® aneroids ever.
- Laser-engraved dial face provides unmatched accuracy
- Recessed dial face and high contrast red pointer increase visability and reduce parallax errors
- Lifetime calibration warranty

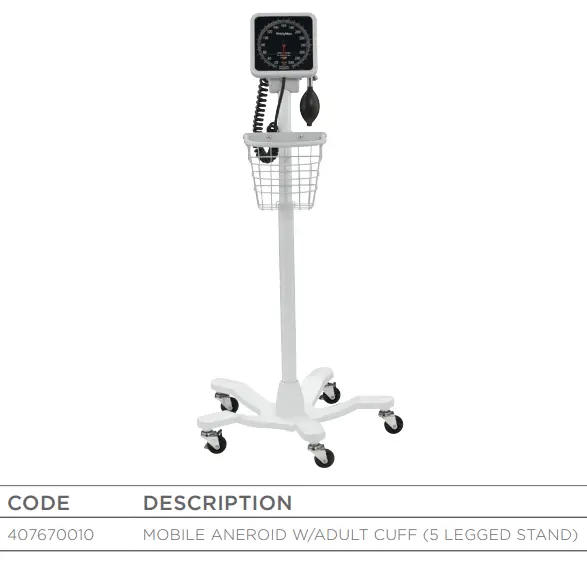

- New five leg stand provides improved stability and manoeuvrability
- Simple colour changes give the aneroid a new look
- Latex and mercury free
CUFF OPTIONS FOR 767’S (LARGE)
| CODE | DESCRIPTION |
| 40-10-2BV | FLEXIPORT CUFF W/BULB + VALVE (SMALL ADULT – 2 TUBE) |
| 40-11-2BV | FLEXIPORT CUFF W/BULB + VALVE (ADULT – 2 TUBE) |
| 40-12-2BV | FLEXIPORT CUFF W/BULB + VALVE (LARGE ADULT – 2 TUBE) |
| TWO TUBE – CUFFS INCLUDING CONNECTOR | |
| 40-06-2TP | FLEXIPORT CUFF SMALL INFANT |
| 40-07-2TP | FLEXIPORT CUFF INFANT |
| 40-08-2TP | FLEXIPORT CUFF SMALL CHILD |
| 40-09-2TP | FLEXIPORT CUFF CHILD |
| 40-11-2TP | FLEXIPORT CUFF SMALL ADULT |
| 40-11L-2TP | FLEXIPORT CUFF ADULT LONG |
| 40-12-2TP | FLEXIPORT CUFF LARGE ADULT |
| 40-12L-2TP | FLEXIPORT CUFF LARGE ADULT LONG |
| 40-13-2TP | FLEXIPORT CUFF THIGH |
| CUFF ONLY | |
| 40REUSE06 | FLEXIPORT CUFF SMALL INFANT |
| 40REUSE07 | FLEXIPORT CUFF INFANT |
| 40REUSE08 | FLEXIPORT CUFF SMALL CHILD |
| 40REUSE09 | FLEXIPORT CUFF CHILD |
| 40REUSE10 | FLEXIPORT CUFF SMALL ADULT |
| 40REUSE11 | FLEXIPORT CUFF ADULT |
| 40REUSE11L | FLEXIPORT CUFF ADULT EXTRA LONG |
| 40REUSE12 | FLEXIPORT CUFF LARGE ADULT |
| 40REUSE12L | FLEXIPORT CUFF LARGE ADULT EXTRA LONG |

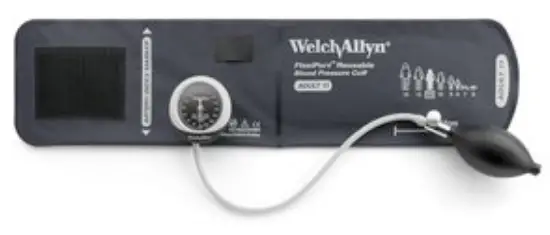

TYCOS® DS66 HAND ANEROID
- Certified accuracy to ±3 mmHg
- Trigger deflation valve for smooth, one-finger operation
- Latex-free for safety
- Durable one-piece cuff
- Polyester zip case
- Laser-engraved dial for accuracy
- Shock resistant for accuracy and lower cost over time
- 15-year calibration warranty
CUFF OPTIONS
| CODE | DESCRIPTION |
| WITH TUBING | |
| 40-06-2TP | FLEXIPORT CUFF SMALL INFANT |
| 40-07-2TP | FLEXIPORT CUFF INFANT |
| 40-08-2TP | FLEXIPORT CUFF SMALL CHILD |
| 40-09-2TP | FLEXIPORT CUFF CHILD |
| 40-11-2TP | FLEXIPORT CUFF SMALL ADULT |
| 40-11-1TP | FLEXIPORT CUFF ADULT |
| 40-11L-2TP | FLEXIPORT CUFF ADULT LONG |
| 40-12-2TP | FLEXIPORT CUFF LARGE ADULT |
| 40-12L-2TP | FLEXIPORT CUFF LARGE ADULT LONG |
| 40-13-2TP | FLEXIPORT CUFF THIGH |
| CODE | DESCRIPTION |
| NO TUBING | |
| 40REUSE06 | FLEXIPORT CUFF SMALL INFANT |
| 40REUSE07 | FLEXIPORT CUFF INFANT |
| 40REUSE08 | FLEXIPORT CUFF SMALL CHILD |
| 40REUSE09 | FLEXIPORT CUFF CHILD |
| 40REUSE10 | FLEXIPORT CUFF SMALL ADULT |
| 40REUSE11 | FLEXIPORT CUFF ADULT |
| 40REUSE11L | FLEXIPORT CUFF ADULT EXTRA LONG |
| 40REUSE12 | FLEXIPORT CUFF LARGE ADULT |
| 40REUSE12L | FLEXIPORT CUFF LARGE ADULT EXTRA LONG |
| CODE | DESCRIPTION |

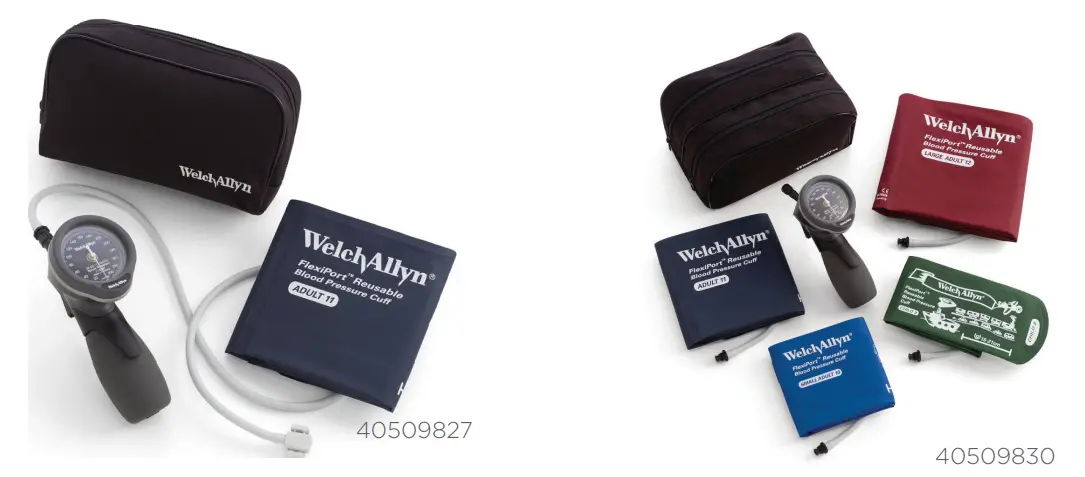

| 40509827 | HAND ANEROID W/ADULT DURABLE ONE-PIECE CUFF |
| 40509828 | HAND ANEROID W/LARGE ADULT DURABLE ONE-PIECE CUFF |
| 40509830 | HAND ANEROID W/LARGE ADULT, ADULT, SMALL ADULT AND CHILD DURABLE ONE-PIECE CUFFS |

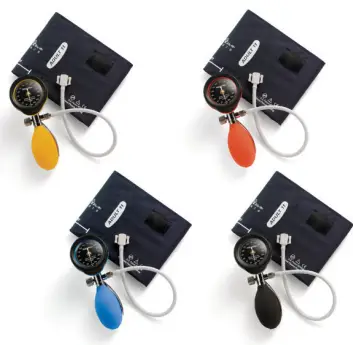

WELCH ALLYN® DURASHOCK™
MODEL DS55 HAND ANEROID
The DS55 provides a traditional thumbscrew-style air release valve and identification labels that can be customised.
The DS55 is available in four colour schemes – blue, yellow, red and black.
- Laser-engraved dial for accuracy
- Shock resistant for accuracy and lower cost
- 10 year calibration warranty
- Premium aesthetics
CODE DESCRIPTION 5041 DS55 SPHYG BLUE 5042 DS55 SPHYG CHROME 5043 DS55 SPHYG RED 5044 DS55 SPHYG YELLOW
WELCH ALLYN® DURASHOCK™
MODEL DS45 – INTEGRATED ANEROID
- The first gear-free, shock-resistant aneroid sphygmomanometer with integrated cuff
- Meets AAMI shock-resistant standard for enhanced durability
- Laser-engraved dial face for accuracy
- Gauge rotates 360° for easy viewing and snaps directly into cuff for quick cuff change
- Durable, lightweight and latex-free for safety
- 10 year warranty
CODE DESCRIPTION 40DS4511 DS24 SPHYGMOMANOMETER COMPLETE
WELCH ALLYN® DURASHOCK™
MODEL DS44 – INTEGRATED ANEROID
- The first gear-free, shock-resistant aneroid sphygmomanometer with integrated cuff
- Meets AAMI shock-resistant standard for enhanced durability
- Laser-engraved dial face for accuracy
- Gauge rotates 360° for easy viewing and snaps directly into cuff for quick cuff change
- Durable, lightweight and latex-free for safety
- Five year warranty
CODE DESCRIPTION 40DS4411 DS44 SPHYGMOMANOMETER COMPLETE

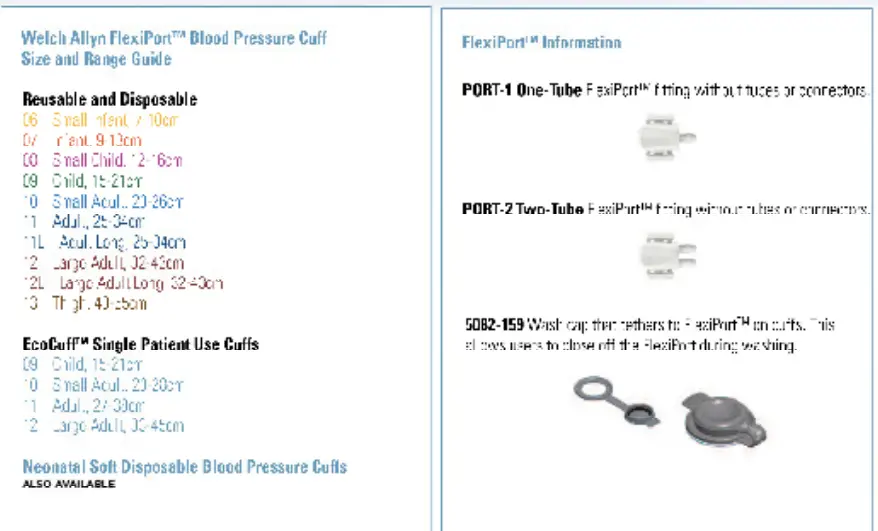

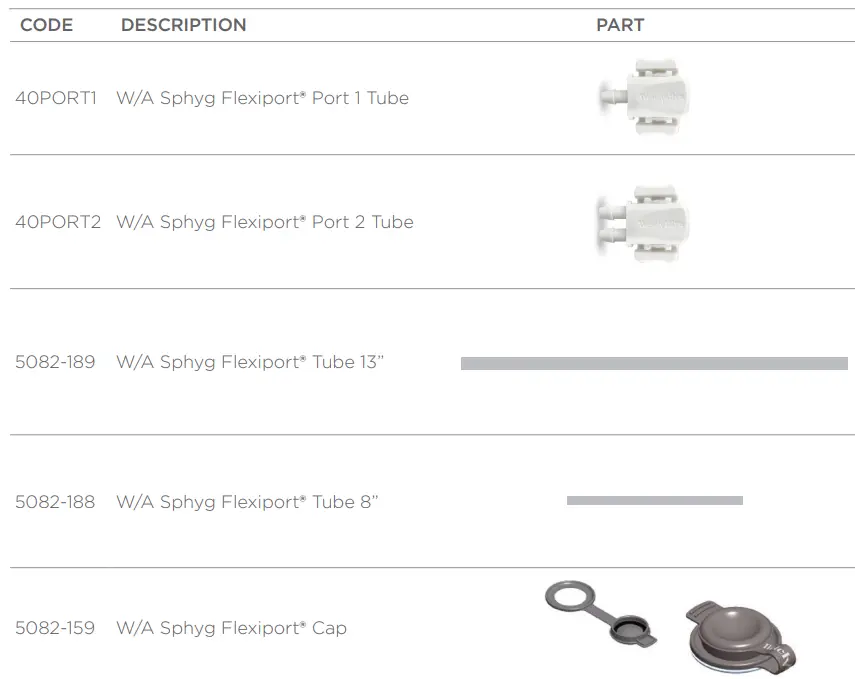

WELCH ALLYN® FLEXIPORT® PARTS
WELCH ALLYN® BP CUFF SIZE GUIDE
| BP CUFF SIZE GUIDE | ||
| NUMBER | SIZE | CUFF RANGE |
| 6 | Newborn | 7.7 – 10.5cm |
| 7 | Infant | 9.8 – 13.3cm |
| 8 | Small Child | 12.4 – 16.8cm |
| 9 | Child | 15.8 – 21.3cm |
| 10 | Small Adult | 20.0 – 27.0cm |
| 11 | Adult | 25.3 – 34.3cm |
| 12 | Large Adult | 32.1 – 43.4cm |
| 13 | Thigh | 40.7 – 55.0cm |
