WB-SIGE-400 Waste Bin Instruction Manual

WB-SIGE-400 Waste Bin

TOOLS

Maintenance

Clean with a soft, dry cloth. Avoid using solvents or abrasive.

FEATURES

• N°6 4,2×6,5:Self tapping TC screw
• N°8 3,9×13: Self-tapping TC screw
• N°4 M5x8 mm: Screws
• N°4 M5x13′:Special hex key screw
• N°1:Allen key

PARTS

• A. N°1 :Frame
• B. N°2 :Adjustable carter
• C. N°2: Door stabilizing elements
• D. N’2:Cover
• E.: Wastebin kit

INSTALLATION INSTRUCTION

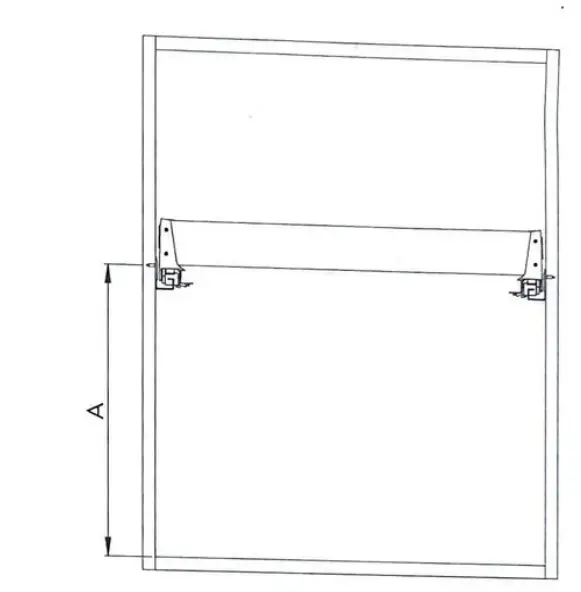

1. Fix the drawer slides at the suggested height according to the capacity of the bins
2. Assemble the back of the drawer (not supplied) on the drawer system.
3. N°4 M5x13
   Pre-mount the four M5x13 (special screws) on the carters B, as shown.
4. Assemble the frame A with the carters B, as shown, to obtain the chassis.
5. Turn upside down and assemble the chassis with the drawer sides, as shown.
   1. Attention: mount the chassis in the correct way, as shown in the boxes, according to the type of drawer wend
6. N°6 4,2×6,5
   Fix the chassis into the drawer using the six 4.2×6.5 screws then turn it upside down.
7. Mount the drawer on the slides.
8. Mount the door on the drawer.
9. Adjust the door through the drawer adjustment system.
10. Fix the frame A to the carters B by tightening the four M5x13 special screws from below with the allen key.
11. N°4 M5x8
    Pre-mount four M5x8 screws on the front side of the carters B. Hang the door stabilizing elements C on the pre-mounted screws.
12. N°6 3,9×13
    Position the door stabilizing elements C in contact with the door then tighten the four M5x8 screws, finally fix the stabilizing elements C to the door with six 3,9×13 screws
13. Mount the cover D.
14. Nº2 3,9×13
    If you have a solid door, fix the frame A to the door with a 3,9×13 screw to increase the stability
15. Place the bins.
