waterway D913, 414 SGMS Micro Jet
Designed for both lower cost and ease of installation, Waterway’s new Micro Jet offers the most versatile jetting system with an endless variety of options and amazing performance.
Contents
Features:
- Micro sized (Just 1 1/4″ in diameter)
- Ultra-easy to install (Just drill hole press in grommet, then jet)
- Multiple body options
- Wall fittings available in multiple colors or stainless steel
- Available with silicone & EPDM grommets
- LED version available
- Great air draw
- Can be used as a water feature or an air injector
- Multiple usages (use your imagination)
Choose from 3 Different Micro Body Styles

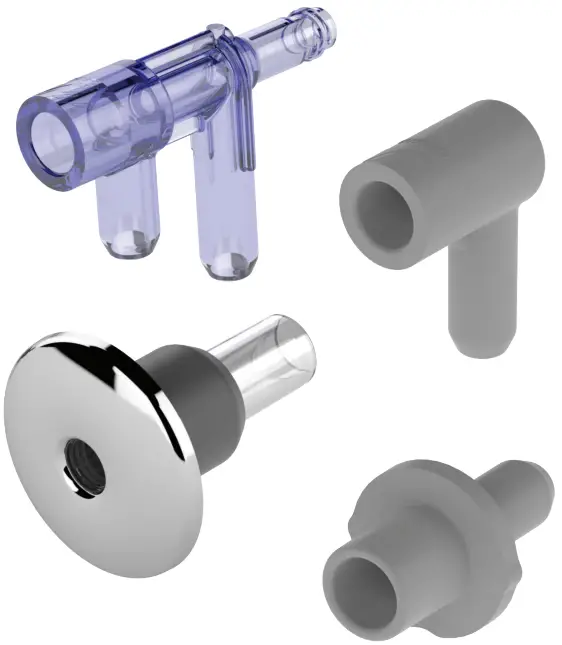

Micro Feature Components
| Part # | Description |
| 425-4030 | 38″ SB Straight Adaptor |
| 425-6000 | 3/8″ SB Micro 90˚ Ell Adapter |
| 425-6038 | 3/8″ SB Micro Venturi Jet Body, Same Side w/LED |
| 670-2700 | EPDM SGMS 1¼” Micro Jet/Thick Rope WF/Injector, Plastic, Wall fitting Assy. |
| 670-2700S | EPDM SGMS 1¼” Micro Jet/Thick Rope WF/Injector, Metal, Wall fitting Assy |
| 670-2700-SI | Silicone SGMS 1¼” Micro Jet/Thick Rope WF/Injector, Plastic, Wall fitting Assy |
| 670-2700SI-S | Silicone SGMS 1¼” Micro Jet/Thick Rope WF/Injector, Metal, Wall fitting Assy. |
Specifications:
- Hole Saw Size: 43/64″
Note: Do not use a regular twist drill. You must use a carbide 43/64″ hole saw or forstner bit for consistent hole saw sizes.

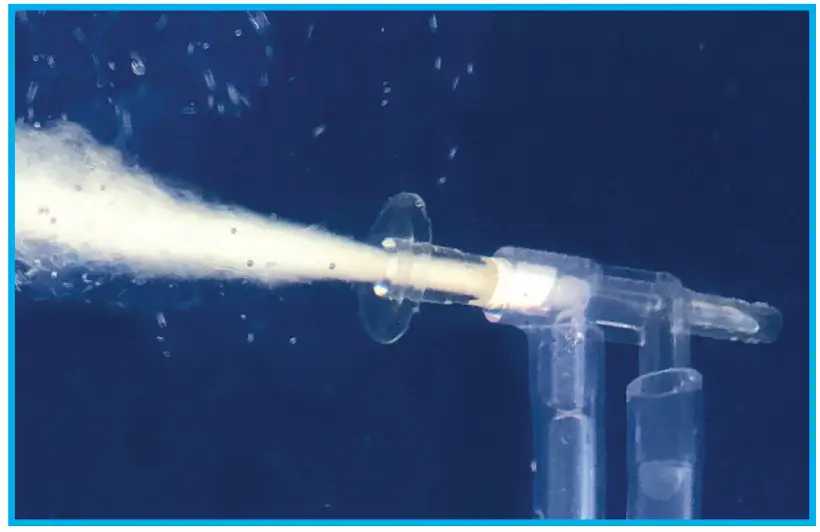

Micro Jet

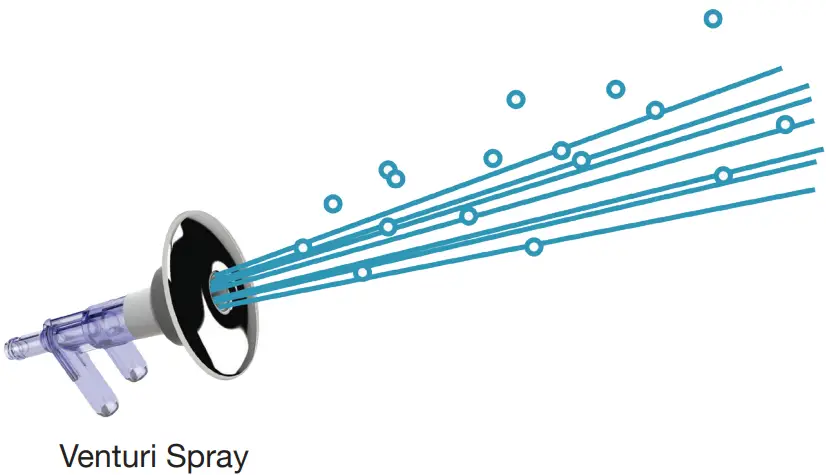

- Jet (With Venturi Adapter) = 1.25 GPM @ 3psi – 2.25 GPM @15psi Note: Aspiration measured at 1 foot of depth
- Jet (No Venturi) = 2.75 GPM @ 3psi – 5 GPM @ 15psi
Dimension
www.waterwayplastics.com
807-0343.0323
