Exit device:  98/99 Series

Overview

The 98/99 Series devices are heavy-duty push pads. The 98 Series has a smooth mechanism case, while the 99 Series has a grooved mechanism case. The 98/99 Series has been certified to the
highest industry standards and are used in schools, hospitals and government buildings.

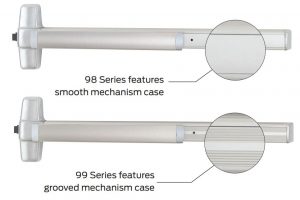

FIG 1 Overview



Device Types

FIG 2 Device Types

FIG 3 Device Types

1. Also available less bottom rod (LBR)
2. Also available less bottom latch (LBL)



Finishes

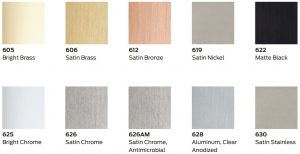

FIG 4 Finishes

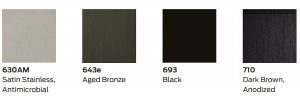

FIG 5 Finishes

Due to the many variations in monitors and printers, color samples may appear different than the physical product. Contact your local sales representative for a physical color sample.



Trim Functions

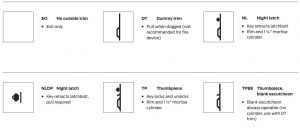

FIG 6 Trim Functions

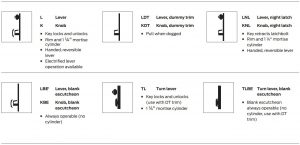

FIG 7 Trim Functions

FIG 8 Trim Functions



Trim Styles

FIG 9 Trim Styles

FIG 10 Trim Styles



Dimensions

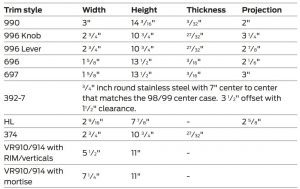

FIG 11 Dimensions



Lever Styles

Decorative levers

FIG 12 Decorative levers

FIG 13 Decorative levers



Dimensions

FIG 14 Dimensions

1. Available in stainless steel substrate only

FIG 15 Decorative levers

FIG 16 Decorative levers

Dimensions

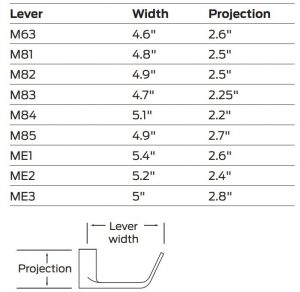

FIG 17 Dimensions



Standard Levers

FIG 18 Standard Levers



Dimensions

FIG 19 Standard Levers Dimensions



FIG 20 Standard Levers



Dimensions

FIG 21 Standard Levers Dimensions



Electromechanical Device Options

Switches

FIG 22 Electromechanical Device Options

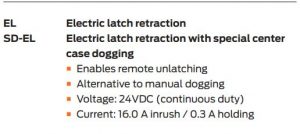

Latch retraction

FIG 23 Latch retraction

FIG 24 Latch retraction

Delayed Egress

FIG 25 Delayed Egress

Miscellaneous

FIG 26 Miscellaneous

FIG 27 Miscellaneous



Matrix shows available options per device type but does not represent compatibly across multiple options.

FIG 28 Available options per device type

FIG 29 Available options per device type



Mechanical Device Options

Dogging

FIG 30 Electromechanical Device Options

Classroom security

FIG 31 Electromechanical Device Options

Environmental

FIG 32 Electromechanical Device Options

Weatherized

FIG 33 Electromechanical Device Options

Touch bar trim

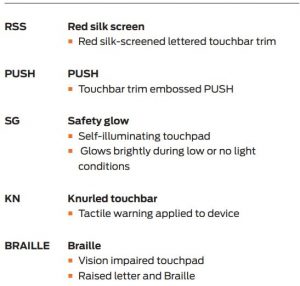

FIG 34 Electromechanical Device Options

Mechanical device options

FIG 35 Mechanical Device Options

FIG 36 Mechanical Device Options



FIG 37 Mechanical Device Options

FIG 38 Mechanical Device Options



Specifications

FIG 39 Specifications

Dimensions

FIG 40 Dimensions
