AW-IHB-0800 Industrial Unmanaged 90W bt PoE Switch
Installation Guide
Contents
INTRODUCTION
The AW-IHB-0800 is an industrial unmanaged switch that supports 4x GbE 90W bt PoE, 2x GbE UTP, and 2x GbE SFP ports. It’s IEEE 802.3af/at/bt compliant and delivers the real full-load output of 360W on 4 PoE ports (up to 90W per port).
This industrial PoE switch also features a wide operating temperature range from -40ºC to 75ºC for harsh environment.
PACKAGE CONTENTS
- 1x PoE switch
- 1x DIN rail bracket
- 1x Quick Installation Guide
- 1x 4-pin terminal block
IMPORTANT:
- Install the converter in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust
- Make sure the ventilation openings on the converter are not blocked.
- Use fiber optic cables and transceiver compliant with the following: Multi-mode: 50/125um, 62.5/125um, 850nm; Single-mode): 9/125um ,1310nm.
- DC input: 48V-56VDC for 30W 802.3at/af. DC input: 52-56VDC for 90W 802.3bt Follow the printed polarity for V+, V-, and Ground.
CONNECTION

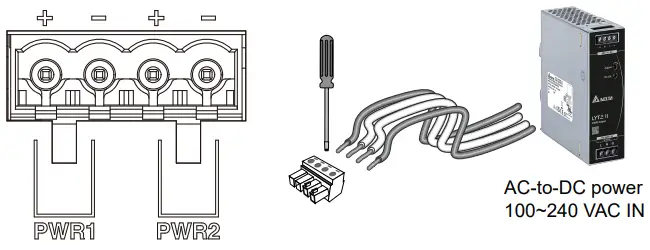

- Pull out the 2-pin terminal block.
- Connect power wires to V+, and V- (54V-56VDC). Use a flat blade screwdriver to secure the wire-clamp screws.
- Connect SFP transceivers to the fiber port.
- Install the 2-pin terminal block, and check power LED.
- The switch must be grounded properly by using a ground wire to connect switch ground screw to earth ground, otherwise, the surge protection level will be greatly reduced.
IMPORTANT:
Ground screw *
Make sure the groaning resistance is lower than 0.50.
Solid or stranded (AWG): 12-24/14-22
Wire strip length: 7-8mm
Torque: 51b-In/0.5Nm/0.56Nm
DC: 48V – 56V for 30W at/af
DC: 52 – 56VDC for 90W bt
Power LEDs
| LED | Color | State | Description |
| Power | Amber | On | The switch is powered on correctly. |
| Off | Not receiving power from power 1 or power 2. | ||
| PoE Link | Amber | On | PD is detected on the designated port. |
| Off | No PD is detected. | ||
| Data Link | Green | On | Tx link is detected. |
| Off | Link is not detected. | ||
| Flashing | Data is being transmitted or received. | ||
| SFP Link | Green | On | Fiber link is detected. |
| Off | Fiber link is not detected. | ||
| Flashing | Data is being transmitted or received. |
All specifications are subject to change without notice.
