VISION VFM-F40 Heavy Duty Motorised Floor Stand Trolley Instruction Manual

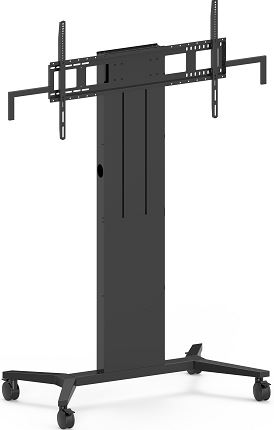

VISION VFM-F40 Heavy Duty Motorised Floor Stand Trolley

Product Information:

• Product Name: VFM-F40
• Product Website: vav.link/vfm-f40/
• A1: 8 8 16mm
• A2: x1 x4 M5x12mm
• A6: x1
• A4: 3

Product Usage Instructions:

1. Measure and mark the desired installation height for the VFM-F40.
2. Position the VFM-F40 brackets according to the measurement, ensuring they are level and aligned.
3. Secure the brackets using the provided M5x12mm screws.
4. Attach the VFM-F40 unit onto the brackets, ensuring a secure fit.
5. If required, adjust the vertical position of the VFM-F40 by sliding it within the range of 873-1573mm.
6. If required, adjust the horizontal position of the VFM-F40 by sliding it within the range of 212-332mm (MAX 8mm).

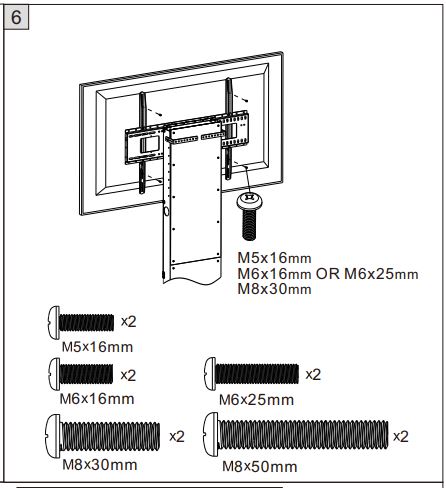

7. If required, adjust the tilt angle of the VFM-F40 by using the provided M5x16mm, M6x16mm, M6x25mm, or M8x30mm screws.
8. If necessary, use additional M5x16mm screws to secure any optional accessories.
9. Ensure all connections and adjustments are tight and secure before use.
10. The VFM-F40 can be mounted using magnets or adhesive strips.
    Follow the instructions provided for your preferred mounting method.
11. For any further assistance or troubleshooting, refer to the user manual or contact customer support.

INSTALLATION INSTRUCTION

FIX TO FLOOR

ADJUSTABLE FEET

FIX TO STAND

OR MAGNET

vav.link/vfm-f40/
