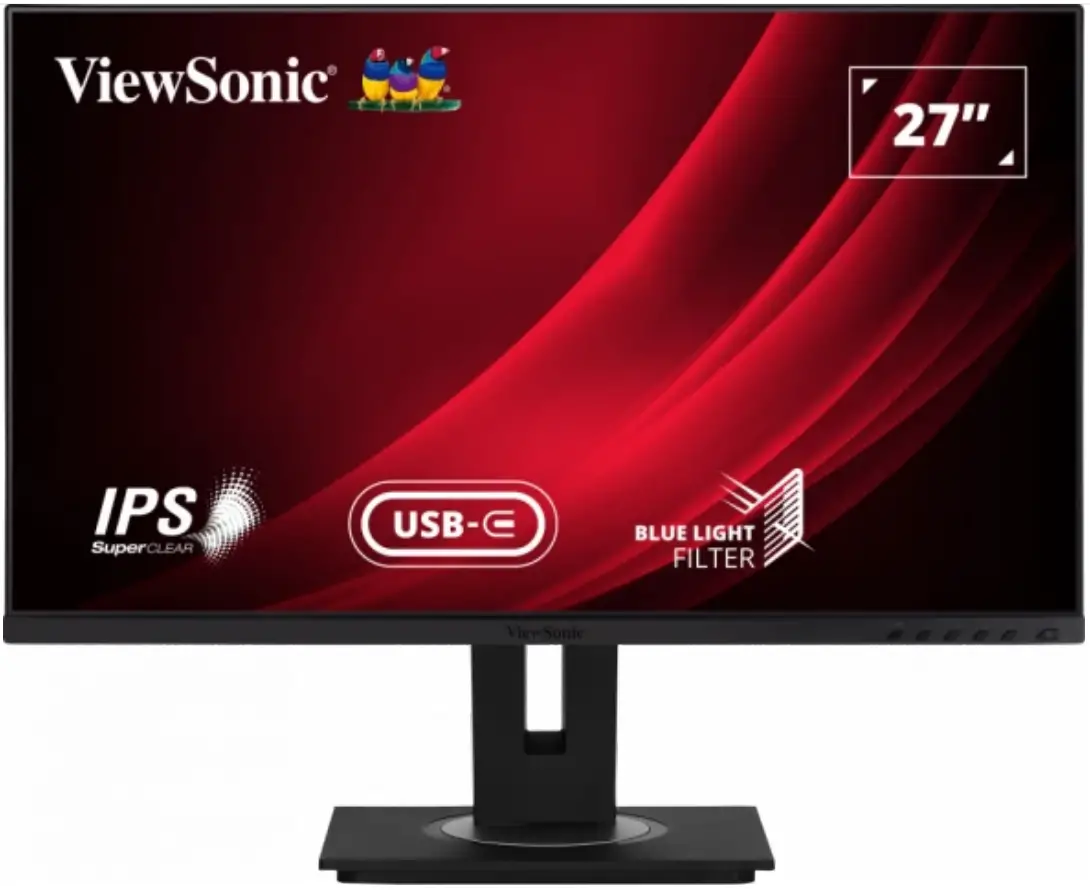

ViewSonic VG2755 Advanced Ergonomics Business Monitor
Key Features
- USB Type-C
- Full HD 1080p resolution
- Frameless bezel
- Super Clear® IPS technology
- VGA, HDMI and DisplayPort inputs
Product Description
Description The ViewSonic VG2755 is a 27’’ (27’’ viewable) 1080P IPS monitor designed to at the modern office space. The monitor comes with a built-in USB Type-C port. Simply charge and display content through a single cable from your device, enabling connection with your laptop by a single USB cable to keep the workstation neat while also use it as a docking monitor. In addition, the monitor is equipped with DisplayPort, HDMI, VGA, and three USB Type-A ports to expand your efficiency. The three-sided frameless bezel design lets you enjoy an uninterrupted view of content across multiple monitors. An advanced ergonomic design offers the widest range of adjustments available for maximum comfort; including pivot, swivel, height adjustment, and an impressive 40° tilt, allowing you to use the monitor while standing or have strategic group discussions around the screen. Packaging is environmentally friendly and offers quick and easy out-of-the-box setup, making VG2755 series monitors perfect for business environments.

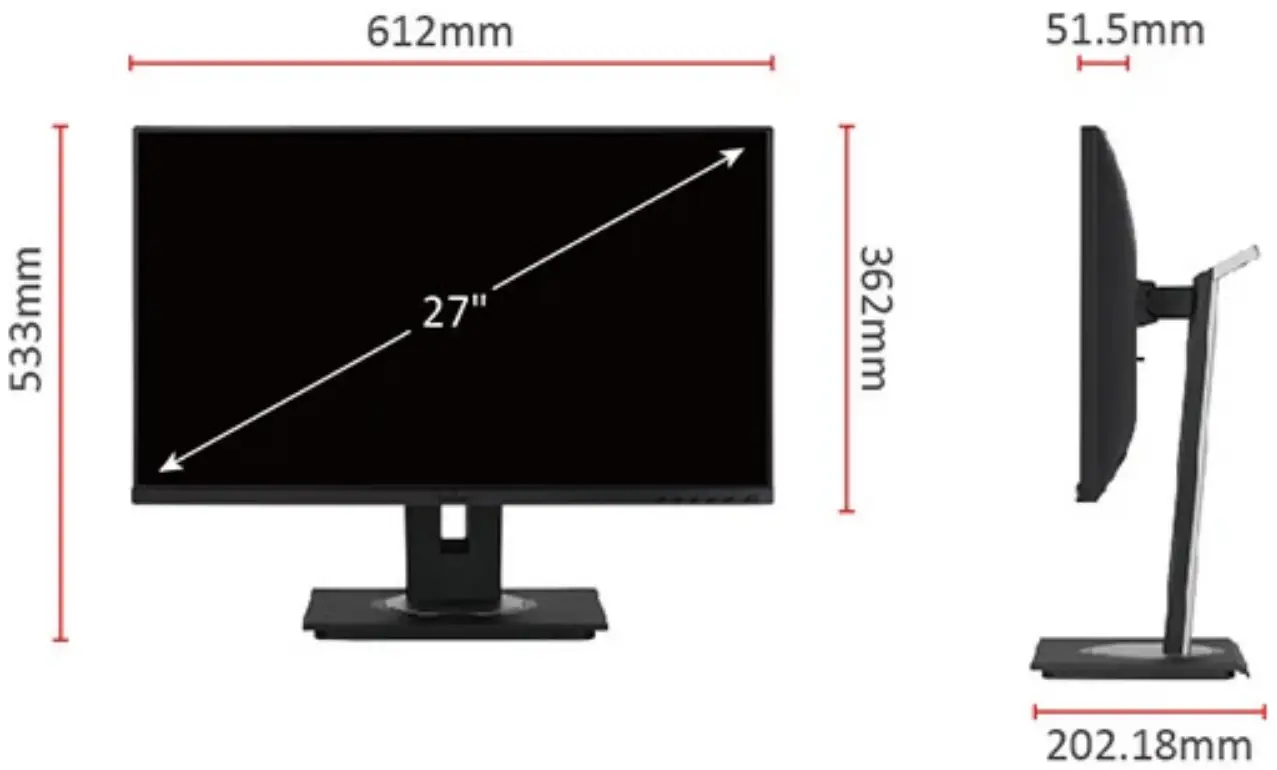

Dimensions

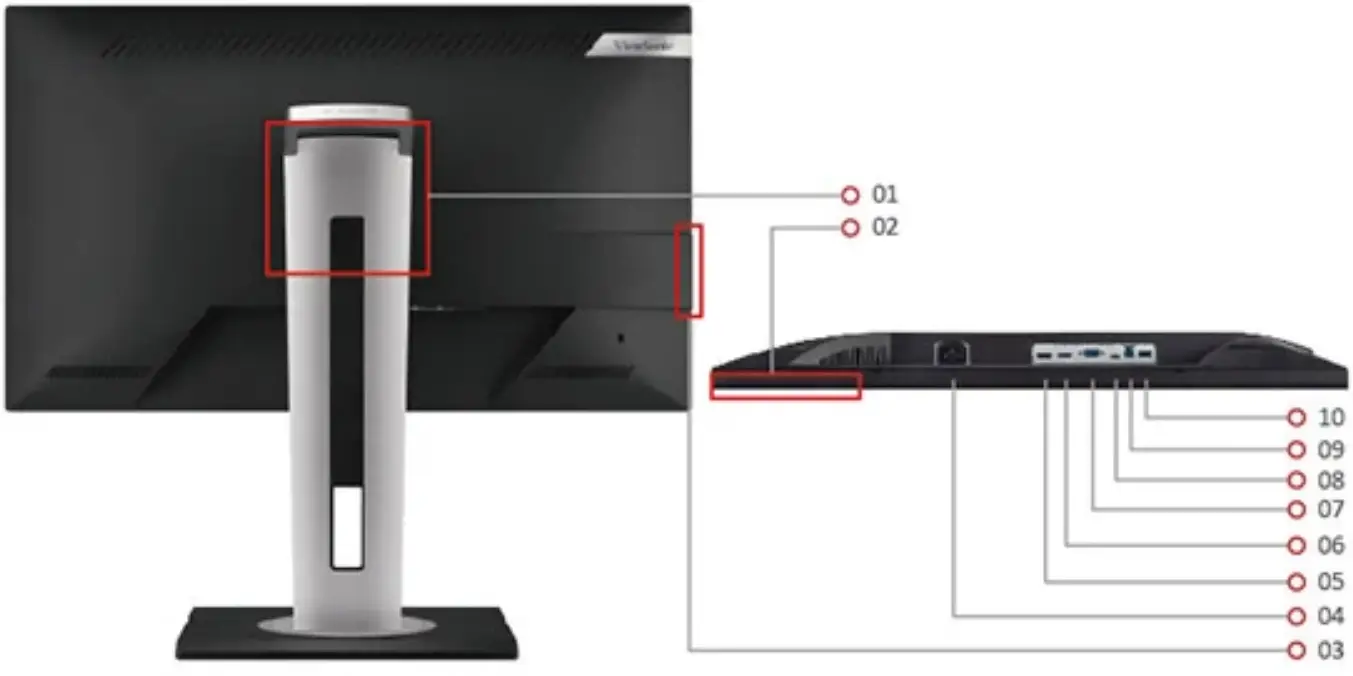

Overview
- VESA Compatible (Wall Mount 100 x 100 mm)
- Menu Control Panel
- USB 3.2 down stream x 2
- AC ln
- DisplayPort
- HDMI
- VGA
- USB Type C
- USB 3.2 up stream
- USB 3.2 down stream
Display
| Display Size (in.): |
27 |
| Viewable Area (in.): |
27 |
| Panel Type: |
IPS Technology |
| Resolution: |
1920 x 1080 |
| Resolution Type: |
FHD (Full HD) |
| Static Contrast Ratio: |
1,000:1 (typ) |
| Dynamic Contrast Ratio: |
50M:1 |
| Light Source: |
LED |
| Brightness: |
250 cd/m² (typ) |
| Colors: |
16.7M |
| Color Space Support: |
8 bit (6 bit + FRC) |
| Aspect Ratio: |
16:9 |
| Response Time (Typical GTG): |
5ms |
| Response Time (GTG w/OD): |
5ms |
| Response Time (Typical Tr+ Tf): |
15ms |
| Viewing Angles: |
178º horizontal, 178º vertical |
| Backlight Life (Hours): |
30000 Hrs (Min) |
| Curvature: |
Flat |
| Refresh Rate (Hz): |
60 |
| Low Blue Light: |
Software solution |
| Flicker-Free: |
Yes |
| Color Gamut: |
NTSC: 72% size (Typ) sRGB: 102% size / 94% coverage (Typ) |
| Pixel Size: |
0.311 mm (H) x 0.311 mm (V) |
| Surface Treatment: |
Anti-Glare, Hard Coating (3H) |
Compatibility
| PC Resolution (max): |
1920×1080 |
| Mac® Resolution (max): |
1920×1080 |
| PC Operating System: |
Windows 7/8/8.1/10 certified; macOS tested |
| Mac® Resolution (min): |
1920×1080 |
Connector
| VGA: |
1 |
| USB 3.2 Type A Down Stream: |
3 |
| USB 3.2 Type B Up Stream: |
1 |
| USB 3.2 Type C Up Stream; DisplayPort Alt mode : |
1 (60W power cha |
| HDMI 1.4: |
1 |
| DisplayPort: |
1 |
| Power in: |
3-pin Socket (IEC C14 / CEE22) |
Audio
| Internal Speakers: |
2Watts x2 |
Power
| Eco Mode (Conserve): |
13W |
| Eco Mode (optimized): |
15.6W |
| Consumption (typical): |
19.1W |
| Consumption (max): |
22.54W |
| Voltage: |
AC 100-240V |
| Stand-by: |
0.3W |
| Power Supply: |
Internal Power Supply |
Additional Hardware
| Kensington Lock Slot: |
1 |
| Cable Organization: |
Yes |
Controls
| Physical Controls: |
Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power) |
| On Screen Display: |
Input Select, Audio Adjust, View Mode, Color Adjust, Manual Image Adjust, Setup Menu |
Operating Conditions
| Temperature: |
32°F to 104°F (0°C to 40°C) |
| Humidity (non-condensing): |
20% to 90% |
Wall Mount
| VESA Compatible: |
100 x 100 mm |
Input Signal
| Frequency Horizontal: |
RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz, Type C: 15 ~ 82KHz |
| Frequency Vertical: |
RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, DisplayPort (v1.2): 24 ~ 75Hz, Type C: 24 ~ 75Hz |
Video Input
| Digital Sync: |
TMDS – HDMI (v1.4), PCI-E – DisplayPort (v1.2), Micro-Packet – Type C |
| Analog Sync: |
Separate/Composite/SOG – RGB Analog |
Ergonomics
| Height Adjust (mm): |
130 |
| Swivel: |
120º |
| Tilt (Forward/Back): |
-5º / 40º |
| Pivot (Right/Left): |
90º / 90º |
Weight (Imperial)
| Net (lbs): |
16.5 |
| Net Without Stand (lbs): |
11.2 |
| Gross (lbs): |
23.6 |
Weight (Metric)
| Net (kg): |
7.5 |
| Net Without Stand (kg): |
5.1 |
| Gross (kg): |
10.7 |
Dimensions (Imperial) (W x H x D)
| Packaging (in.): |
27.2 x 16.9 x 8.6 |
| Physical (in.): |
24.1 x 15.99~20.99 x 8 |
| Physical Without Stand (in.): |
24.1 x 14.2 x 2 |
Dimensions (Metric) (W x H x D)
| Packaging (mm): |
692 x 430 x 218 |
| Physical (mm): |
612 x 406.19~533.24 x 202 |
| Physical Without Stand (mm): |
612 x 362 x 52 |
General
| Regulations: |
c TUV us, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, Ukr SEPRO, RCM, GEMS, BIS |
| PACKAGE CONTENTS: |
VG2755 x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1 |
| Recycle/Disposal: |
Please dispose of in accordance with local, state or federal laws. |
| Warranty: |
*Warranty offered may differ from market to market |
| Power Management: |
Energy Star standards, EPEAT |
