ViewSonic PS502W Series DLP Projector User Guide

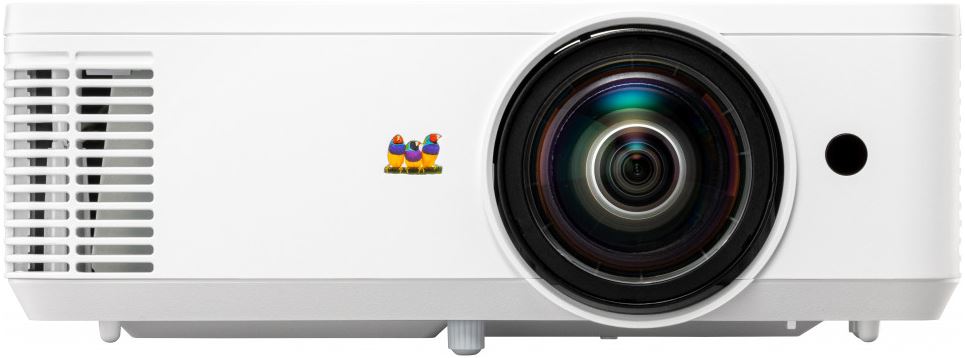

ViewSonic PS502W Series DLP Projector

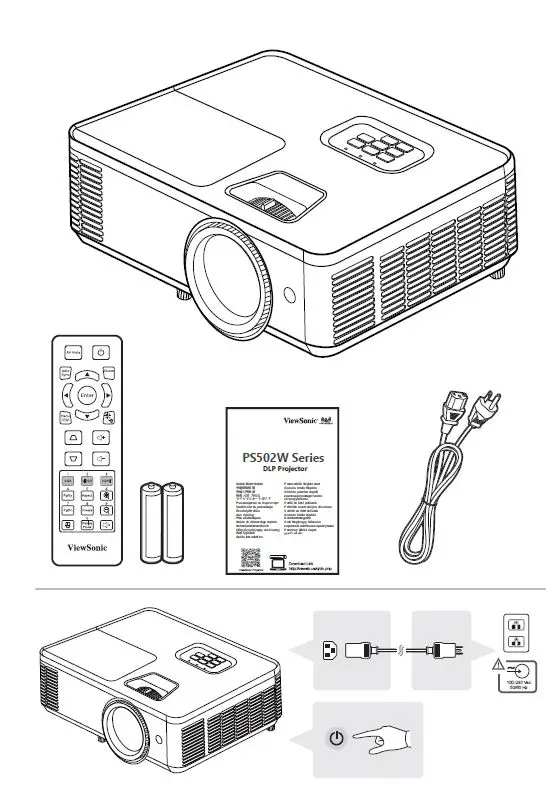

WHAT’S IN THE BOX

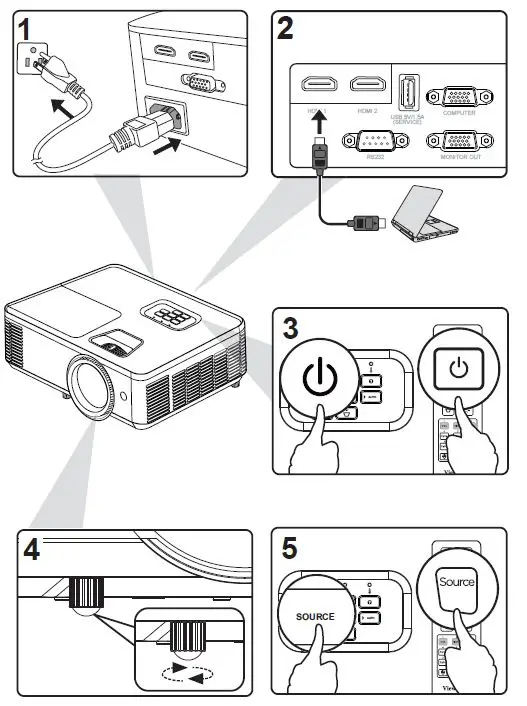

POWER

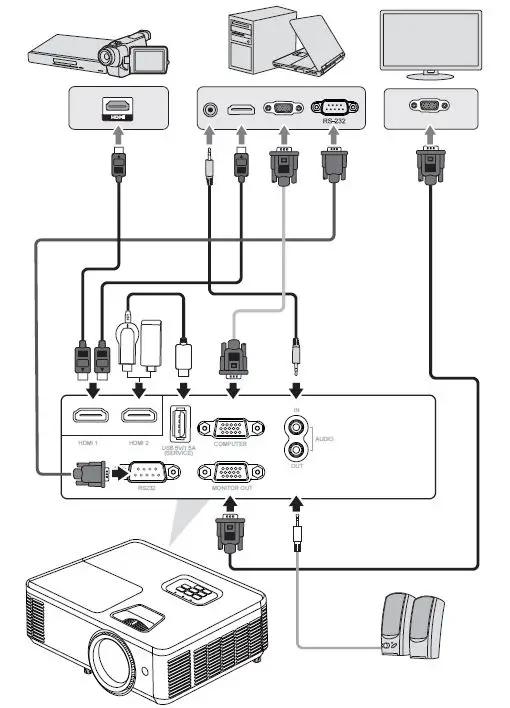

PLUGINS

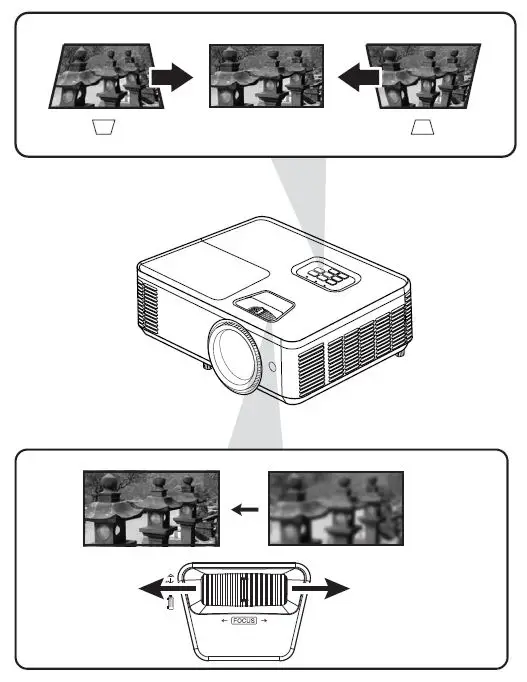

USING INSTRUCTIONS

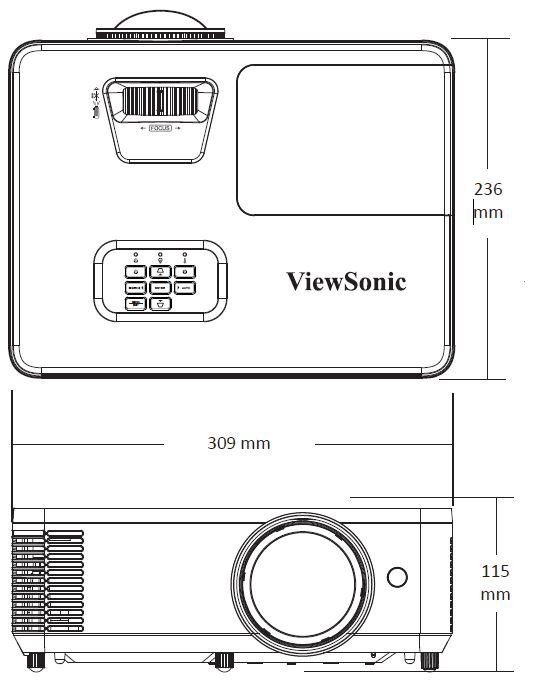

DIMENSIONS

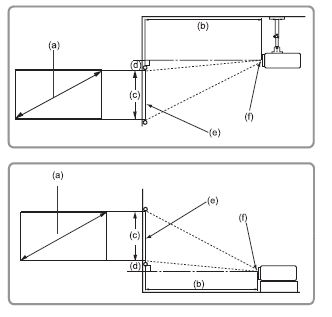

(a) Screen ^ŝnje		ϭϲ͗ϭϬ /ŵĂŐĞ ŽŶ Ă ϭϲ͗ϭϬ ^ĐƌĞĞŶ
		(ď) ProjecƟon distance				(c) ImĂŐe heŝŐŚt		(d) VerƟĐĂů oīset
		min.		max.
inch	mm	inch	mm	inch	mm	inch	mm	inch	mm
40	1016	17.67	449	17.67	449	21.20	538	2.63	67
60	1524	26.51	673	26.51	673	31.80	808	3.94	100
80	2032	35.34	898	35.34	898	42.40	1077	5.26	134
90	2286	39.76	1010	39.76	1010	47.70	1212	5.91	150
100	2540	44.18	1122	44.18	1122	53.00	1346	6.57	167
120	3048	53.02	1347	53.02	1347	63.60	1615	7.89	200
150	3810	66.27	1683	66.27	1683	79.50	2019	9.86	250
200	5080	88.36	2244	88.36	2244	106.00	2692	13.14	334
250	6350	110.45	2805	110.45	2805	132.50	3365	16.43	417
300	7620	132.30	3360	132.30	3360	159.00	4039	19.70	500

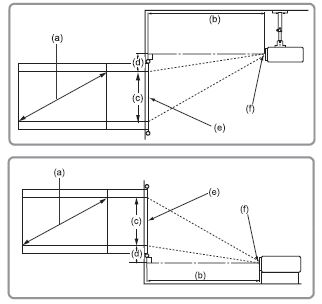

(a) Screen ^ŝnje		ϭϲ͗ϭϬ /ŵĂŐĞ ŽŶ Ă ϰ͗ϯ ^ĐƌĞĞŶ
		(ď) ProjecƟon distance				(c) ImĂŐe heŝŐŚt		(d) VerƟĐĂů oīset
		min.		max.
inch	mm	inch	mm	inch	mm	inch	mm	inch	mm
40	1016	16.67	423	16.67	423	20.00	508	2.48	63
60	1524	25.01	635	25.01	635	30.00	762	3.72	94
80	2032	33.34	847	33.34	847	40.00	1016	4.96	126
90	2286	37.51	953	37.51	953	45.00	1143	5.58	142
100	2540	41.68	1059	41.68	1059	50.00	1270	6.20	157
120	3048	50.02	1270	50.02	1270	60.00	1524	7.44	189
150	3810	62.52	1588	62.52	1588	75.00	1905	9.30	236
200	5080	83.36	2117	83.36	2117	100.00	2540	12.40	315
250	6350	104.20	2647	104.20	2647	125.00	3175	15.50	394
300	7620	124.80	3170	124.80	3170	150.00	3810	18.60	472

It is recommended that if you intend to permanently install the projector, please physically test the projection size and distance using the actual projector in situ before you permanently install it.
