VIDEX VLF-A105RH LED Rechargeable Flashlight User Manual

USER’S MANUAL
VLF-A105RH1200 MAX LUMENS
Beam distance
135m

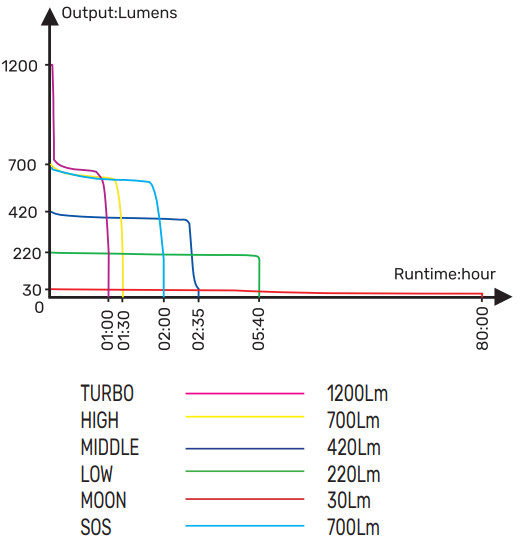

TECHNICAL PARAMETERS

		TURBO*	HIGH	MIDDLE	LOW	MOON	SOS
1		1200 Lm	700Lm	420Lm	220Lm	30Lm	700Lm
2		1h	1h 30min	2h 35min	5h 40min	80h	2h
3		135m	104m	80m	57m	30m	104m
4		5200cd	2680cd	1608cd	816cd	300cd	2680cd
5		5000 K
6		LUMINUS SST40, 1014
7		Li-ion 18650, 3.7V
8		Type-C, 5V 0.8A
9		4h
10		IP66
11		1m
12		127×28 mm
13		83 g (without battery and headband)

TECHNICAL PARAMETERS

1. Output.
2. Runtime.
3. Distance.
4. Intensity.
5. Correlated color temperature.
6. LED type.
7. Compatible battery.
8. Charging port type, voltage and current.
9. Charging time.
10. Dust and moisture protection level.
11. Impact resistance.
12. Product sizes.
13. Product weight (without battery and headband).
14. Color: black.
15. Optical system type: textured reflector
16. Materials: Aviation anodized aluminum, tempered glass.

Note: Runtime, Distance, Intensity and Charging time results tested with a stock battery Videx 18650 2200mAh. The above mentioned parameters may vary between environments and actual batteries used.

MAIN FEATURES

Maximum brightness 1200 lumens in a compact body;
Transformable body construction;
Nylon headband with fast release holder included;
Brightness stabilization system prevents fl uctuations of brightness;
Water resistance IP66.

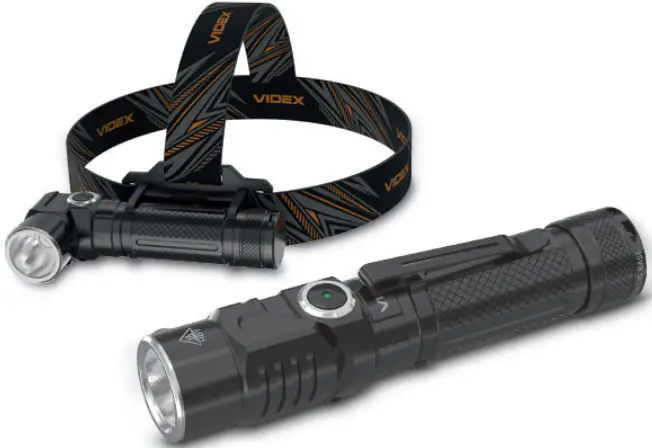

INCLUDED

• Flashlight VLF-A105RH;
• Headband 3. Li-ion battery Videx 18650 2200mAh;
• Charging cable;
• Lanyard;
• Quick release holder;
• User’s manual.
• Spare O-rings;
• Metal clip;

LIGHTING MODES

Turbo – maximum brightness
High – high brightness
Middle – medium brightness
Low – low brightness
Moon – minimum brightness
SOS – emergency signal

OPERATING INSTRUCTION

ON/OFF – press and hold the button for 0.5 seconds to turn on/off the light;
Modes selection – when the light is switched on, shortly press the button to switch between modes cyclically.
SOS mode – press and hold the button for 3 seconds. Short press again to exit SOS mode.
Lock/Unlock – with the light switched off , double press the button continuously within 0.5 seconds to lock the flashlight. The flash light will respond by appropriate double flicker. Double press again to unlock.
The flashlight automatically memorizes the last selected lighting mode (except the SOS mode) and applies it next time when turned on.

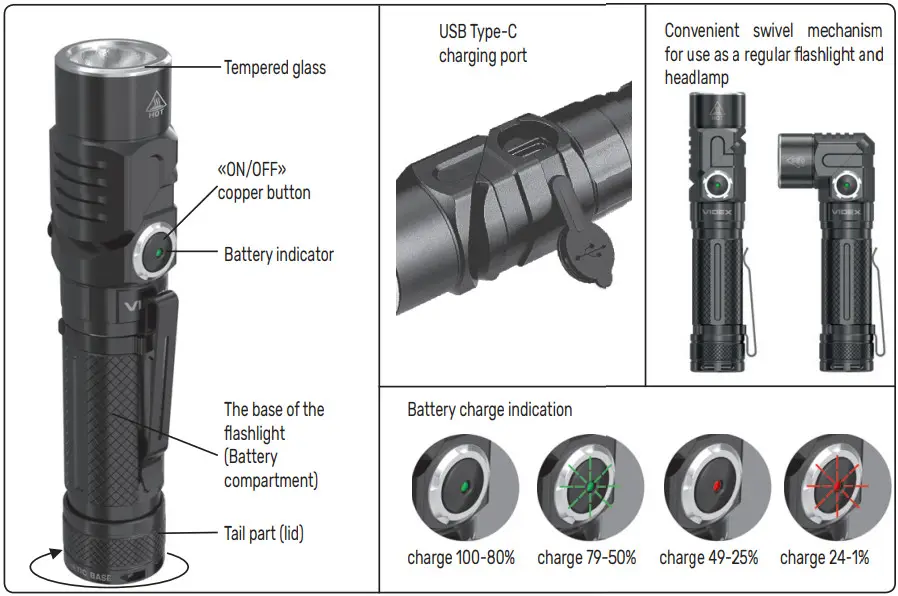

BATTERY STATUS INDICATION

With the light switched off, shortly press the button to see the battery status. The indication will last for 3 seconds. The battery status is also continuously displayed when the light is turned on.
Continuous green light – 100-80% charge;
Flashing green light – 79-50% charge;
Continuous red light – 49-25% charge;
Flashing red light – critical charge 24-1%.

CHARGING

Plug the USB-A socket of the charging cable into electrical outlet.
Switch off the light, open the protective cover and connect the charging cable to the fl ashlight port.
When charging, the indicator glows red. When fully charged, the indicator glows green.
After a full charge, unplug the charging cable and close the protective cover to prevent water and dust from entering the flashlight body.
©The original batteries are supplied charged and can be used immediately after purchase, however it is recommended that the battery be fully charged before first use. The battery needs to be charged in time before it is completely discharged. During long periods of storage, it is recommended to keep the battery charging level at about half capacity to extend its service life.

BATTERY REPLACEMENT

a) Unscrew the bottom lid of the flashlight counterclockwise;
b) Insert the battery with the (+) contact towards the head of the flashlight;
c) Screw the base all the way in and test the fl ashlight.

MAINTENANCE AND SAFETY INSTRUCTIONS

• For long-term storage, it is necessary to remove the batteries from the flashlight.
• It is recommended to regularly lubricate the rubber seals and threaded parts of the flashlight to prevent premature wear and ensure the waterproof housing. If the rubber rings are damaged, they must be replaced.
• Lock the flashlight to avoid accidental activation during carrying and storage;
• ATTENTION. Avoid direct light into eyes as it may cause the eyes damage.
• The flashlight can accumulate a signifi cant amount of heat when used for a long time, which can cause the body to become hot. Therefore, be careful to avoid burns.
• It is forbidden to shine the flashlight in a critical proximity to easily flammable substances in order to avoid fire.
• Do not use batteries other than those specifi ed in the technical specifi cations.
• Do not disassemble the flashlight head as this may compromise performance and void the warranty.
• Keep out of the reach of children.

WARRANTY
The warranty for the flashlight is 3 years, for the battery – 1 year.
The warranty does not cover accessories. The LED source inside the flashlight is not replaceable. If the LED fails, the whole flashlight should be replaced. During the warranty period, a faulty flashlight and battery can exchanged or returned with the prove of purchase and all accessories saved.
The following does not apply with the scope of limited warranty:

• Misuse the product and cause the products integral components damage;
• Unauthorized disassemble or the presence of deep mechanical damage to the product;
• Damage due to force majeure.

ENVIRONMENTAL PROTECTION

Pursuant to the provisions of the WEEE Act, it is forbidden to put waste equipment marked with the symbol of a crossed bin together with other waste.
The user, wishing to get rid of electronic and electrical equipment, is obliged to return it to a waste equipment collection point. There are no hazardous components in the equipment that have a particularly negative impact on the nvironment and human health.
The producer shall not be responsible for any damage resulting from the failure to follow above instructions. The producer reserves the right to make updates of this user’s manual.

https://videx.com.pl/
Producer/Producent: Allegro Opt Sp. z
o.o., Handlowa 23, 05-120 Legionowo,
Poland. Made in P.R.C.
