VEVOR 2T Folding Type Hydraulic Auto Mobile Engine Hanging Machine Instructions

VEVOR 2T Folding Type Hydraulic Auto Mobile Engine Hanging Machine

The maximum load is less than or equal to 2000kg

Product Information

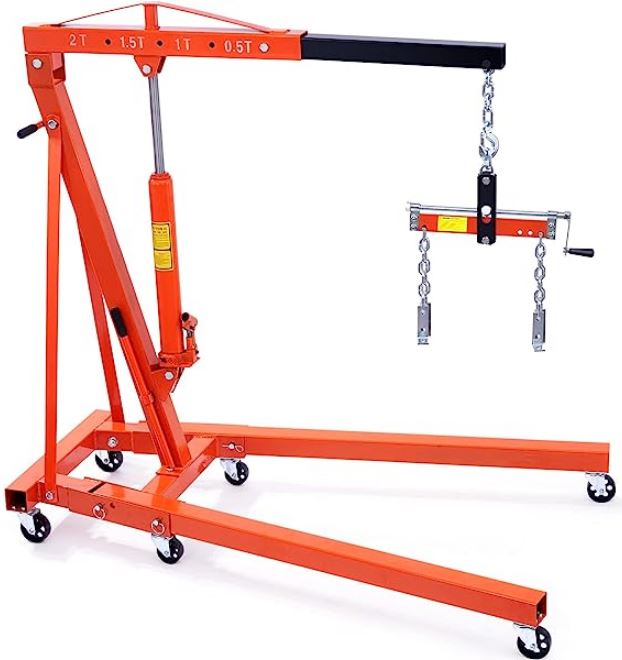

The product is a 2T folding type hydraulic automobile engine hanging machine. It is designed for lifting heavy objects with a maximum load of 2000kg. The machine comes with various components including a base, bolt hole, universal wheels, folding leg, column, pull plate, lifting arm, hook, jack, hand press bar, and various nuts and screws.

Product Usage Instructions

Warning

• The machine should be placed on a solid and level surface to prevent overloading.

Lifting

1. Hook the crane hook to the lifting objects and secure the rope to prevent sliding.
2. Use the handle to tighten the pressure relief valve in a clockwise direction.
3. Place the crane hook in the correct position and operate the handle to lift the objects to the desired height.

Decline

1. Rotate the handle counterclockwise to open the pressure relief valve.
2. Allow the lifting object to steadily decline. Avoid rotating the release valve for more than half a circle.

Discharging Air in the Hydraulic System

1. Remove the oil hole oil plug to let air out.
2. Loosen the release valve and quickly move the handle up and down several times.

Attention: Air may enter the hydraulic system during transportation or use. It is important to discharge the air to ensure normal operation of the jack.

Use matters needing attention

Lifting

• The crane hook in lifting objects, Hook the rope, To prevent the sliding of lifting objects.
• Use the handle to tighten the pressure relief valve in a clockwise direction.
• The crane hook should be placed in the correct position, Up and down the operating handle, and rose to the desired height.

Decline

A rotating handle with a slow counterclockwise direction, To open the pressure relief valve, lifting thing’s steady decline, release valve rotation is generally not more than half a circle.

Matters needing attention

• Air in the process of transportation or use will enter the hydraulic system and affect the normal use of the jack,So the air should be discharged.

Discharge air in the hydraulic system

• Remove the oil hole oil plug to let air out.
• Loosen release valve,Quick to suppress the handle up and down several times.

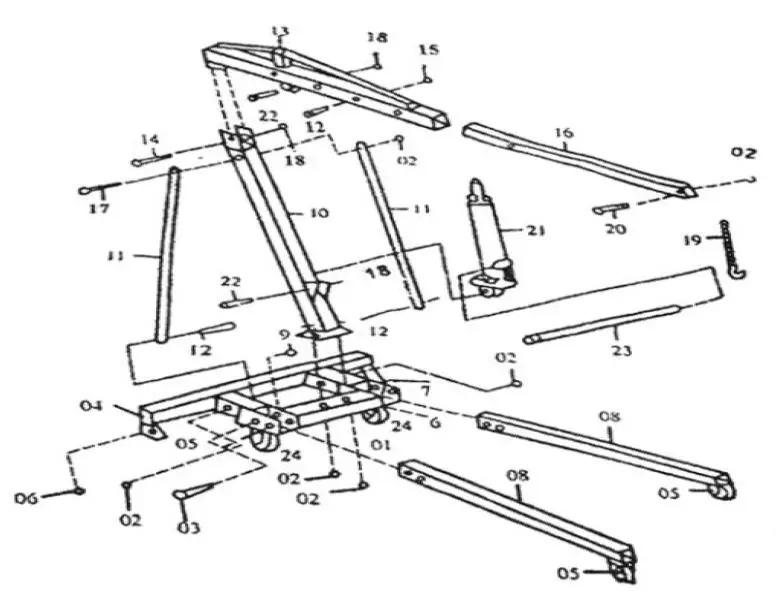

Accessories table

Component table				Standard parts list
number	name	number		number	name	number
01	base	0ne		02	M16*100mmnuts M16*90mmnuts	Two Two
03	Bolt hole	Four		04	M8x*16mm Squarehead screws	Twenty-four
05	4inch universal wheel	Four		07	M8*15MM    Flat head screws	0ne
06	3inch universal wheel	Two		09	M16*x90nuts	Two
08	Folding leg	Two		12	M16*100mm nuts	One
10	Column	0ne		14	M16 * 100 mm screw	One
11	Pull plate	Two		15	M16nut	eight
13	Lifting arm M16 * 80 mm screw	One One		17 18	M16*80nuts M16 nut	One One
19	a hook	One		20	M12*70mm nuts	0ne
21	8 ton jack	One		22	M16 nut	Two
23	Hand press bar	0ne

Warning

1. The resurgence of the heavy weight lifting machines should be placed on a solid level of the cane on the ground; overloading is strictly prohibited.

Maintain

• One. Refueling: Place the jack in the lowest position, and take off the oil plug, the oil liquid should be about 8 mm from the oil hole liquid, then install the oil plug.
• Two. Lubrication: Every three months to support the shaft and a link shaft lubricating oil boom.
• Three. Rustproof: Wipe the rust sports with a tarpaulin, Hoisting machine is not applicable, should be the jack in the lowest position.
