TMC156 Medical Grade Touch Monitor
Instruction Manual
Embedded in your success, Embedded in your better life World-leading provider of embedded/1°T products and solutions
Contents
Product Brief Introduction
Chengdu Vantron offers medical grade closed-frame touch monitors that vary in screen size from 15.6 inches to 27 inches and resolution from 1280 x 1024 to 1920 x 1080. When used with Vantron industrial panel PCs, such touch monitors will offer flexible solutions for customers to meet the requirements of application in different scenarios, in particular in the medical health area.
TMC156 medical grade touch monitor applies 15.6-inch screen and features quick response time, large visible area and viewing angle to optimize the display performance. The screen is designed to be anti-fingerprint, and users have the option to equip the touch screen with anti-glare and anti-reflection coatings that offer excellent visual experience and improve human-machine interaction accuracy. Moreover, TMC156 is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts. The OSD controls allow users to change settings of the display in a more convenient manner to enhance user experience.

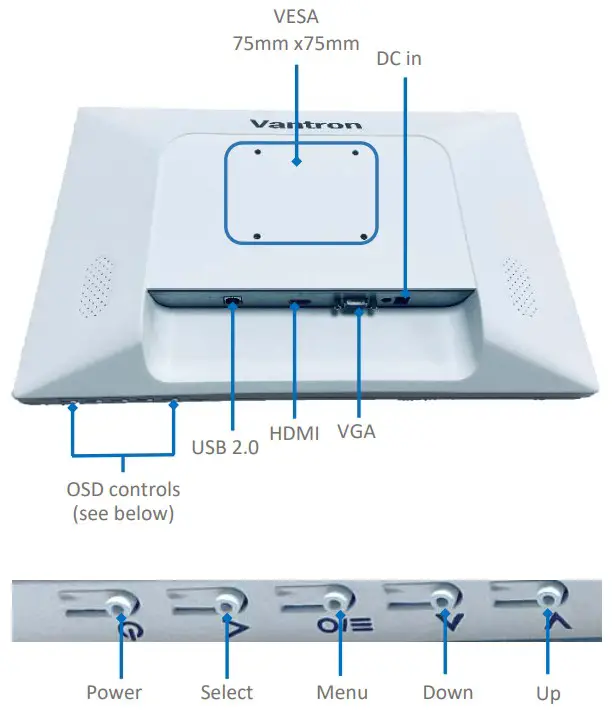

Exterior and Features
TMC156
15.6″ TFT LCD, 10-point PCAP touch screen
Full HD video output
AR/AG touch screen available
Flexible installation
Excellent longevity (50,000H MTBF)
Compact design, easy integration
TMC156 Datasheet
| TMC156 | ||
| Display | Diagonal size | 15.6″ TFT LCD with LED backlight |
| Aspect ratio | 16:09 | |
| Resolution | 1920 x 1080 | |
| Brightness | 300 nits | |
| Active area | 344.232mm x 193.536mm | |
| Contrast ratio | 500:1 | |
| Number of colors | 16.7 million | |
| Response time | 10ms | |
| Viewing angle | Horizontal: 170° | |
| Vertical: 160° | ||
| Touch panel | Touch point | 10-point PCAP touch screen |
| Touch control | Finger, stylus pen | |
| Cover lens thickness | 2mm | |
| Surface treatment | Anti-fingerprint, tempered glass (Optional: Anti-glare / Anti-reflection) | |
| Light transmittance ratio | >85% | |
| Touch communication interface | USB 2.0 | |
| Video | Video interface | 1 x VGA 1 x HDMI |
| Mechanical | Dimensions | 381.2mm x 248.1mm x 47.3mm |
| Weight | 3.7kg | |
| Installation | VESA mount (75 x 75mm) | |
| OSD | Built-in OSD (set up with OSD keys) Controls: Menu, Up, Down, Select, Power | |
| Power | Power input | 12V DC adapter |
| Power consumption | <14W | |
| Software Environment Condition |
Language | Chinese and English |
| Adjustment of brightness, contrast ratio and color temperature | Supported | |
| Temperature | Operating: 0°0-+40°C Storage: -20°C-+60°C | |
| Humidity | 10%-90% RH (non-condensing) | |
| mTBF | 50,000 hours | |
| Warranty | 3 years | |
| ESD | ESD: ±4KV (contact) and ±8KV (air) | |
| Certificate | CCC, FCC, CE, UL | |

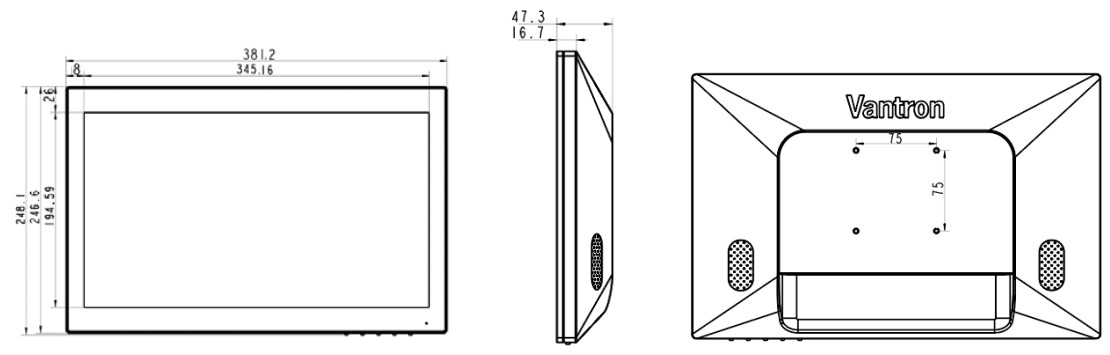

Product Outlines
Accessories and Order Information
| Accessories | ||
| TMC156 | Power cable | 1 pc |
| Adapter | 1 pc | |
| USB cable | 1 pc | |
| HDMI/VGA cable | 1 pc for each | |
| Order Info | TMC156 |
| -x | -1: Anti-glare (AG) |
| -2: Anti-reflection (AR) | |
| -3: AG + AR treatment | |
| Example | -1: Anti-glare touch panel |
