IN8315
ULTI Rack+
Instruction Manual
Contents

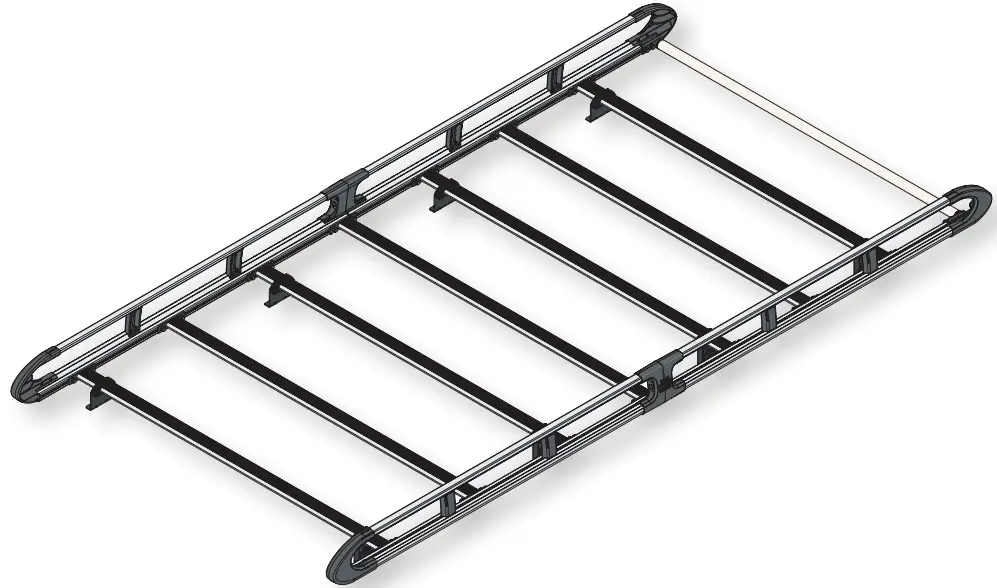

ULTI Rack Roof Racks
Fitting Instructions – Read instructions carefully before fitting and follow them for correct use
[email protected]
UK +44 (0) 1392 368 351
THIS INSTRUCTION COVERS THE FOLLOWING MODELS – CHECK YOU ARE FITTING THE CORRECT MODEL BEFORE PROCEEDING
VGUR-244
Nissan NV400: 2010-2021
Nissan Interstar: 2022 on
Renault Master: 2010 on
Vauxhall Movano: 2010-2021
L2H2 (MWB)
Twin Rear Doors
TOOLS REQUIRED
Loosely secure the front internal brackets. Where a sliding door is present remove the 2X star drive screws, place bracket in position and refit star drive screws as shown in fig.1. (Do not remove door rail bracket).
Where a sliding door is not present insert the M6 1/4 turn nut inserts into the positions shown in fig.2. Then place the bracket in position and loosely bolt into the inserts using M6x20 bolts and M6 washers.
This FITTING INSTRUCTION is the property of VAN GUARD ACCESSORIES LTD. and must not be used for manufacturing purposes, copied nor communicated in any way to third parties without written permission from VAN GUARD ACCESSORIES LTD.
IN8315_A (CN:NR)
