Installation manual
Contents

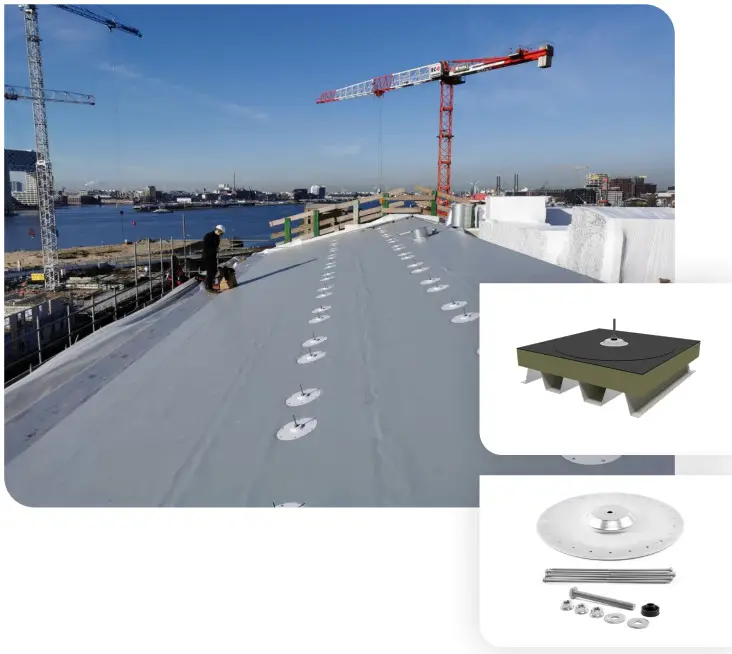

VALK747600 Solar Systems
ValkSolarFix
Mounting in steel sheet roof with screws
Version 01 | May 2023
for flat and pitched roofs
Installation manual ValkSolarFix / Mounting in steel sheet roof with screws
| Needed tools | |||
| Wrench 15 + 17 |  |
Drill |  |
| Fixation tool 15 L=200 mm |  |
Torx Bit TX25 25 mm |  |
Separate components
| Article number | Description | |
| 747600 | ValkSolarFix Low h=20mm |  |
| 747601 | ValkSolarFix Low h=20mm – PVC coated* * On request only, not in stock as standard. |
 |
| 747605 | ValkSolarFix Low – PVC cover |  |
| 747604 | ValkSolarFix – Ss. mounting set M10 + sealing ring |  |
| 747640 | ValkSolarFix – Roof screws 4,8x60mm* – Steel 6x * Height from top edge of roof covering to top edge of high crown/cannalure steeldeck: max 30mm |
 |
| 747641 | ValkSolarFix – Roof screws 4,8x90mm* – Steel 6x * Height from top edge of roof covering to top edge of high crown/cannalure steeldeck: max 60mm |
 |
| 747642 | ValkSolarFix – Roof screws 4,8x140mm* – Steel 6x * Height from top edge of roof covering to top edge of high crown/cannalure steeldeck: max 110mm |
 |
| 747643 | ValkSolarFix – Roof screws 4,8x240mm* – Steel 6x * Height from top edge of roof covering to top edge of high crown/cannalure steeldeck: max 210mm |
 |
| 747644 | ValkSolarFix – Roof screws 4,8x280mm* – Steel 6x * Height from top edge of roof covering to top edge of high crown/cannalure steeldeck: max 250mm |
 |
| 747645 | ValkSolarFix – Roof screws 6,3x330mm* – Steel 6x * Height from top edge of roof covering to top edge of high crown/cannalure steeldeck: max 300mm |
 |
| 747695 | ValkSolarFix fixation tool 15 L-200mm |  |
1. ValkSolarFix + SS mounting set + seal
4. Needed amount of screws*
– 3 on 1 crown
5. Use socket wrench 8mm
6. Advice installation membrane:
For the watertight finishing of the consoles please contact your certified roofer.
Advice: first degrease the ValkSolarFix before making a watertight seal.
Version 01 | May 2023
