VT-12004 LED Waterproof Fitting Light
Product Information

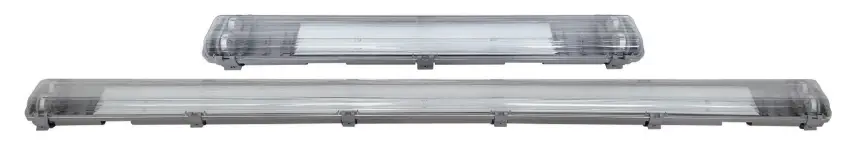

The LED Waterproof Fitting is a high-quality lighting fixture designed for both indoor and outdoor use. It comes in two models: VT-12004 and VT-12005, with SKUs 7882, 7883, 7884, and 7885. The VT-12004 model supports a maximum of 2x10W bulbs, while the VT-12005 model supports a maximum of 2x24W bulbs. The product has a lifespan of 20,000 hours and is made of high-quality PS+HIPS+ABS or PS+HIPS+PC materials. The unit size for the VT-12004 model is 666x94x55mm, while the VT-12005 model is 1576x94x55mm. The input voltage for both models is AC 220-240V, 50Hz.
TECHNICAL DATA
|
MODEL |
SKU |
MAX.WATTS |
BEAM ANGLE |
LIFE SPAN |
MATERIAL |
UNIT SIZE |
INPUT VOLTAGE |
| VT-12004 | 7882
7883 |
2x10W
Tube Not included |
120° | 20,000 Hours | PS+HIPS+ABS |
666x94x55mm |
AC 220-240V,50Hz |
|
VT-12005 |
7884 7885 |
2x24W
Tube Not included |
120° |
20,000 Hours |
PS+HIPS+PC |
1576x94x55mm |
AC 220-240V,50Hz |
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.
WARNING
- Please make sure to turn off the power before starting the installation.
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
- Installation should only be done by a certified electrician.
This marking indicates that this product should not be disposed of with other household wastes.
Caution: risk of electric shock.
PRODUCT FEATURES
- Transparent PS diffuser with higher light transmittance.
- Opaque HIPS housing with good mechanical performance.
- Input on one side of the housing.
SAFETY INSTRUCTIONS
- Turn the power off.
- Do not discharge with general household waste.
- Return only to the specified recycling points in your area.
NOTICE
- Starter not required
- Direct Installation
- Tubes not included
LAMP REPLACEMENT INSTRUCTION
- Unlock the clips and open the diffuser to replace or install the tubes.

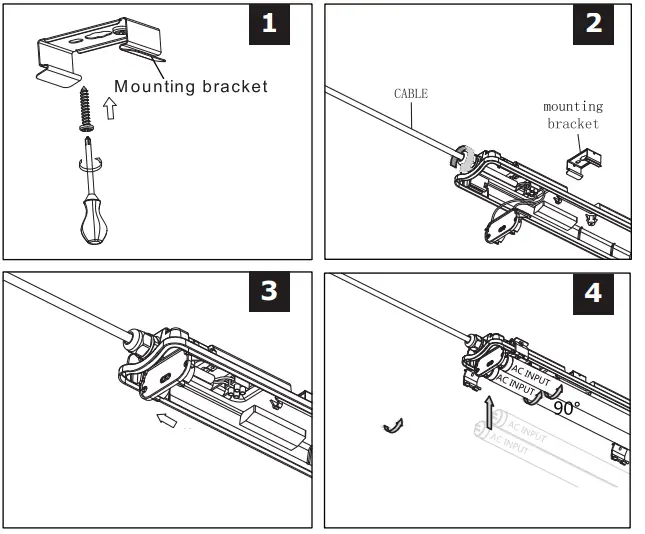

INSTALLATION DIAGRAM
INSTALLATION INSTRUCTIONS
- Fix the mounting bracket.
- Mount Waterproof Lamp into mounting brackets put in cable and connect to the connector
- “Click” Assembling lamp Holders
- Install the LED Lamp

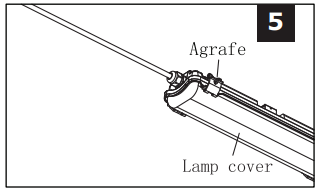

- Assemble Lamp cover with agrafes
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected] FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC WEST EUROPE LTD. GROUND FLOOR, 71 LOWER BAGGOT STREET, DUBLIN 02, IRELAND D02 P593
