Meaningful Innovation

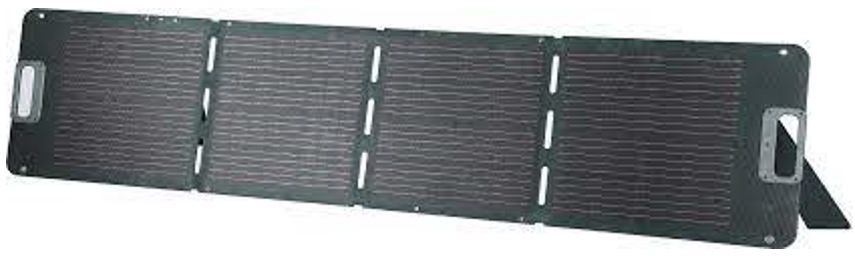

1566 160W Folding Solar Panels
User Guide
Contents
LISTING DETAILS
| Model No: | VT-10160 |
| SKU Code: | 11566 |
| EAN Code: | 3.80016E+12 |
MASTER BOX PACKAGING
| Qty Per Pallet: | 200 pcs |
| Gross Weight: | 9KG±0.5KG |
| Folded Size: | 680*468*54mm±5mm |
| Expanded Size: | 1670*680*25±5mm |
GENERAL DATA
| Standard Working Power | 160W(-5%,+10%) |
| Standard working Voltage | 17.6V |
| Standard Working Current | 9.08A |
| Open Circuit Voltage Voc (@STC) | 21.2V |
| Short Circuit Current Isc(@STC) | 9.75A |
OUTPUT SOLAR CHARGER BOX
| DC 5521 Working Power | 160W(-5%,+10%) |
| DC 5521 Working Voltage | 19.3V(-5%,+10%) |
| Typc-C | 5V/3A,9V/3A,12V/3A,15V/3A,17.6V/2.25A. 45W |
| USB-A | 5V/2.4V |
| USB-A(QC3.0) | 5V/3A,9V/2A,12V1.5A 18W |
Folding method: 1 * 4 fold
