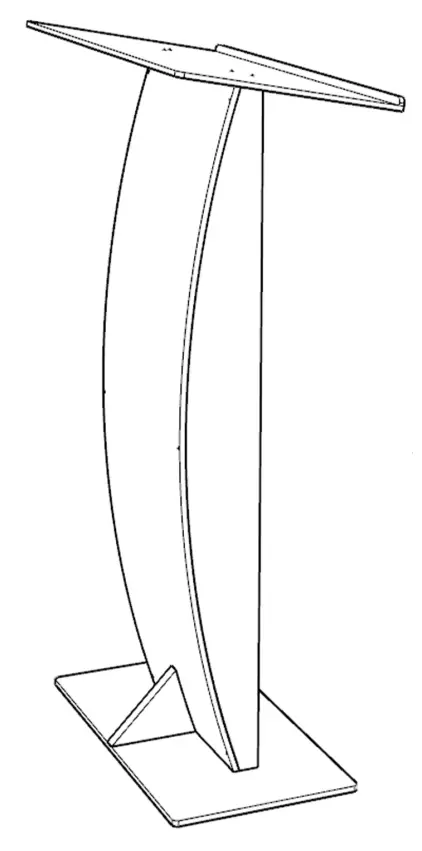

V I V O STAND-PDMA Acrylic Podium
Contents
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use.
WARNING: CHOKING HAZARD
SMALL PARTS – NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
PACKAGE CONTENTS
|
A (x1) |
B (x1) |
|

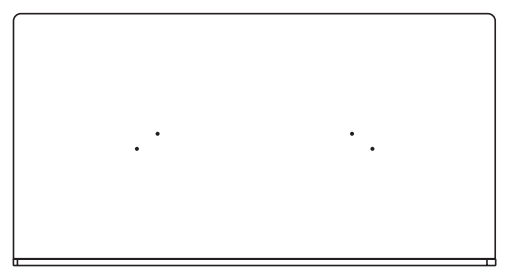

C (x1) |
D (x2) |
|
E (x1) |
F (x1) |
|
S-A (x18) |
T-A (x1) |
 |
DO NOT EXCEED WEIGHT CAPACITY. Failure to do so may result in serious injury |
ASSEMBLY STEPS
STEP 1

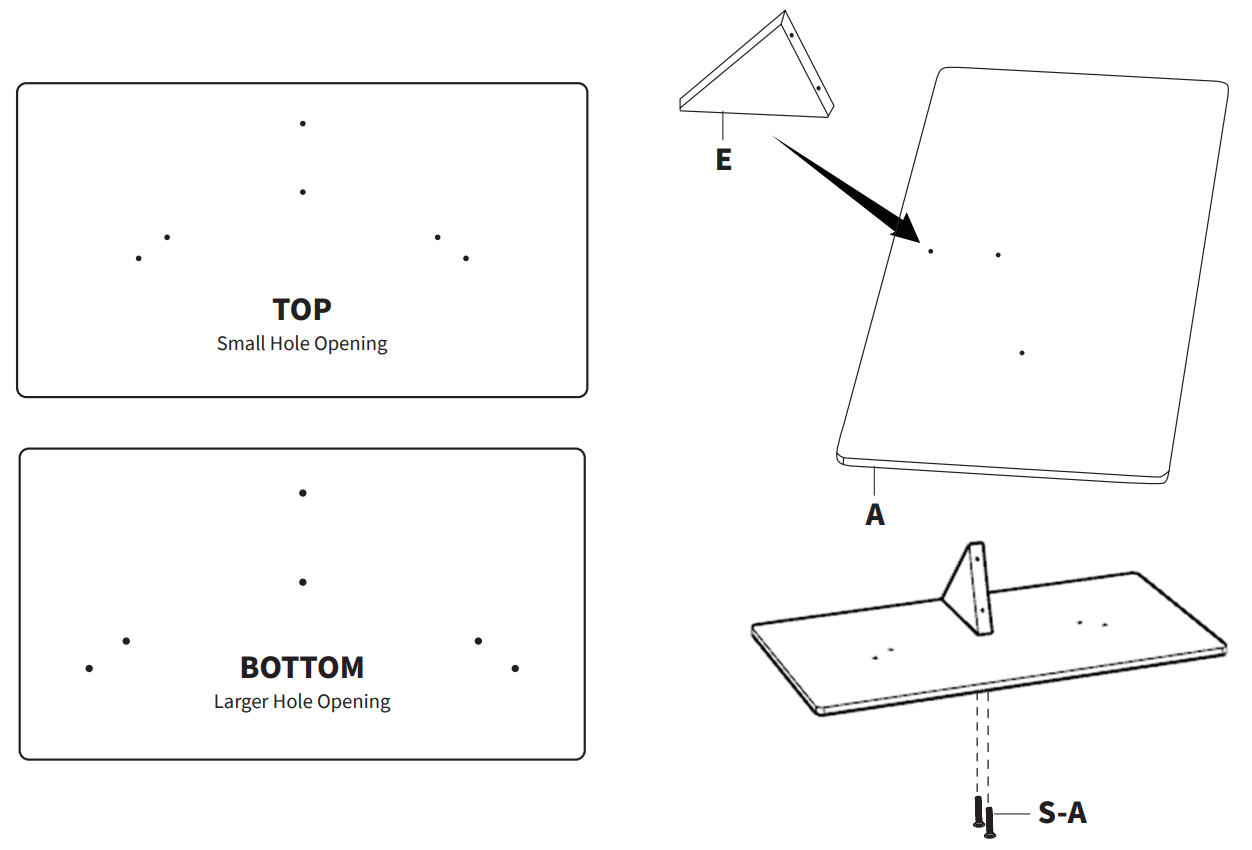

Inspect Base (A) and locate the side with the smaller hole openings. This is the top. Connect the Support (E) to the top of Base (A) in the middle two holes using M3x16mm Screws (S-A) and Phillips Screwdriver (T-A). Do not fully tighten screws.
STEP 2

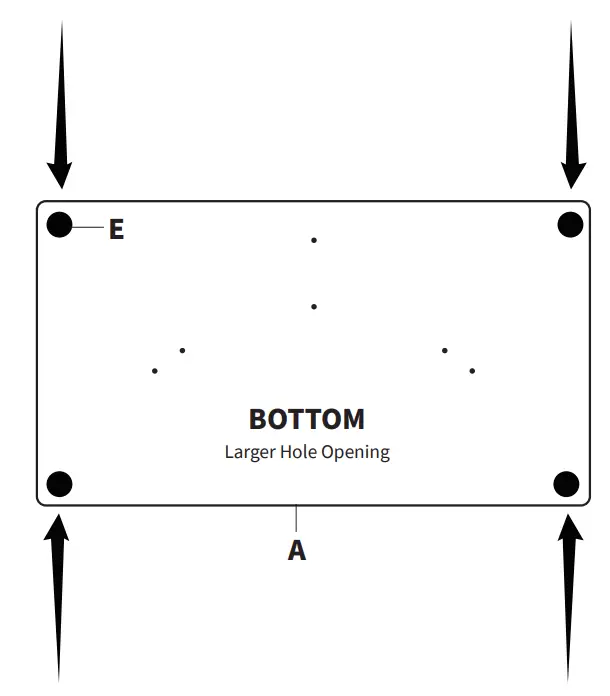

Remove Rubber Pads (F) from adhesive backing and apply to bottom side of Base (A). This is opposite the side that Support (E) was installed on.
STEP 3

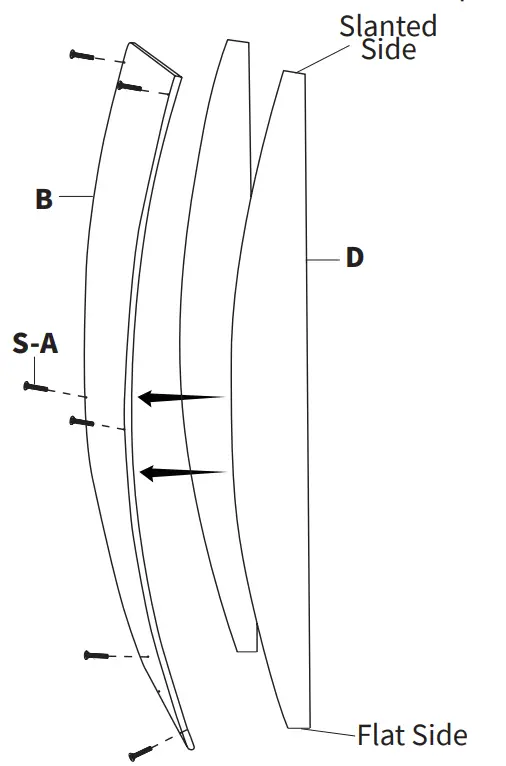

Connect Side Walls (D) to Front Wall (B) using M3x16mm Screws (S-A) and Phillips Screwdriver (T-A). Do not fully tighten screws.
NOTE: Make sure the flat side of Side Walls (D) are on bottom, and the slanted sides are on top
STEP 4
Connect main structure assembly to Base (A) using M3x16mm Screws (S-A) and Phillips Screwdriver (T-A). Do not fully tighten screws.
STEP 5

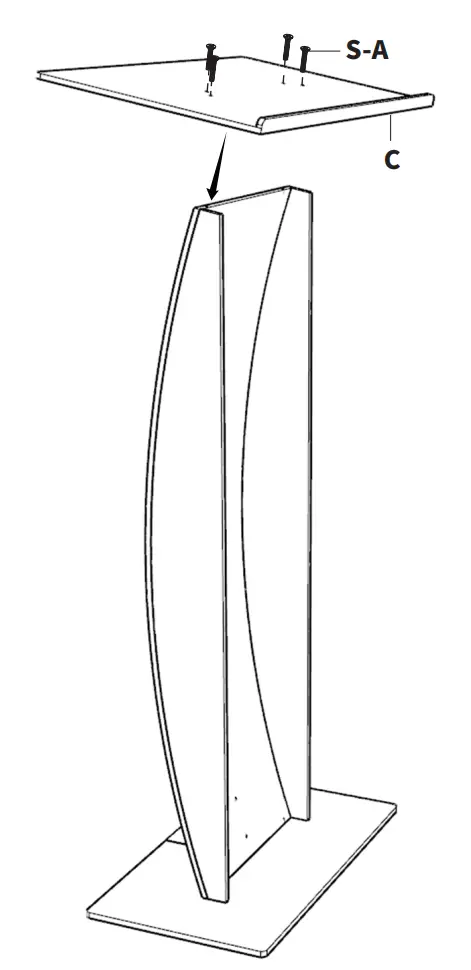

Assemble Top (C) to assembly using M3x16mm Screws (S-A) and Phillips Screwdriver (T-A). Fully tighten all of the previously installed screws
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
SKU: STAND-PDMA
 |
Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. Instruction Manual https://vivo-us.com/products/stand-pdma |
