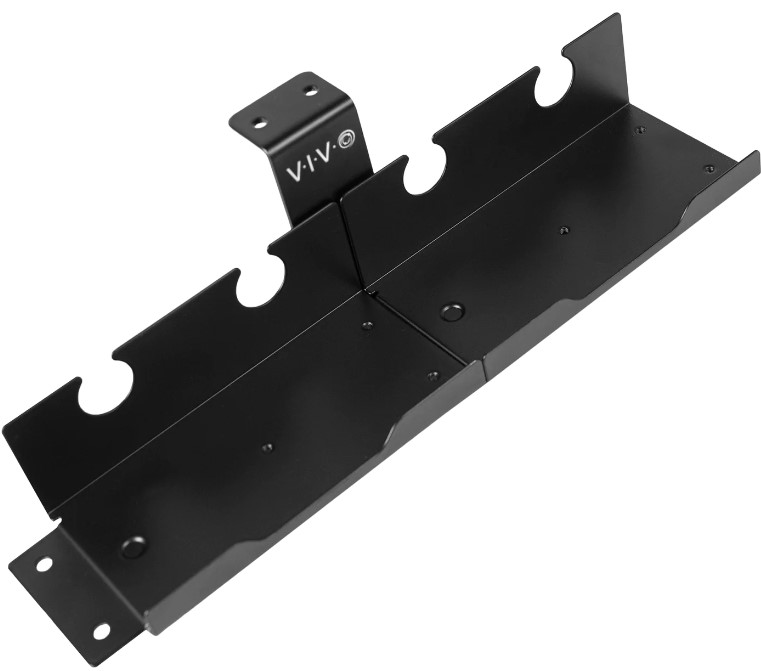

V I V O DESK-PS02T Black Under Desk Modular Power Strip Tray Instruction Manual

V I V O DESK-PS02T Black Under Desk Modular Power Strip Tray Instruction Manual

WARNING

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly, or inappropriate use.

WARNING: CHOKING HAZARD
SMALL PARTS – NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

Contents

PACKAGE CONTENTS

A (x2) Tray
B (x1)Mounting Bracket
S-A (x4)M4x5mm Screw
S-B (x3) M4 Washer
W-A (x2) ST4.8×16 Screw

TOOLS NEEDED

Phillips Screwdriver

DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury

ASSEMBLY STEPS

STEP 1
Connect Tray (A) to Mounting Bracket (B) using M4x5mm Screws (S-A) and a Phillips screwdriver.

STEP 2
Place assembly in desired location and use a pencil to mark pilot holes. Using a 1/8″ (3mm) drill bit, drill two pilot holes 0.6″ (16mm) deep.

STEP 3
Attach assembly to desktop using ST4.8×16 Screws (W-A) and a Phillips Screwdriver.

Adding Additional Tray Sets

If you purchased additional sets, connect together as shown below using M4x5mm Screws (S-A) and M4 Washers (S-B). Repeat steps 2-3 to finish installation.
