Clamp-On Desk Drawer
Instruction Manual

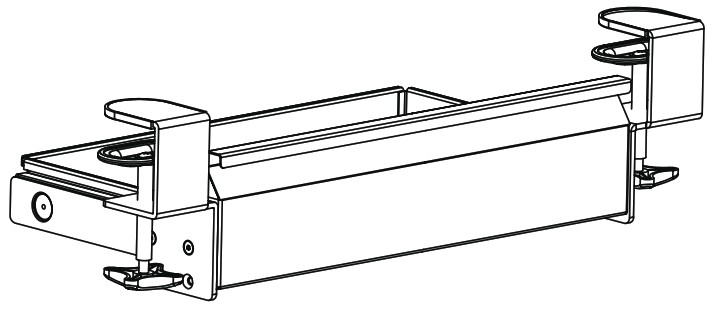

V I V O DESK AC03C B Clamp On Sliding Pull Out Drawer without Shell for Office Desk - cover

SKU: DESK-AC03C-B/W

DESK-AC03C-B Clamp On Sliding Pull Out Drawer without Shell for Office Desk

Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-ac03c-b

V I V O DESK AC03C B Clamp On Sliding Pull Out Drawer without Shell for Office Desk - qr

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

[email protected] www.vivo-us.com
Chat live with an agent!		 309-278-5303

WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly, or inappropriate use.

WARNING: CHOKING HAZARD
SMALL PARTS – NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

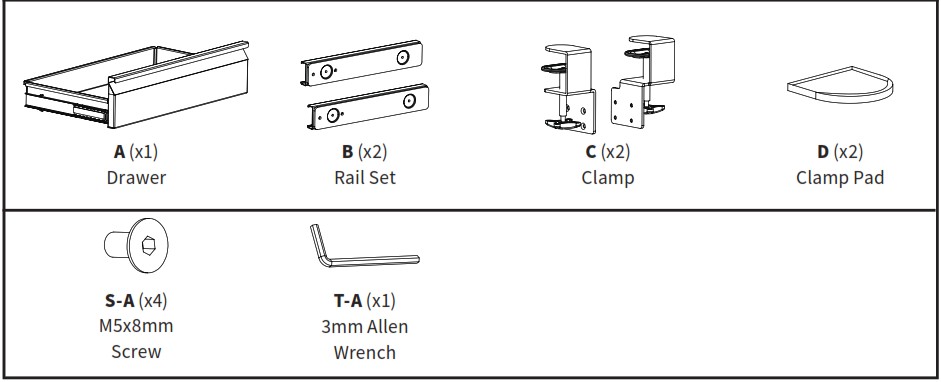

PACKAGE CONTENTS

V I V O DESK AC03C B Clamp On Sliding Pull Out Drawer without Shell for Office Desk - PACKAGE CONTENTS 1

TOOLS NEEDED

V I V O DESK AC03C B Clamp On Sliding Pull Out Drawer without Shell for Office Desk - icon 5

DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.

ASSEMBLY STEPS

STEP 1
Slide Rail Set (B) over side rails on Drawer (A) to secure in place.

V I V O DESK AC03C B Clamp On Sliding Pull Out Drawer without Shell for Office Desk - ASSEMBLY STEPS 1

STEP 2
Secure Clamps (C) to Rail Set (B) using M5x8mm Screws (S-A) in holes correspondinging to desk thickness below. Secure using 3mm Allen Wrench (T-A).

V I V O DESK AC03C B Clamp On Sliding Pull Out Drawer without Shell for Office Desk - ASSEMBLY STEPS 2

STEP 3
Place assembed drawer on desktop. Slide Clamp Pads (D) under clamps. Tighten Clamp (C) hand bolts to secure.

V I V O DESK AC03C B Clamp On Sliding Pull Out Drawer without Shell for Office Desk - ASSEMBLY STEPS 3

STEP 4
Drawer is now ready for use.

V I V O DESK AC03C B Clamp On Sliding Pull Out Drawer without Shell for Office Desk - ASSEMBLY STEPS 4

Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us

LAST UPDATED: 11/29/2022 REV1
