universal douglas LRA4P-347V-1 LED Strip Fixture Retrofit
Product Information
Mechanical:
The LRA4P-347V LED Retrofit Kit Assembly is a 4 or 8-foot retrofit kit that can be easily installed in existing fluorescent fixtures. It comes with a driver and LED strips that can be mounted on the existing fixture.
Optical:
The LRA4P-347V LED Retrofit Kit Assembly is available in 3500K, 4000K, and 5000K color temperatures with a Color Rendering Index (CRI) of 82. It has a nominal lumen output ranging from 5100 to 11500 lumens, depending on the model.
Electrical:
The LRA4P-347V LED Retrofit Kit Assembly requires an input voltage of 347V and comes with a driver set current ranging from 750mA to 1050mA, depending on the model. It has an input power ranging from 24W to 53W and has a power factor of >0.98 at max driver current.
Certifications:
The LRA4P-347V LED Retrofit Kit Assembly is FCC Title 47 CFR, Part 15, Class A certified.
Kit Includes:
The LRA4P-347V LED Retrofit Kit Assembly includes LED strips, a driver, and mounting hardware.
Ordering Guide:
The LRA4P-347V LED Retrofit Kit Assembly ordering code ID consists of:
- LRA4P: Product Identifier
- 14 or 28: Length of the retrofit kit in feet
- HL8xx or ML8xx: LED type
- 347: Input voltage
- xx: Color temperature (35, 40, or 50 for 3500K, 4000K, or 5000K)
- xxLC: Nominal lumens (30LC, 42LC, 50LC, 60LC, 70LC, or 85LC)
Product Usage Instructions
To use the LRA4P-347V LED Retrofit Kit Assembly, follow these steps:
- Turn off the power to the existing fluorescent fixture.
- Remove the existing fluorescent tubes and ballast from the fixture.
- Mount the LED strips on the fixture using the included mounting hardware.
- Connect the driver to the fixture’s electrical supply.
- Attach the LED strips to the driver.
- Turn on the power to the fixture and test the LED retrofit kit assembly.
Note: Please consult the factory for photometry information. The LRA4P-347V LED Retrofit Kit Assembly’s lumen and LPW tolerance is +/-10%. The application and performance information is subject to change without notification.
INTRODUCTION
MECHANICAL
- Retrofits 4ft or 8ft fluorescent strip fixtures to
LED
- Fast and easy installation
- No design or revised layout needed
OPTICAL
- Diffuser provides broad, even light distribution
- Three CCT options with CRI of 82
ELECTRICAL
- 347VAC, 60 HZ
- Equipped with 0-10V dimmable LED Driver
- LED System efficacies exceeding 115 LPW
CERTIFICATIONS
- UL Classified UL1598C (US & Canada)
- Suitable for Dry or Damp locations
KIT INCLUDES
- (1) or (2) LED lightbars pre-mounted
- (1) LED Driver (0-10V) pre-mounted
- (1) or (2) 4’ strip fixture panels
- Wiring, mounting hardware, installation instructions
WARRANTY
Five (5) year limited warranty
ORDERING
| Ordering Code ID | Catalog Number | Nominal
Lumens |
Input
Power (W) |
LPW | CRI | CCT | Input
Voltage |
|
| 4-Foot | LRA4P14-HL8xx-347-70LC | LRA4P14-HL8xx-347 | 7000 | 53 | 132 | 82 | 3500K, 4000K,
5000K |
347V |
| LRA4P14-HL8xx-347-60LC | 6000 | 44 | 136 | |||||
| LRA4P14-ML8xx-347-42LC | LRA4P14-ML8xx-347 | 4200 | 34 | 124 | 82 | 3500K, 4000K,
5000K |
347V | |
| LRA4P14-ML8xx-347-30LC | 3000 | 24 | 125 |
| 8-Foot | LRA4P28-HL8xx-347-12KC |
LRA4P28-HL8xx-347 |
11500 | 85 | 135 |
82 |
3500K, 4000K, 5000K |
347V |
| LRA4P28-HL8xx-347-10KC | 10000 | 71 | 141 | |||||
| LRA4P28-HL8xx-347-85LC | 8500 | 60 | 142 | |||||
| LRA4P28-HL8xx-347-70LC | 7000 | 48 | 146 | |||||
| LRA4P28-ML8xx-347-65LC | LRA4P28-HL8xx-347 | 6400 | 48 | 133 | 82 | 3500K, 4000K,
5000K |
347V | |
| LRA4P28-ML8xx-347-50LC | 5100 | 38 | 134 |
| Driver Set
Current (mA) |
| 900 |
| 750 |
| 1050 |
| 750 |
| 1500 |
| 1240 |
| 1065 |
| 855 |
| 1500 |
| 1250 |
EXAMPLE: LRA4P28-HL840-347-85LC
ORDERING NOTES
- xx = 35, 40, 50 for 3500K, 4000K, 5000K
- Consult factory for photometry.
- Application and performance information is subject to change without notification.
- Lumen and LPW Tolerance of +/- 10%.
OPERATING DATA
| L85 Lumen Maintenance: | >60,000 hrs. at 40°C |
| Min. Starting Temp.: | -30°C (-22°F) |
| Sound Rating: | Class A |
| EMI/RFI | FCC Title 47 CFR, Part 15, Class A |
| Power Factor: | >0.98 at max driver current |
| THD: | <20% |
| Input Power Frequency: | 50/60 Hz |
COMPONENTS
| Catalog Number | LED Light Bar | Driver | Driver Programmable
Output Range |
| LRA4P14-ML8xx-347 | LRL14-50L8xx-900CCL | D10CC30347PW-C | 1050mA to 750mA |
| LRA4P28-ML8xx-347 | LRL14-50L8xx-900CCL | D15CC55347PW-C | 1500mA to 1250mA |
| LRA4P14-HL8xx-347 | LRL14-70L8xx-900CCL | D15CC55347PW-C | 900mA to 625mA |
| LRA4P28-HL8xx-347 | LRL14-70L8xx-900CCL | D21CC80347PW-C | 1500mA to 500mA |
APPLICATION NOTES:
- All LED Lensed Modules must be connected for proper operation.
- Not for use with phase cut dimmers.
- Suitable for 4′ or 8′ strip light: non-lensed, minimum wiring compartment dimensions 2.5″ depth and 2″ width
DIMENSIONS
LRA PANEL ASSEMBLY (1 OR 2 PER KIT)

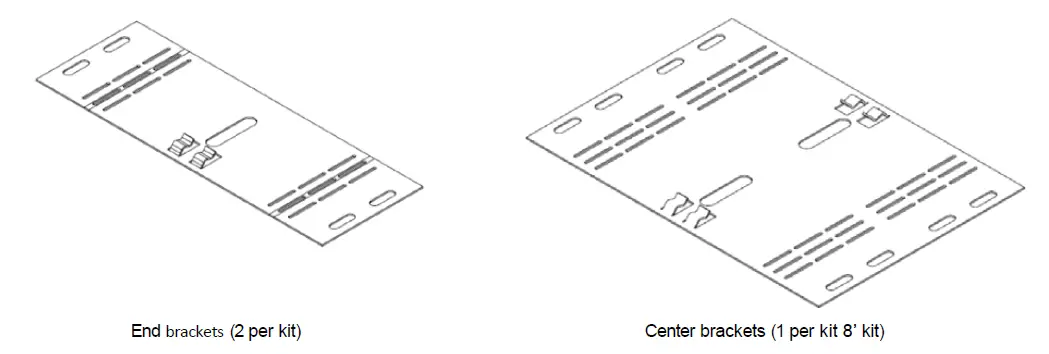

Adjustable brackets (if needed)
Installation Notes:
Installers can choose to use the existing socket bars if they line up with the LRA4P panel.
Adjustable brackets can be used in lieu of the existing socket bars. These wrap around the ends of the strip housing and are attached with screws. The LRA panel mounts to these brackets with a ¼ turn thumb screw.
www.universaldouglas.com
Rev. 7/22/2022
