Lithium Iron Phosphate (LiFePO4)Battery
Battery model: SLAUMXLI100-48
Contents
Features of LiFePO4 battery
- Longer Cycle Life: Offers up to 20times longer cycle life and five times longer float /calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
- Lighter Weight: About 40% of the weight of a comparable lead acid battery. A ‘drop in’ replacement for lead acid batteries.
- Higher Power: Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity.
- Wider Temperature Range: -20℃~60℃.
- Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
- Increased Flexibility: Modular Design enables deployment of up to up to ten battery in parallel.
BMS Specification
- Overcharge detection function
- Over discharge detection function
- Over current detection function
- Temperature protection
- Short detection function
- Balance function
Application
- Electric Vehicles,electric mobility
- Solar/wind energy storage system
- UPS,backup power
- Telecommunication
- Medical equipment
- Lighting
- And so on
Specification
| Electrical Characteristics |
Nominal Voltage | 48.0V |
| Nominal Capacity | 100Ah | |
| Energy | 4800Wh | |
| Internal Resistance | ≤ 50mΩ | |
| Cycle Life | ＞2000cycles @1.0C 100%DOD | |
| Months Self Discharge | <3% | |
| Efficiency of Charge | 100%@0.2C | |
| Efficiency of Discharge | 96-99%@0.5C | |
| Standard Charge | Charge Voltage | 54.8±0. 1V |
| Charge Mode | 0.2C to 57.6V,then 57.6V,charge current to0.02C(CC/CV) | |
| Charge Current | 50A | |
| Max. Charge Current | 80A | |
| Charge Cut-off Voltage | 58.5V±0. 2 | |
| Standard Discharge | Continuous Current | 80A |
| Max continuous discharge current | 100A | |
| Discharge Cut-off Voltage | 37.5V | |
| Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
| Water Dust Resistance | IP56 | |
| Mechanical | Cell & Method | 32700 6.5Ah 15S16P |
| Shell material | Iron(SPCC) | |
| Dimensions (in./mm.) | 650 x 438 x 178 | |
| Weight (lbs./kg.) | Approx:55Kg | |
| Gravimetric specific energy | 85WH/KG | |
| Protocol (optional) | RS485/RS232 | |
| SOC (optional) | LED |

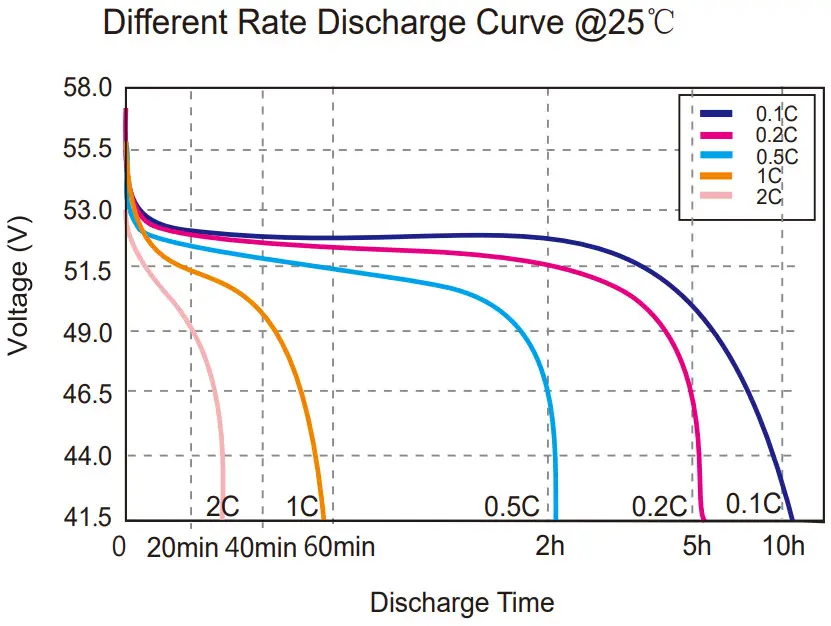

| Different Rate Discharge Curve | Different Temperature Discharge Curve |
 |
 |
| State of Charge Curve | Charging Characteristics |
 |
 |

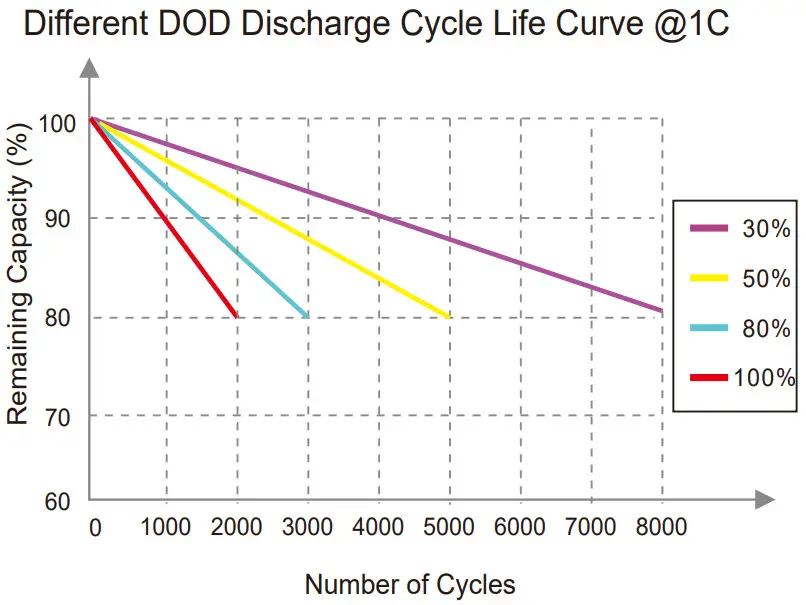

| Cycle Life Curve | Self Discharge Characteristics Curve |
 |
 |
Ultra Max Batteries, Watkins House Pegamoid Rd.,
Montagu Industrial Estate, London N18 2NG
Tel: 020 8803 8899
F: 020 8803 8939
E: [email protected]
W: www.ultramax.co.uk
SLAUMXLI100-48_TEC-XAM -V1D23
