UGEARS 70089 3D DIY Wooden Puzzle Box User Manual

Model «Antique Box»

70089 3D DIY Wooden Puzzle Box

Assemble Me. Fill Me Up https://ugearsmodels.com/antique-box.html

Assembly instructions

Mechanical models

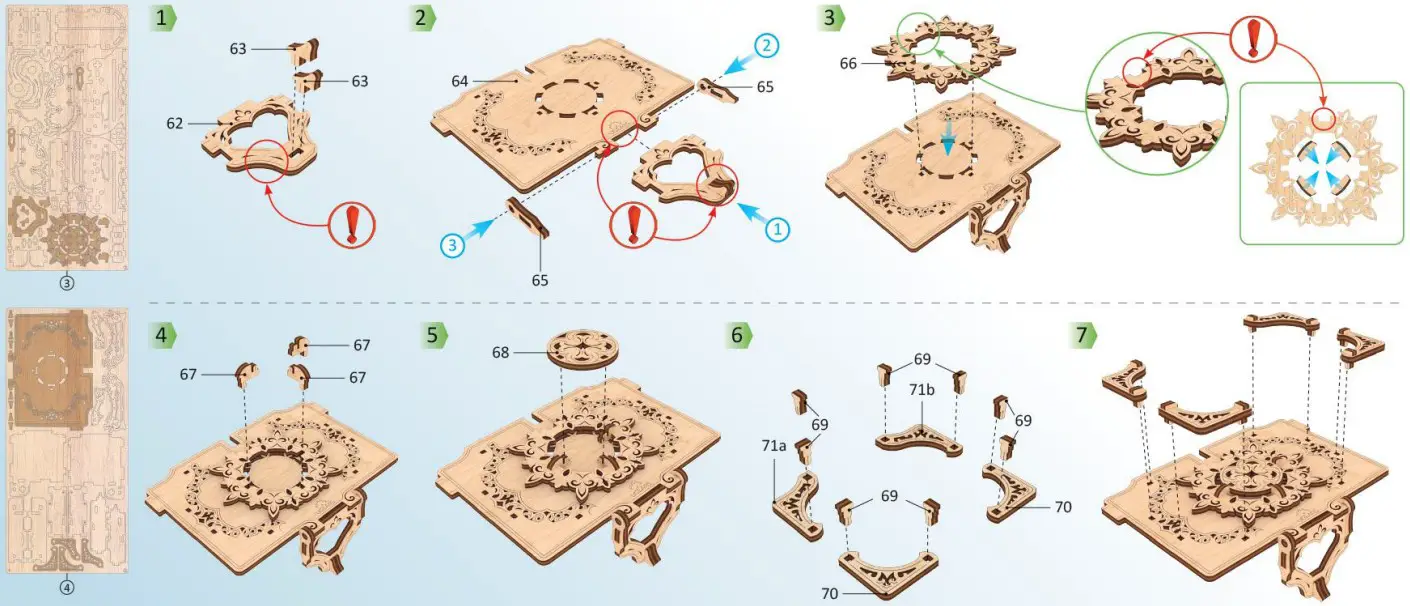

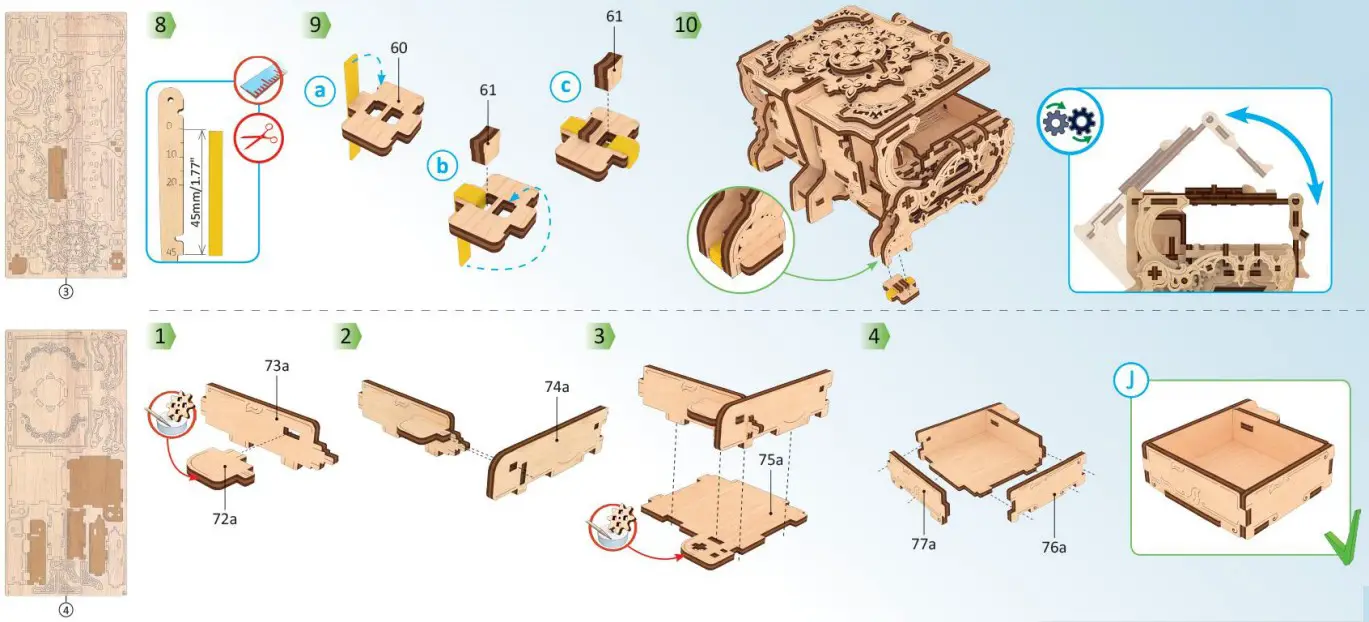

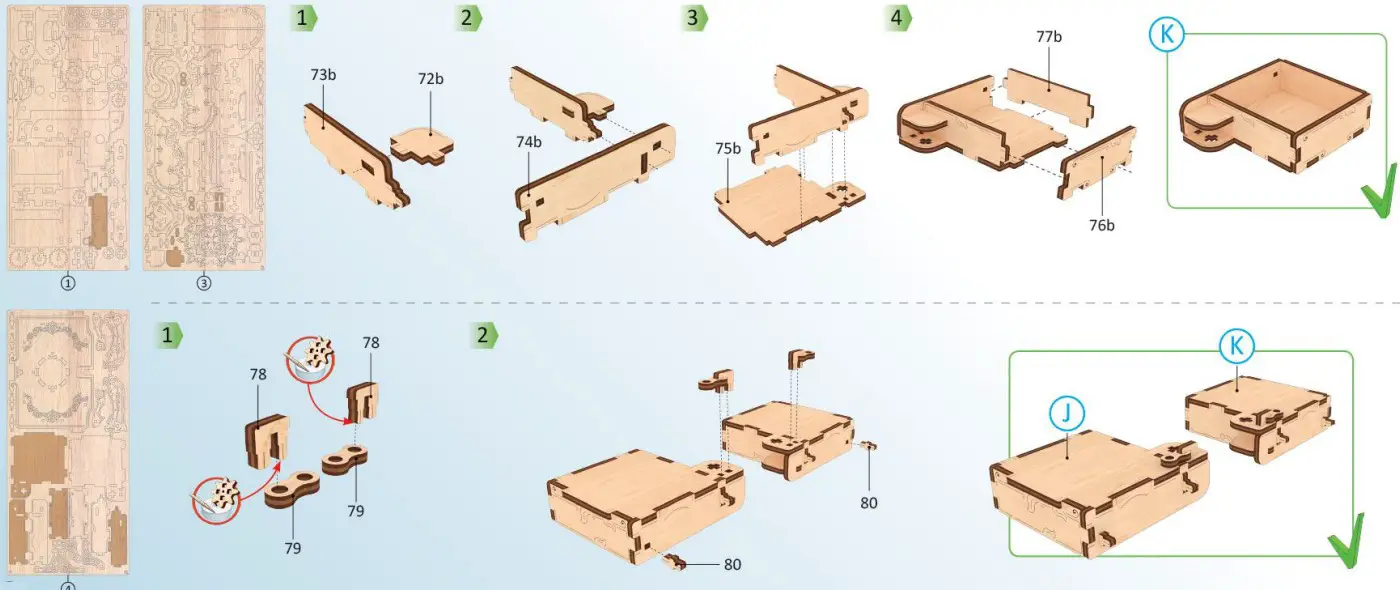

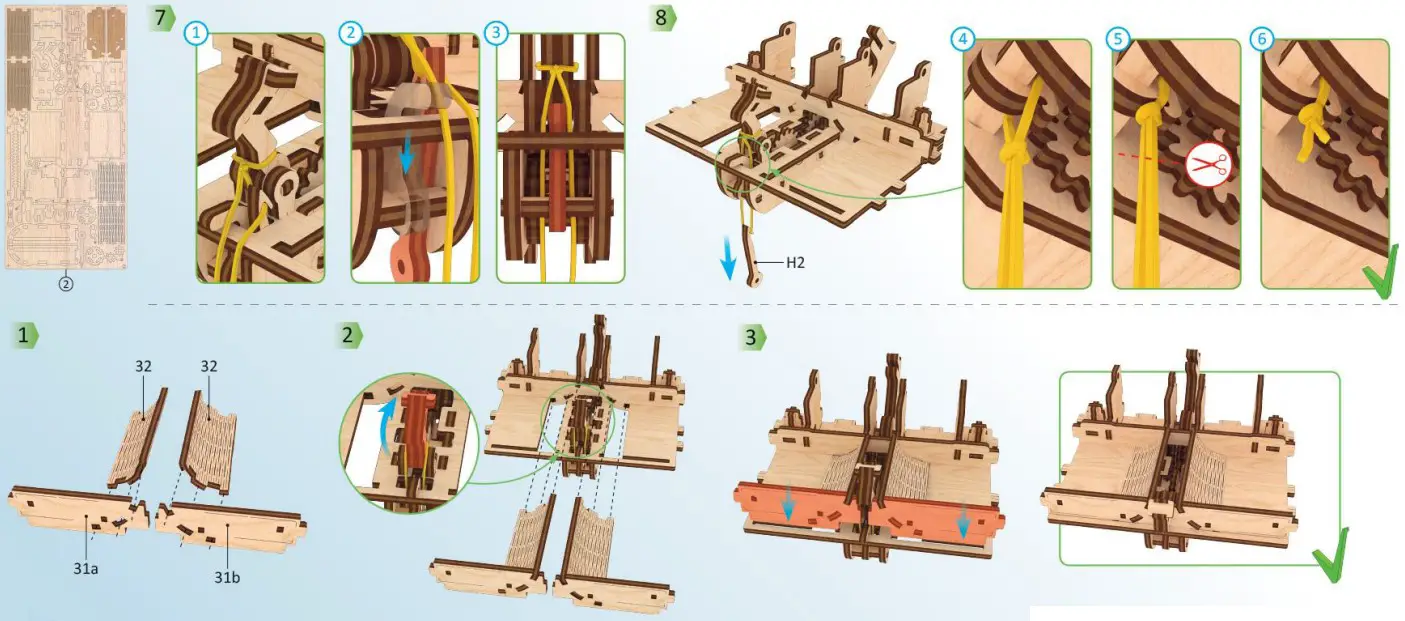

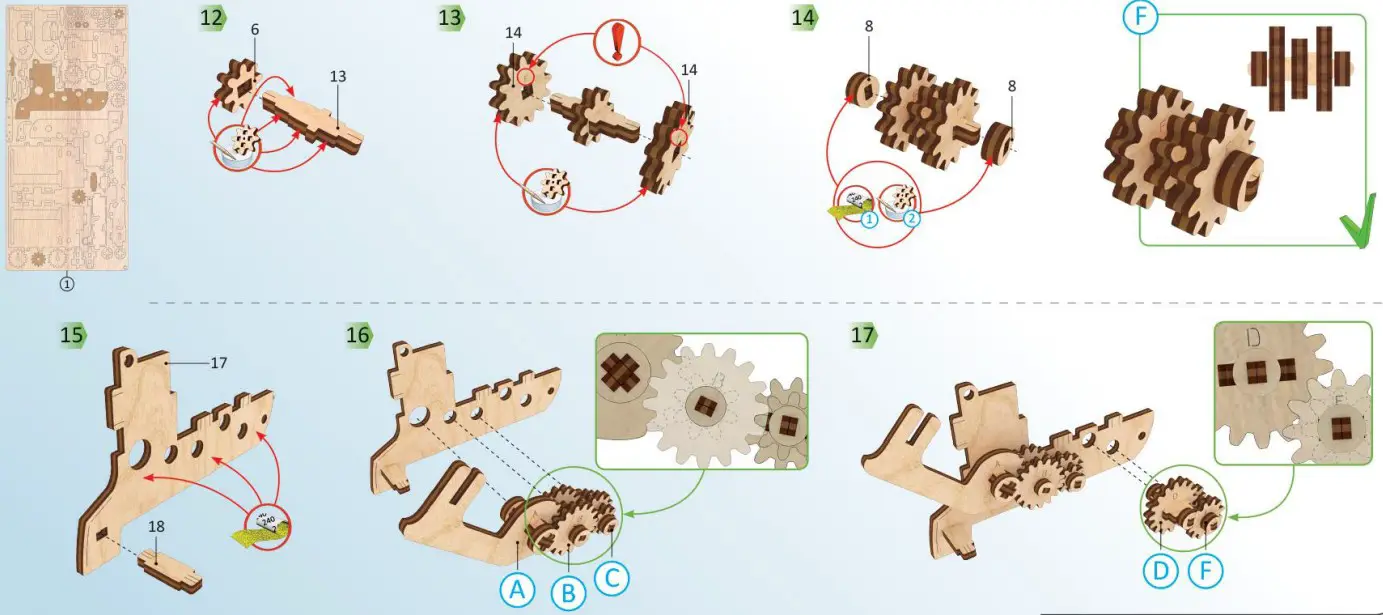

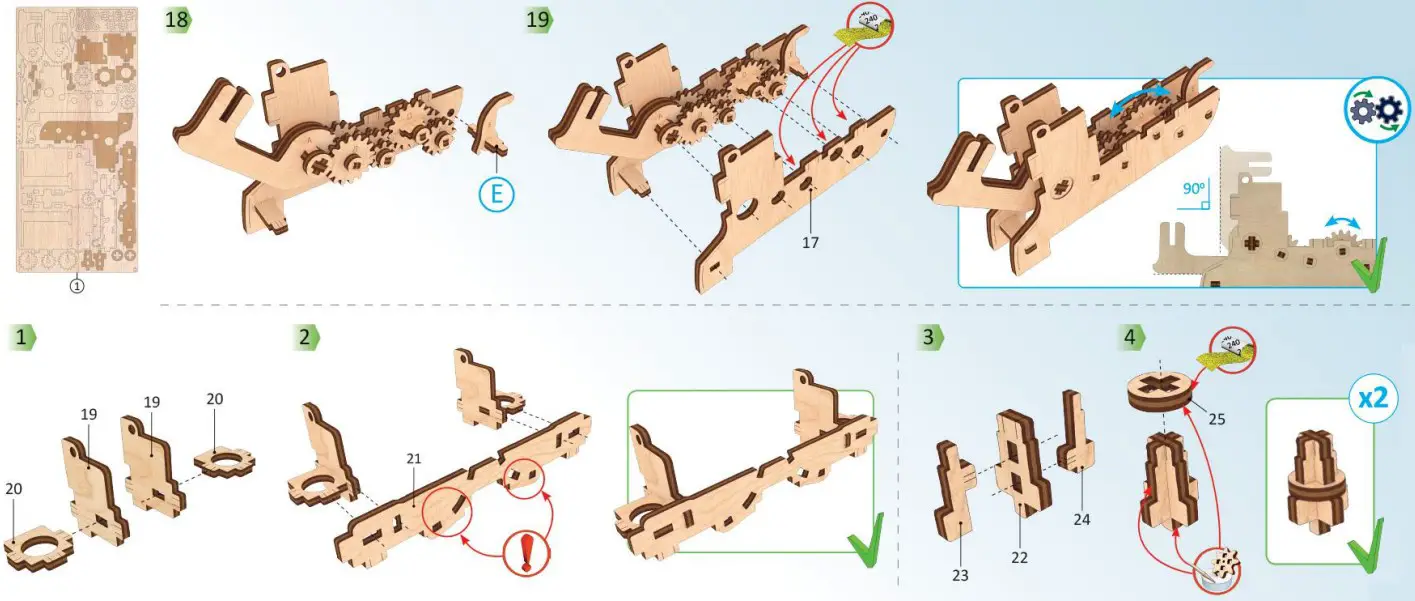

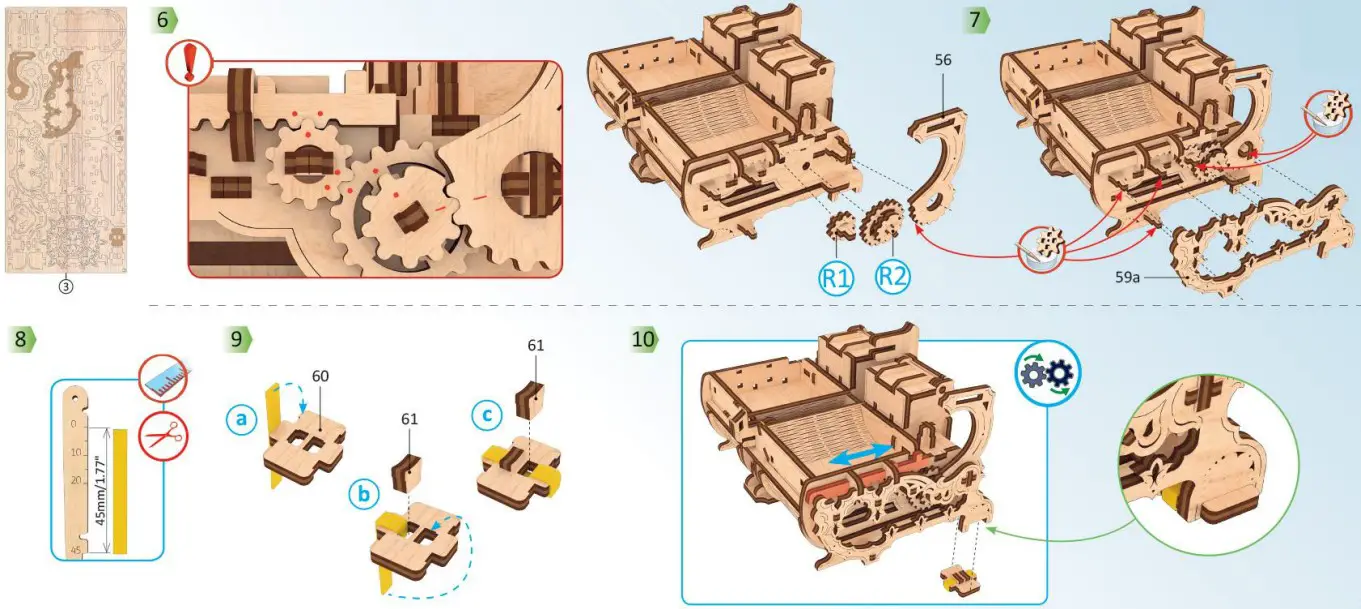

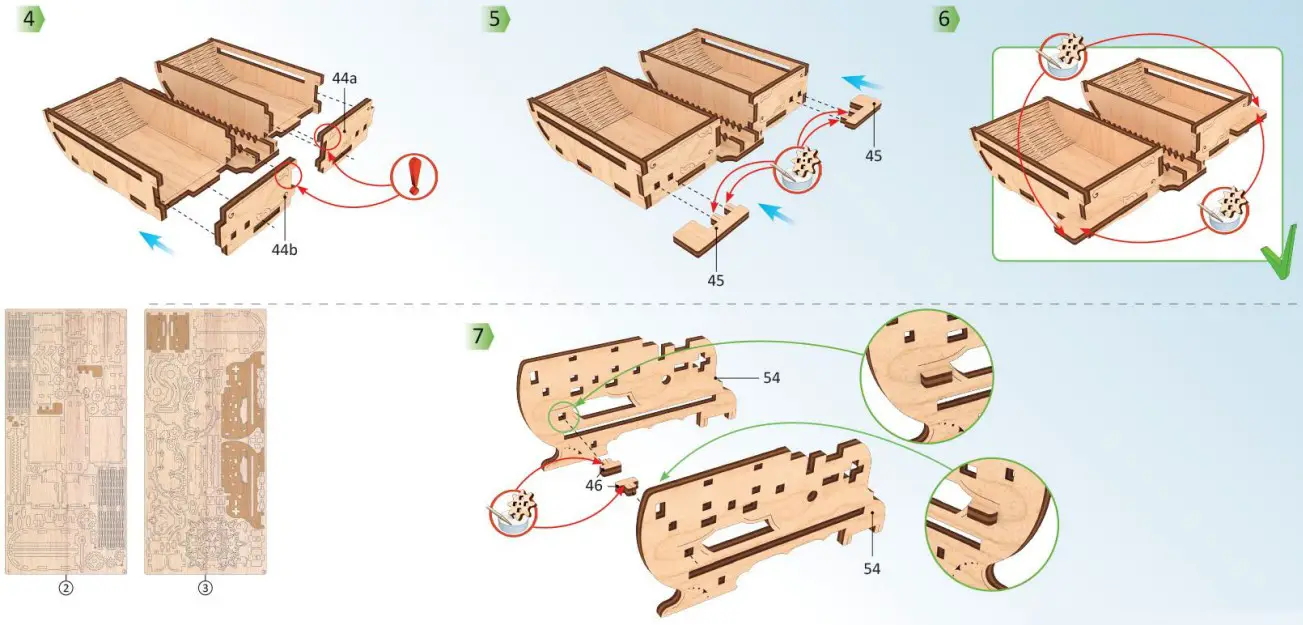

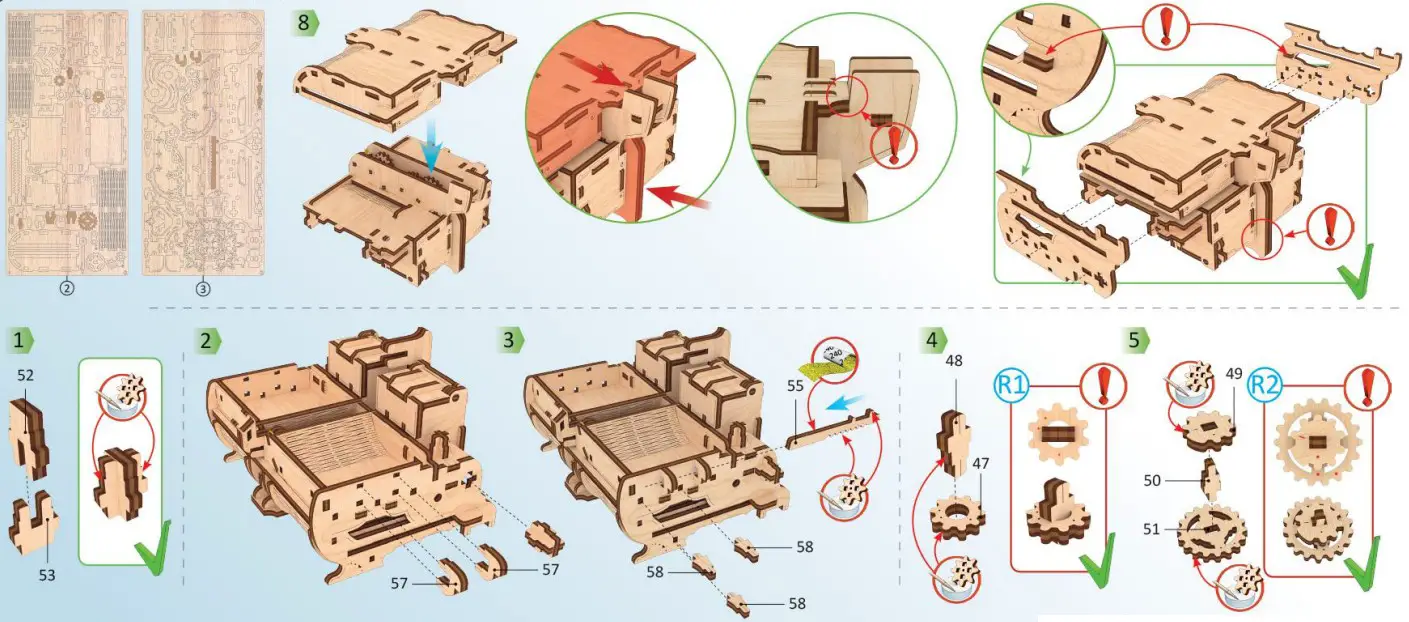

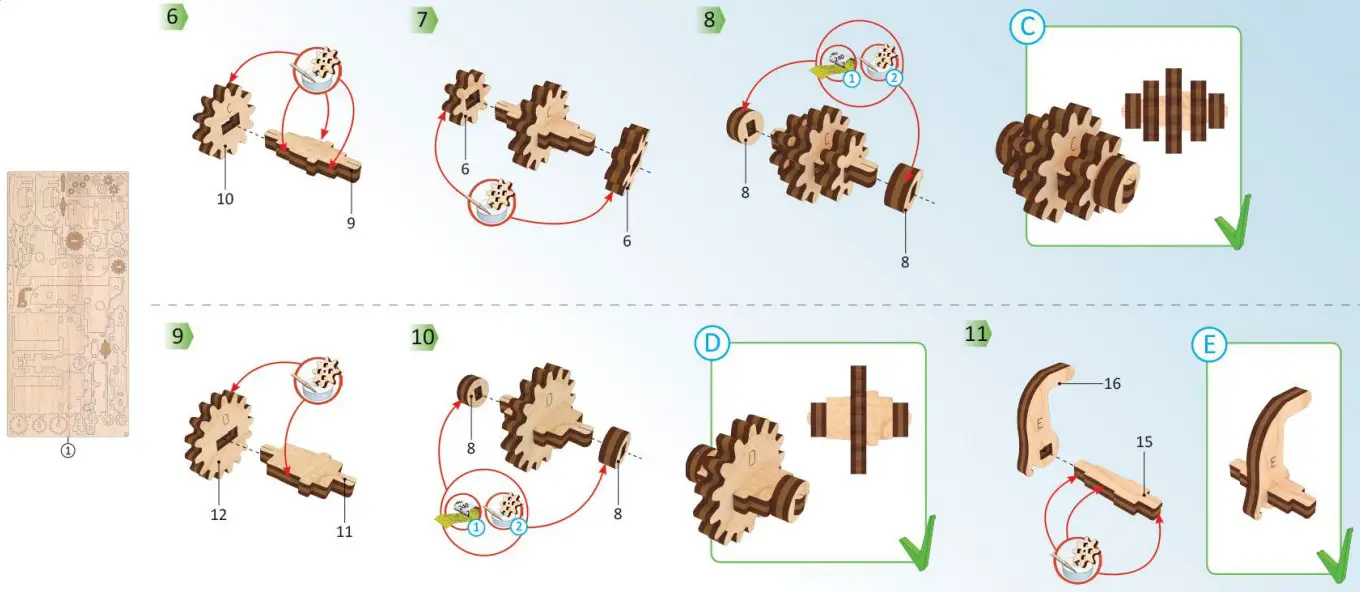

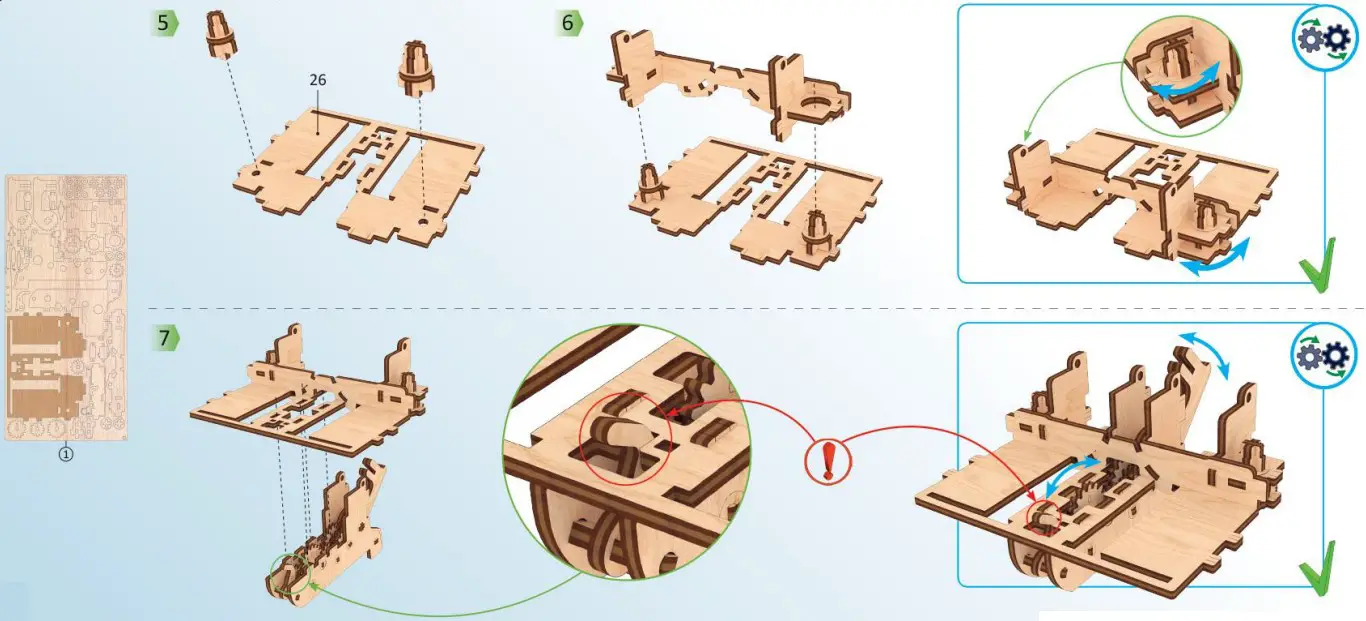

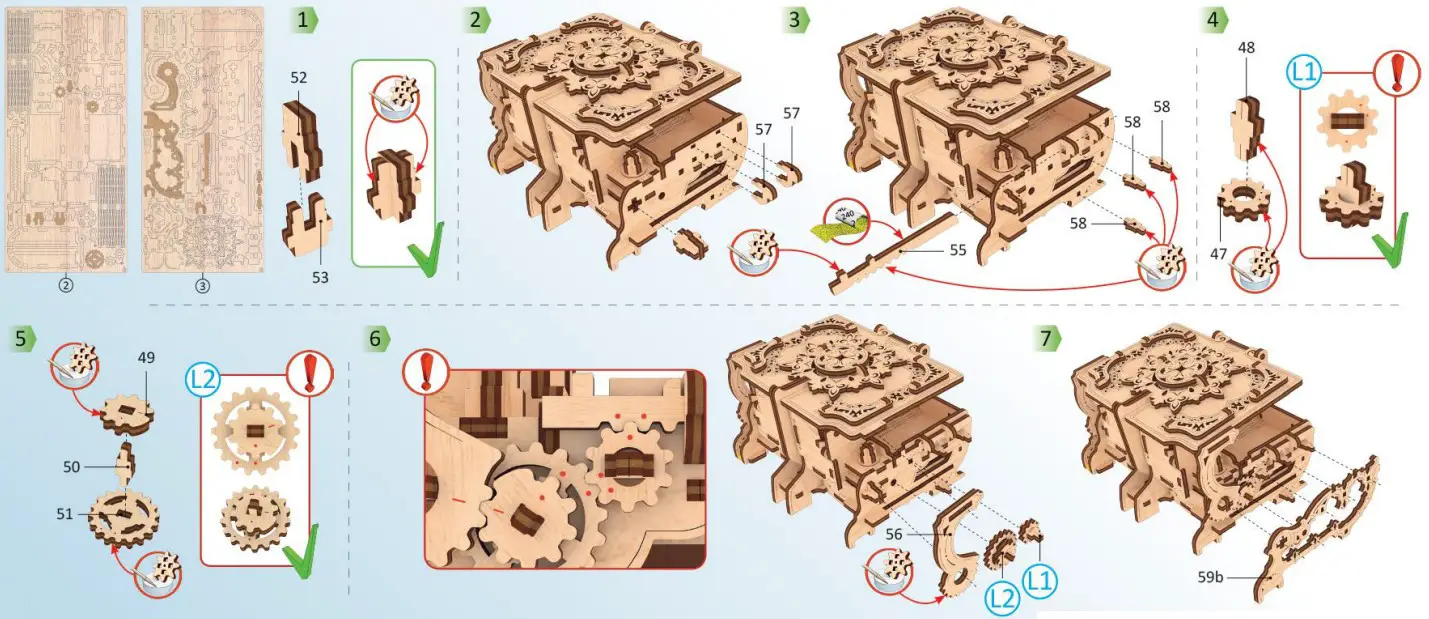

Assembly instructions:

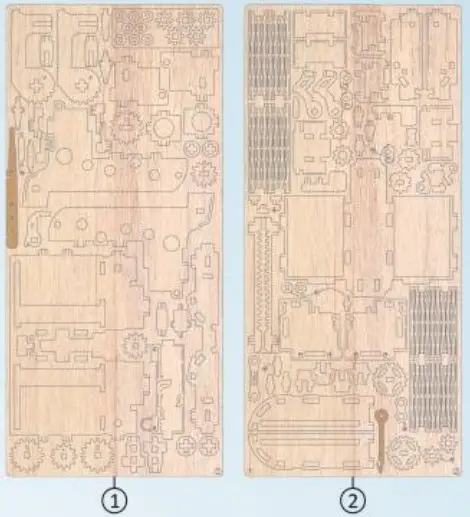

Remove model parts from the hanger board as illustrated below. Careful not to break parts. If a part does not remove easily, carefully cut it out with a knife. This model is intended for self-assembly without glue. If you have difficulty installing the axles, try waxing them with a regular candle. All moving parts can also be waxed during assembly to reduce friction when operating the madel.
Warning!
Do not use a lighted candle!

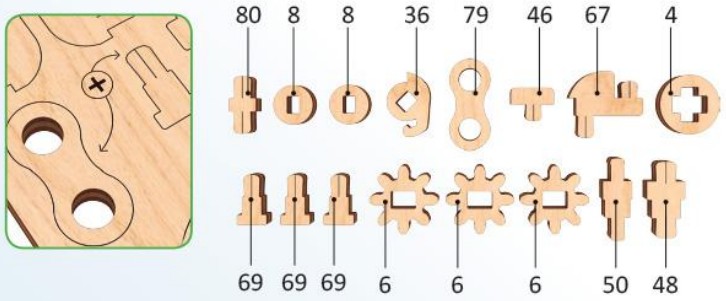

Spare parts.

Symbols.

	Wax the part with a regular candle (rub with a candle).
	Pay attention. Check for correct orientation or positioning.
	Sand to remove burrs.
	Check the mechanism for smooth and correct movement. Operate the mechanism to seat the parts in their positions.
	Check size.

This is not a structural component; it is a tool for measurement and assembly. https://youtu.be/cr5A8XShDYk https://youtu.be/X-UJvuG5OTM https://ugearsmodels.com/qr/antique-box.html?utm_source=scan&utm_medium=antique-box&utm_campaign=qr
