WIRELESS MAGNETIC DOOR/WINDOW CONTACT

Is a part of the U-Prox security alarm system
User manual
Manufacturer: Integrated Technical Vision Ltd.
Vasyl Lypkivsky str. 1, 03035, Kyiv, Ukraine

U-Prox WDC – is a wireless magnetic contact designed to monitor the status of structural elements (open/close) to detect an attempt to enter a room. The device sends an alarm notiﬁcation to the alarm center U-Prox security alarm system.

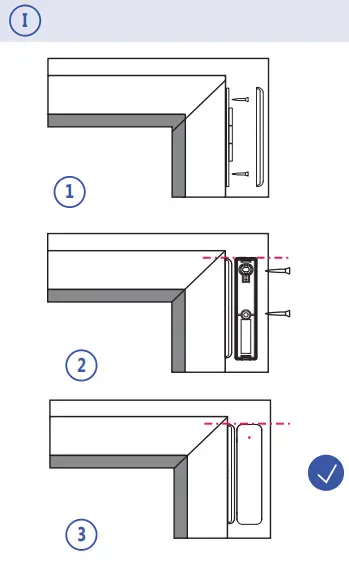

Mounted indoors and used to protect doors and windows.
The detector has connector for connecting the arming information LED and external sensor, e.g. reed switch.

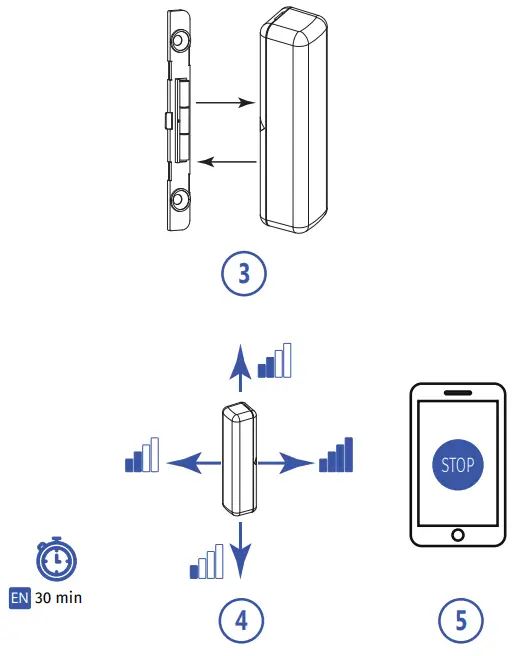

The device is connected to the control panel and is conﬁgured with the U-Prox Installer mobile application.

https://u-prox.systems/Installer

Functional parts of the device (see picture)

1. Bottom plate of magnet case
2. Magnet case cover
3. Neodymium magnet
4. Bottom plate of the detector case
5. Detector case top cover
with the device

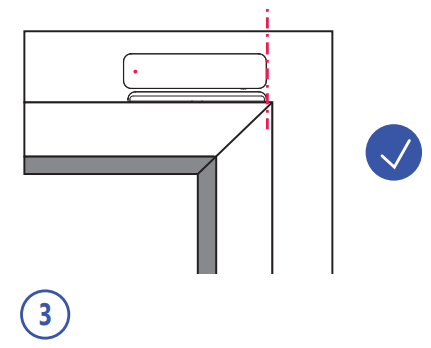

6. Magnet position marks
7. LED indicator
8. Plastic protector of device board
9. Tamper switch

10. Connector for external
sensor and LED:
LD contact (+ LED)
GND contact (earth)
DC contact (sensor)
11. On/off button
12. Battery CR123A
13. External sensor (reed switch)
14. External LED
15. Rubber seal

TECHNICAL SPECIFICATIONS

Reed switch	threshold 7-15 mm, operations > 1 000 000
Power	3V, CR123A lithium battery included
Service life of battery	up to 5 years

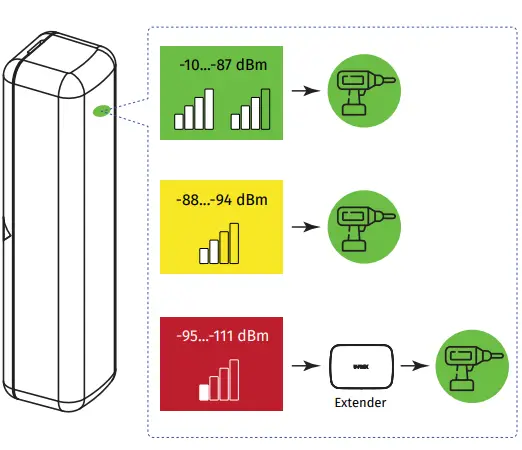

Communication	ISM-band wireless interface with several channels ITU region 1 (EU, UA): 868.0 to 868.6 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight) ITU region 3 (AU): 916.5 to 917 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight)
Dimensions & weight	Secure two way communication, sabotage detection, key – 256 bits
Operating temperature range	-20°C to +50°C
Radio frequency	85 х 20,9 х 20,4 mm & 66 gram
Magnet dimensions	85 х 11 х 6 mm
Case colour	white, dark brown, black

COMPLETE SET

U-Prox WDC;
Magnet;
CR2 battery (pre-installed);
Mounting kit;
Quick start guide

CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE NATIONAL REGULATIONS

WARRANTY

Warranty for U-Prox devices (except batteries) is valid for two years after the purchase date.
If the device operates incorrectly, please contact [email protected] at ﬁrst, maybe it can be solved remotely.
