U-BOAT Flightdeck Chrono Smart Watch Instructions

ITALO FONTANA
FLIGHTDECK
CHRONODear Customer

Flight deck Chrono Smart Watch

Dear Customer
WE CONGRATULATE YOU ON THE PURCHASE OF THIS U-BOAT WATCH.
IN THIS BOOKLET YOU WILL FIND THE USER INSTRUCTIONS.
WE KINDLY INVITE YOU TO REGISTER YOUR WATCH ON OUR OFFICIAL WEB SITE IN THE U-CLUB AREA, DEDICATED EXCLUSIVELY TO THE U-BOAT WATCHES OWNERS, SO TO GET ACCESS TO FURTHER BENEFITS AND PREVIEWS ON OUR LATEST NEWS, EVENTS AND OFFERS.
Mechanical Automatic Chrono

WATCH FUNCTIONS

CROWN COVER
CROWN
CHRONOGRAPH START/STOP PUSHER
CHRONOGRAPH RESET PUSHER
CHRONOGRAPH SECONDS HAND
CHRONOGRAPH HOUR COUNTER
 SECONDS COUNTER
 CHRONOGRAPH MINUTE COUNTER
 DATE
HOUR HAND
MINUTE HANDRepresentative image.
Some components may be in different positions or not fitted.

• POSITION 1
  NEUTRAL POSITION
•  POSITION 2
  FIRST CLICK
• POSITION 3
  SECOND CLICK

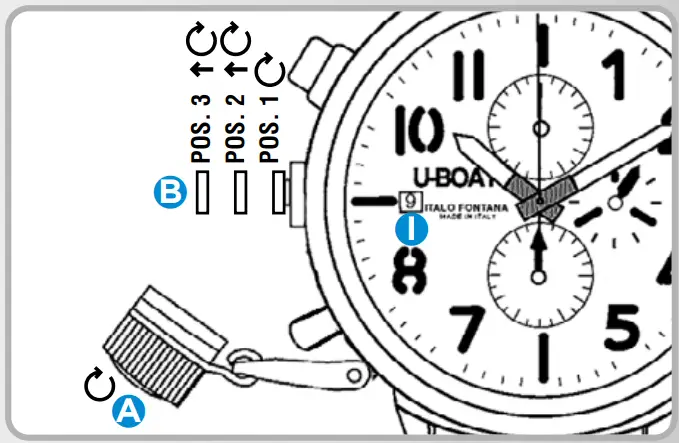

USER INSTRUCTIONS

1. Unscrew the crown cover A to access the crown B .
   POSITION 1
   NEUTRAL POSITION
   to wind up and start the watch, turn the crown B clockwise.
   POSITION 2
   FIRST CLICK
   extract the crown B to lead it to position 2. Turn the crown B clockwise to set the desired date .
   POSITION 3
   SECOND CLICK
   extract the crown B to lead it to position 3. Turn the crown B clockwise to set the desired time.
2. Press the crown B all the way down to return it to position 1. Carefully screw down the crown cover  until it locks completely.

*CAUTION IMPORTANT
INCORRECT POSITION

CORRECT POSITION

*CAUTION IMPORTANT

To avoid misalignment or breakage of the date click wheel when setting the date, make sure that:

1. When resetting the date  manually, the hand  is not positioned between 21 and 03 o’clock.
2. The day  indicated by the date window is aligned with the window (see figure alongside).
3. Bring the crown to position 3, position the watch hand at 3 o’clock, bring the crown to position 2, move the date  to the desired day paying attention to point 2.

CHRONOGRAPH FUNCTIONS

Press the (on/off) pusher to start the chronograph hand and the hours/minutes totalizer.
Press the pusher  again to stop the chronograph, which will restart by pressing it again.
After measuring the times, with the chronograph stopped, press the pusher to reset the chronograph and totalizer hands to zero.

CARE AND MAINTENANCE

• Your watch will keep its performance intact for a long time, with proper care.
• We recommend that you have your watch checked every 3-4 years at one of our Authorized Dealers/Authorised Service Centres, to carry out ordinary maintenance on all mechanical parts and water resistance.
• We also recommend contacting an Authorized Dealer/Authorised Service Center to replace the strap.
• Do not leave the watch in places exposed to extreme temperature changes, humidity, the sun and strong magnetic fields.
• Make sure the watch is suitable for use in water.
• Always rinse the watch with fresh water after contact with salt water.
  AUTOMATIC WATCHES REQUIRE MANUAL WINDING FOLLOWING A LONG PERIOD OF INACTIVITY.
