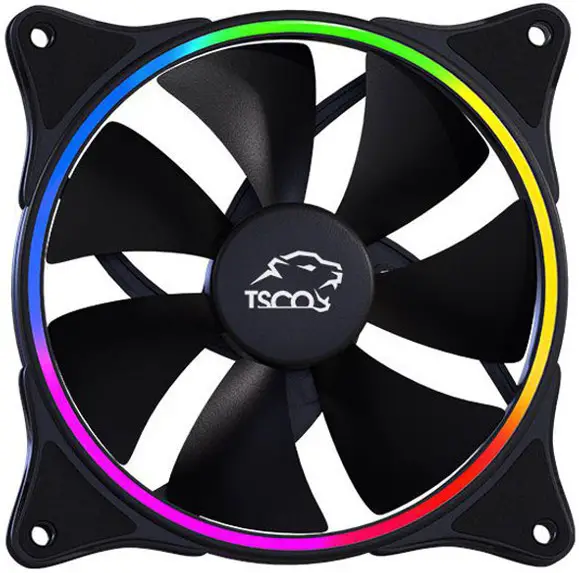

GFAN 130 GAMING FAN
Contents
PACKAGE CONTENT
- aRGB fan
- Screw pack
- User Manual
- Guarantee Card

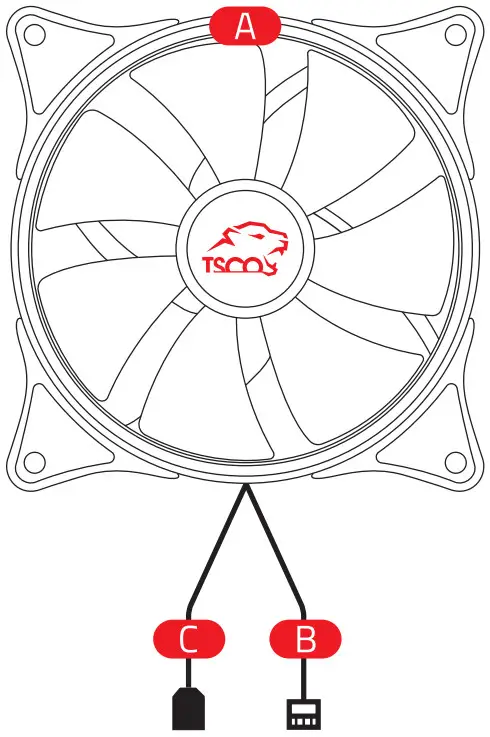

WHAT’S INSIDE
A. aRGB Fan
B. PWM Connector
C. aRGB Connector
APPROXIMATE SIZE AND WEIGHT
- Length: 120 mm
- Height: 25 mm
- Width: 120 mm
- Weight: 157 g
TECHNICAL SPECIFICATION
- Materials: ABS
- Fan rate: DC 12V/0.16A
- LED number:16
- Noise Level (Max): 20dB(A)
- Air Flow: 56.3CFM
- Speed (Max): 2000±10% RPM
LET’S GET YOU COVERED
You’ve got a great device in your hands with an 18 months limited warranty coverage. For more information please visit www.tsco.ir.

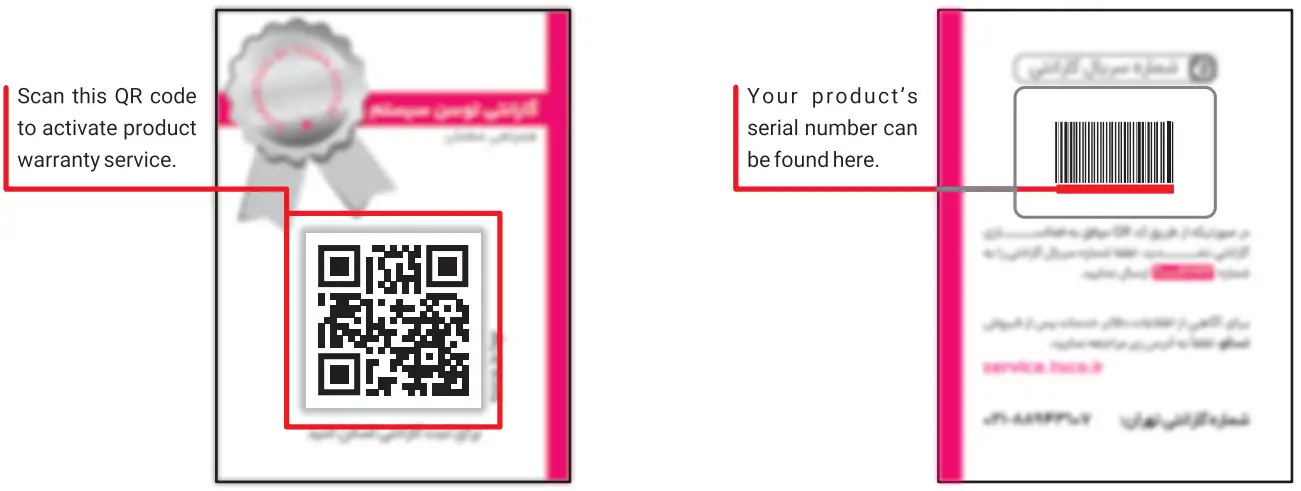

To activate your warranty service; Please scan the QR code, which is on the guarantee card. You can also send the serial number which is written on guarantee card or product to 20004243.
WHAT’S NEEDED
HARDWARE REQUIEMENT:
- TSCO GFan-330 Hub
- MB with free 3-pin aRGB (5v) and PWM Ports

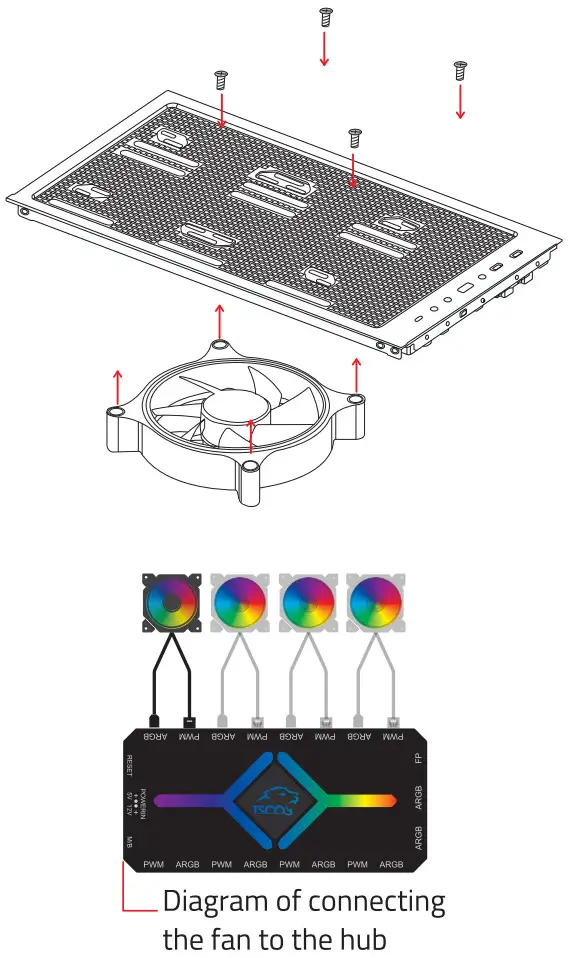

SETTING UP
- Mounting on a PC chassis
| Mounting screws |  |
Warning: Turn off your PC before proceeding to avoid electric shocks, for safety purposes, wear on anti-static wrist strap (not included) to avoid damaging the internal components of your PC.
All other PC peripherals or components are for illustration purposes only; they are not included in this package and sold separately.
Note: Should you need more fan for better ventilation, You can use TSCO GFan-330 to keep your System cool. GFan-330 is compatible with Asus Aura Sync, MSI Mystic Light, ASRock PolyChrome RGB. It means you can adjust the fan lighting modes with your gaming PC components (motherboard, etc.) You can also enjoy its default lighting modes or change the fan speed and even turn off the fan lighting if needed. All this is possible through its remote control.
SAFETY GUIDELINES
In order to achieve maximum safety while using your device we suggest that you adopt the following guidelines: should you have trouble operating the GFAN-130 properly and troubleshooting does not work, unplug the device, contact (021)42435000 hotline or go to service.tsco.ir for assistance.
Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads.
Only use accessories provided with the device and only purchase accessories made and/or approved by TSCO.
Power off the device before making any relocation, modifications, and / or connecting / disconnecting any component.
Always handle all included accessories with care. When plugging or unplugging any accessory, always grip its plug/connector.
Don’t use or install the device and its components near water, moisture, solvents or other wet surfaces, not expose these components to high temperatures or direct sunlight.
Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range up O0°C (32°F) to 40°C (104°F). Should the temperature exceed this range unplug and/or switch the device in order to let the temperature stabilize to an optimal level.
MAINTENANCE AND USE
The GFan-130 requires minimum maintenance to keep it in optimal condition. once a month we recommend you unplug the device and clean it using a soft cloth or cotton Swab to prevent dirt build-up.
Do not use soap or harsh cleaning agents.
GET HELP WITH TSCO GAME SUPPORT
We’re here to assist you with your TSCO game device. Find register your product, or contact us by phone, chat or e-mail if you have any questions.
https://service.tsco.ir
For Professional GAMERS
https://tsco.ir/product/tsco-gaming-fan-gfan-130/
Powered by TSCO
www.tsco.ir
