Trust OWH-002 Splash Proof Mounting Box User Manual
Contents

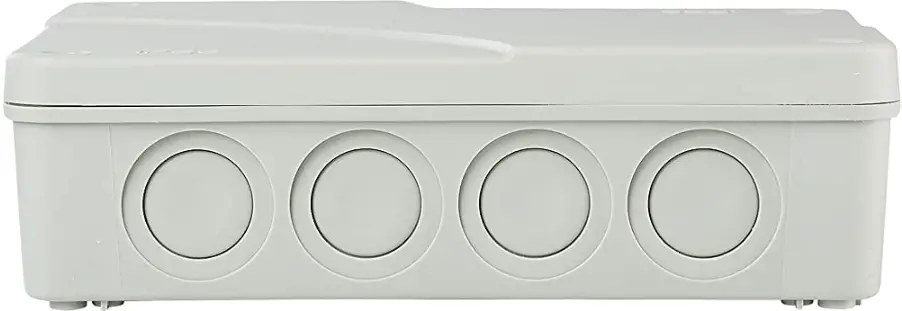

Introduction
Item 71050 Version 1.0
Always read the instructions before using this product.
Using Instruction
- Open junction box

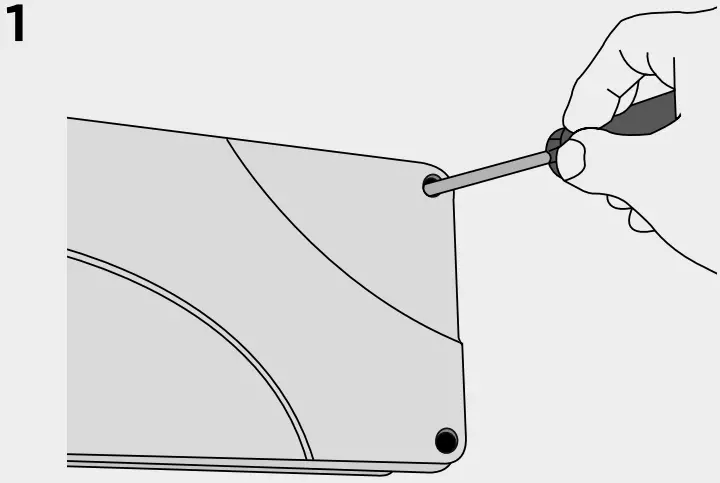

Loosen the 4 screws on each corner with a screwdriver and remove the cover plate.
The screws are fixed to the cover, so they cannot fall out.

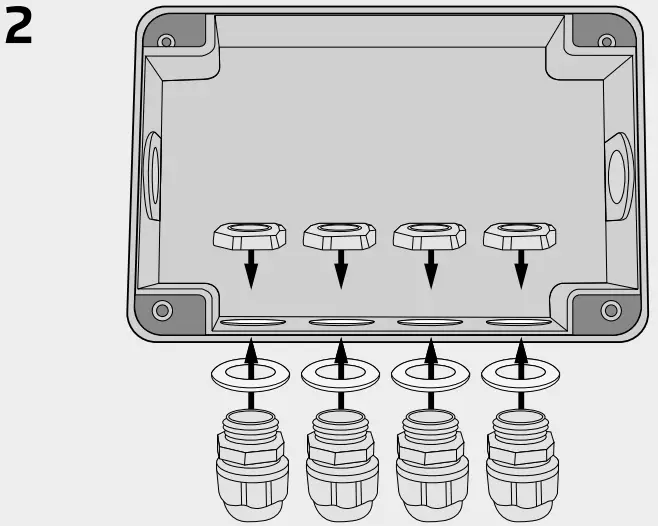

- Position and secure cable glands
Position and secure the cable glands in the position where the wires will be threaded through.
- Switch off the mains power (electric meter box)
- Connect wires

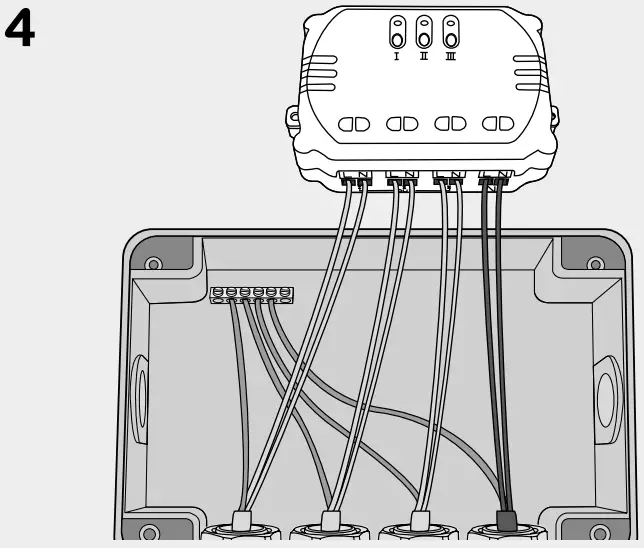

Connect the wiring as described in the receiver’s installation manual.
If applicable, connect the earth wires to the terminal block in the corner of the junction box.
- Position and secure receiver
The receiver can only be positioned in 1 way. Once in position, secure the receiver with screws.

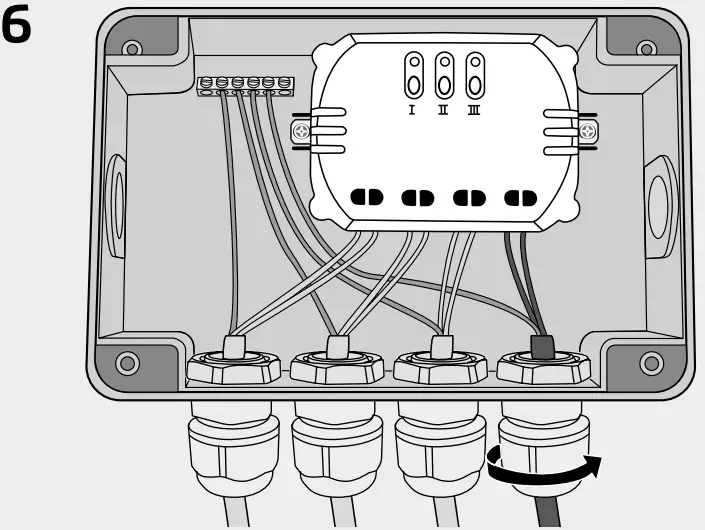

- Tighten cable glands
Tighten the cable glands by turning clockwise to protect the inside from dust and moist.
Use 7-12 mm diameter cable for an optimal seal.
Other cable sizes can negatively affect the waterproofness of the junction box.

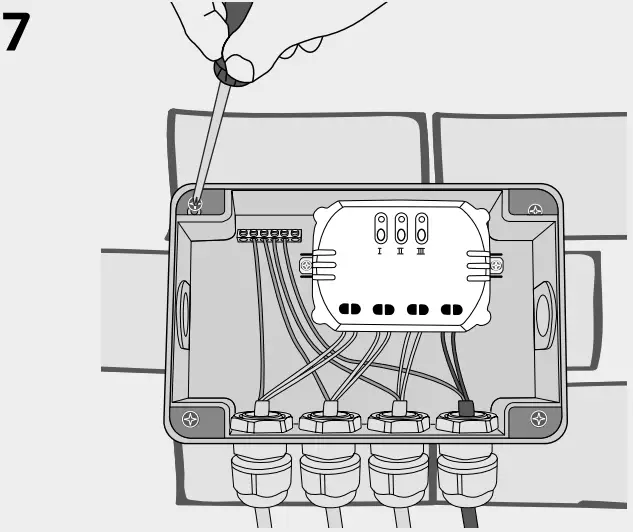

- Mount junction box
Affix the junction box onto a wall or another surface for extra stability.

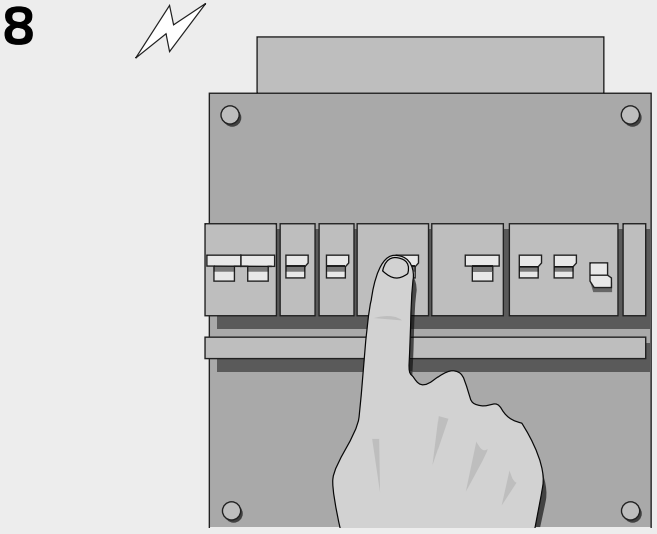

- Switch on the mains power (electric meter box) to continue the installation
Shock hazard! Do not contact any exposed wiring.
Only touch the plastic housing of this product.

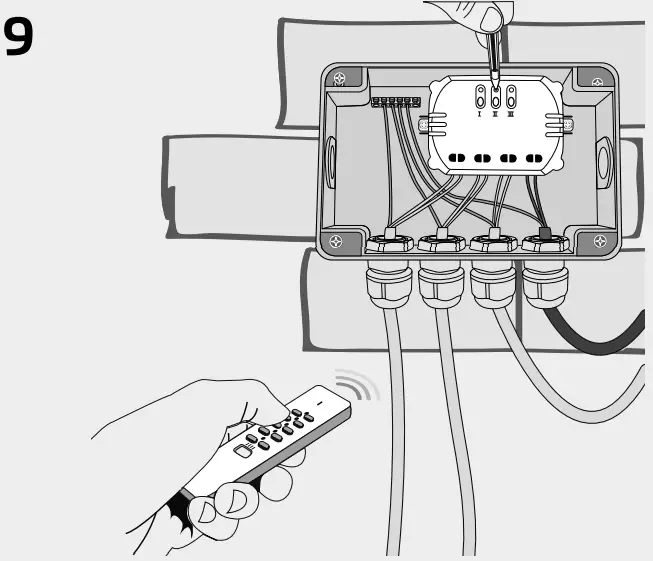

- Assign Trust Smart Home transmitter code
Read the receiver’s manual for the code learning procedure.
- Close junction box
Put the cover plate back on to the box and tighten the 4 screws on each corner with a screwdriver.
Safety Instructions
Product support: www.trust.com/71050.
Warranty conditions: www.trust.com/warranty
To ensure safe handling of the device, follow the safety advice on: www.trust.com/safety
The Wireless range is strongly dependent on local conditions such as the presence of HR glass and reinforced concrete Never use Trust Smart Home products for life-support systems.
This product is water-resistant.
Do not attempt to repair this product.
Wire colors may vary per country.
Contact an electrician when in doubt about wiring.
Never connect lights or equipment that exceed the maximum load of the receiver.
Exercise caution when installing a receiver voltage may be present, even when a receiver is switched off.
 |
Disposal of packaging materials: Dispose of packaging materials which are no longer needed in accordance with applicable local regulations. |
 |
Disposal of the device: The adjacent symbol of a crossed-out wheelie bin means that this device is subject to Directive 2012/19/EU. |
 |
Disposal of batteries: Used batteries may not be disposed of in household waste. Only dispose of batteries when they are fully discharged. Dispose of batteries according to local regulations. |
 |
Trust Electronics Ltd. declares that item number 71050 is in compliance with Directive 2011/65/EU The full text of the declaration of conformity is available at the following internet address: www.trust.com/compliance |
 |
Trust International B.V. declares that item number 71050 is in compliance with Directive 2011/65/EU. The full text of the EU declaration of conformity is available at the following web address: www.trust.com/compliance |
TECHNICAL SPECIFICATIONS
| Size | H x W x L: 114 x 114 x 48 mm |
| IP rating | IP56 |
