TRUE TCS200 Rehab Rail Kit Instruction Manual
Contents
KIT CONTENTS
| ITEM | PART NUMBER | DESCRIPTION | QTY |
| 1 | 00601101BK | SUBASSEMBLY, LONG HANDGRIP | 2 |
| 2 | RT0011 | WASHER, STAR, INTERNAL TOOTH, M8 | 4 |
| 3 | PS0712 | ALLEN BOLT SCREW, M8-1.25 X 20MM | 4 |
| 4 | PS0099 | WASHER, SPRING M8 | 4 |
| 5 | RT0012 | HHS, M8-1.25 X 90MM, BLK, ZP | 4 |
| 6 | 0060110001BK | HANDRAIL BASE-LEFT | 1 |
| 7 | 0060110002BK | HANDRAIL BASE-RIGHT | 1 |
| 8 | 00601103BK | REAR END CAP-RIGHT | 1 |
| 9 | 00601102BK | REAR END CAP-LEFT | 2 |
| 10 | 00601104BK | SUBASSEMBLY, REHAB RAIL COVER CLAMSHELL | 2 |
| 11 | RT0017 | NUT, LOCK, NYLON, M4 X P0.7 | 2 |
| 12 | RT0013 | ROUND HEAD PHILIPS SCREW, M4-0.7 X 35MM | 1 |
| 13 | SK-426 | WRENCH, 13MM | 1 |
| 14 | SSA5-35-160MS | HEX WRENCH 5MM X 35MM X 160MM | 1 |
| 15 | MAN-00601100BK | TCS200/TC400/TC600 REHAB RAIL KIT INSTALLATION INSTRUCTIONS | 1 |
ADDITIONAL ITEMS NEEDED—NOT INCLUDED WITH KIT
| ITEM | PART NUMBER | DESCRIPTION | b |
| 1 | TCS4028 | BHCS, M8X1.25X80MM | 4 |
| 2 | RT0011 | WASHER, STAR, INTERNAL TOOTH, M8 | 4 |
| 3 | PS0035 | SCREW M5xP0.8x15MM | 2 |
| 4 | N/A | #2 PHILLIPS SCREWDRIVER | 1 |
NOTE: The additional hardware needed is included with the TCS200/TC400/TC600 treadmill.
NOTE: Supplemental video available on vimeo.com: https://vimeo.com/821057734.
STEPS
- If this kit is part of a new installation, skip ahead to step 2. If this kit is going on a pre-assembled treadmill that has the shoulder covers and handrails already assembled, continue on with this step:
a. Using a #2 Phillips screwdriver, remove and set aside the 16 screws securing the left and right, top and bottom shoulder covers to the console rack.b. Using a 5mm allen wrench, remove and set aside the four screws and washers securing the left and right handrails to the pedestals.

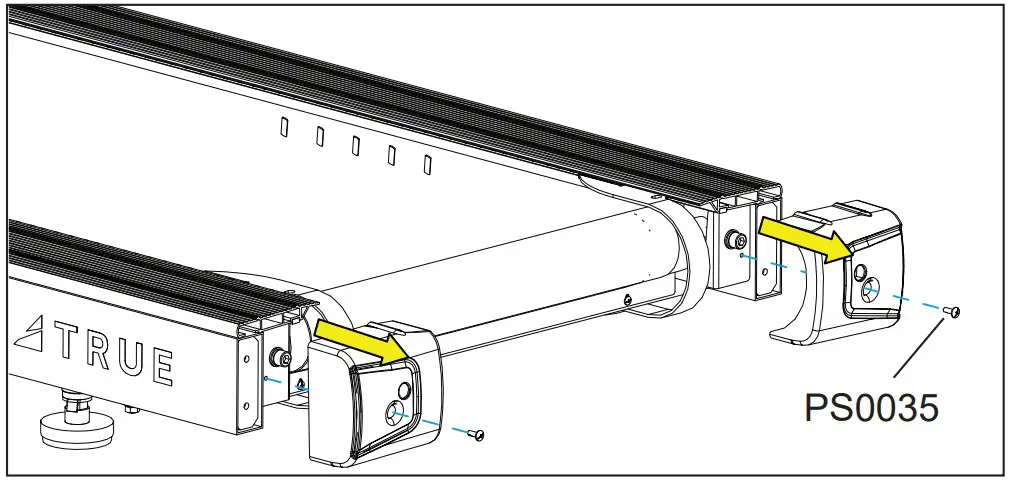

- Using a #2 Phillips screwdriver, remove and set aside the two screws securing the left and right rear roller covers to the frame.
- Using the existing handrail screws and washers, fi nger tighten the left and right rehab rail kit handrails to the pedestals. Once the screws are fi nger tight, use a 5mm allen wrench to fully tighten all four screws

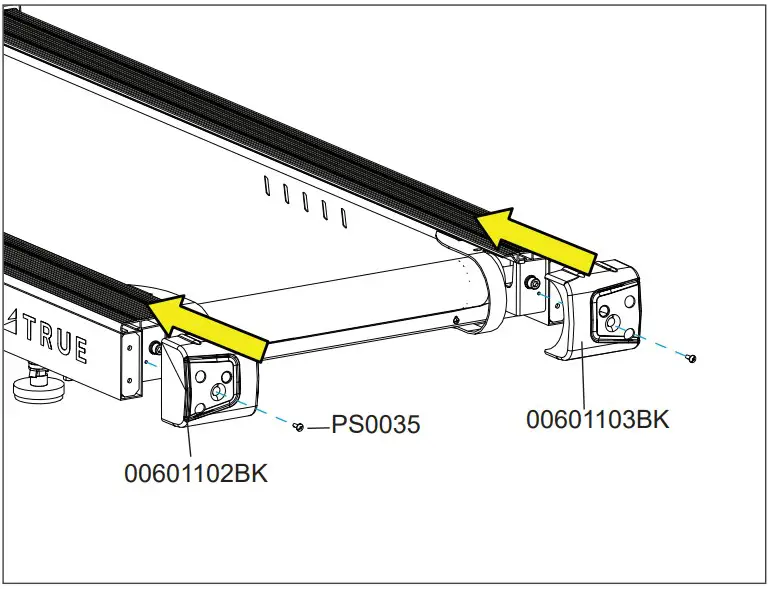

- Using the two existing rear roller cover screws and a #2 Phillips screwdriver, attach the rehab rail kit end caps to the frame.
- Attach one side at a time:
a. Line up the bottom of the long handgrip assembly with the openings of the end cap and fi nger tight the hex bolts/ spring washers.
b. Line up the top of the long handgrip assembly with the rehab kit handrails and fi nger tight the allen bolts/star washers.
c. Once all the hardware is fi nger tight, use a 13mm wrench to fully tighten the hex bolts and a 5mm allen wrench to fully tighten the allen bolts.
- Using a #2 Phillips screwdriver, reattach the top and bottom shoulder covers to the console rack using the previously removed 16 screws.
- Using a #2 Phillips screwdriver, attach the left and right rehab rail clam shell assemblies.
