TD130008OT 1-Light 13 inch Black Motion Sensor Outdoor Wall Lantern Sconce
Instruction Manual
PACKAGE CONTENTS
| PART | DESCRIPTION | QUANTITY |
| A | Fixture | 1 |
HARDWARE CONTENTS(shown actual size)
 |
|
| Long monting screw x 2 |
x 3 Wire nut
|
 |
|
| Long monting screwx 2 | Mounting plate (Not actual size) x 1 |
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
- TURN OFF ELECTRICITY at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching off circuit breaker).
- MINIMUM 90°C SUPPLY CONDUCTORS.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Times: 25 minnutes
Tools Required for Assembly (not included): Flathead screwdriver , Phillips screwdriver, Pliers, Electrical tape, Wire cutters, Safety glasses.
Helpful Tools (not included): Wire strippers, Step ladder.
Customer Service: [email protected]
ASSEMBLY INSTRUCTIONS

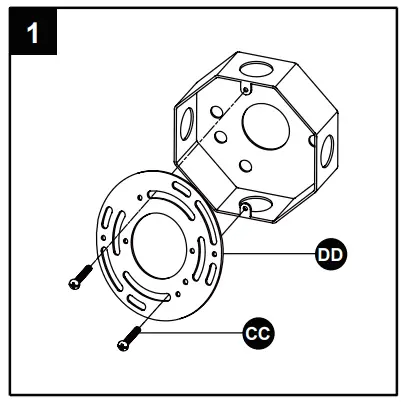

- Attach the mounting plate (DD) to the outlet box (not included) with the long mounting screws (CC).
Hardware Used
CC Long mounting screw
DD Mounting plate
- Strip 3/4 in. of insulation from wire ends. Twist stripped ends together with pliers (not included), black to black (power) and white to white (neutral). Attach copper wire to ground wire. Helpful hint: If necessary, attach copper ground wire to grounded outlet box.

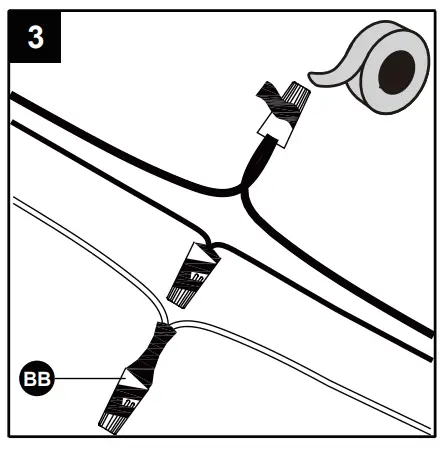

- Attach wire nuts (BB).Tape wire nuts (BB)and wires together.
Hardware Used
BB Wire nut
- Align the 2 screws(AA) through the holes of the back plate, and fix them with screw nuts.
Hardware Used
AA Long mounting screw
DD Mounting plate
- Install light bulb (not included). Use one E26 bulb.
CAUTION: To avoid any waterproofing problems, please make sure the light fixture fits the mounting surface perfectly installation and use waterproof glue around the canopy for better sealing after installation.
