Rigid Low Profile Corner Bead
Installation Guide
Contents
Rigid Low Profile Corner Bead
Rigid Low Profile Corner Bead
The Rigid Low Profile Corner Bead is a variation on our standard 90-degree vinyl corner bead that requires less mud and no setback to finish. With its sharp rigid nose, this is a great choice for a level-five finish. Available with an 81-degree closed angle (CA) for use with twisted or warped framing.
Installation Guide
 |
 |
|
|

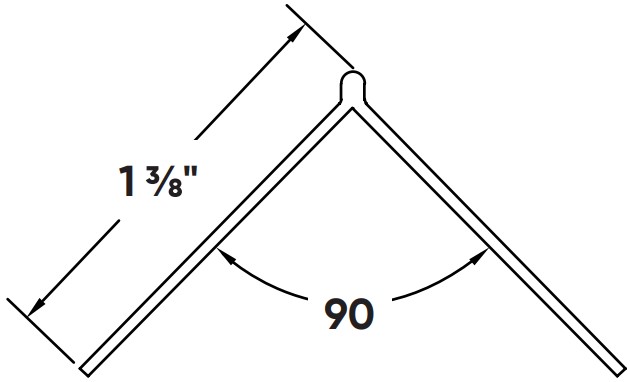

Technical Specs |
Setback: Standard |
Scan the QR Code for Installation Video |
Before Installation:
Use minimal drywall setback on outside corners. Measure, cut and dry fit the bead, leaving a ½″ gap at the floor.
Step 1:
Coat both the bead and edge of drywall with Trim-Tex 847 Spray Adhesive.
Step 2:
Press the bead in place, applying pressure to the mud legs.
Step 3:
Staple every 6”-8” using ½″ staples.
Step 4:
Finish with drywall compound.
