9230 Flat Deflection Bead
Installation Guide
Contents
Flat Deflection Bead
This simple solution prevents inside corner cracking when installed against a ceiling or concrete deck that may be subject to movement, to be used alongside backing materials in the head-of-wall gap for a code-compliant assembly. Its flexible gasket compresses and expands, providing protection for up to ½” of deflection, while its tear-off strip leaves a clean finished edge.

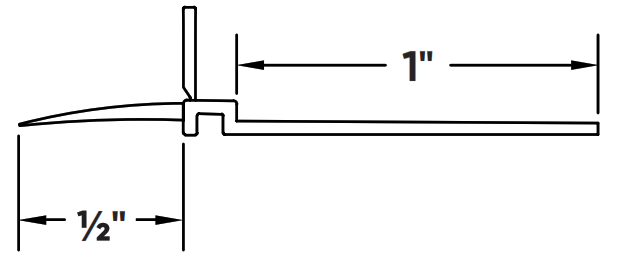

Technical Specs
Scan Below for Installation Video
Before Installation:
Hang drywall no more than ½” from the ceiling. Fill void with caulk or other cavity materials if necessary. Measure, cut and dry fit the bead.
Step 1:
Coat both the bead and drywall with Trim-Tex 847 Spray Adhesive.
Step 2:
Press the bead in place, applying pressure to the mud legs.
Step 3:
Staple every 6”-8” using ½” staples.
Step 4:
Finish with drywall compound. Remove tear-off strips prior to sanding.
