tp-link LS1005G, LS1008G Gigabit Desktop Switch Installation Guide
LED Explanation
Power
On: Power on
Power Off: Power off

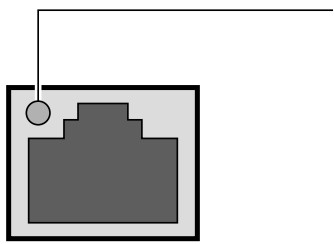

Link/Act
Link/Act (Green)
On: Running at 10/100/1000Mbps
Flashing: Transmitting/receiving data
Off: No device is linked to the
corresponding port
Note: For simplicity, we will take LS1008G for example throughout this Guide.

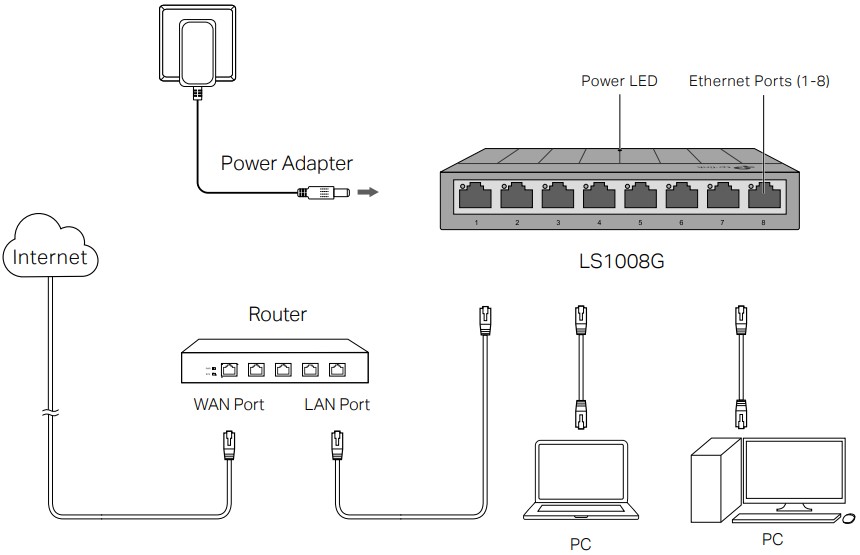

Connection
Contents
Frequently Asked Questions (FAQ)
Q1. The Power LED is not lit.
The Power LED should be lit when the power system is working normally. If the Power LED is not lit, check as follows:
A1:Make sure the power adapter is connected to the switch with power source properly.
A2:Make sure the voltage of the power supply meets the requirements of the input voltage of the switch.
A3: Make sure the power source is ON.
Q2. The Link/Act LED is not lit when a device
is connected to the corresponding port.
It is recommended that you check the following items:
A1:Make sure that the cable connectors are firmly plugged into the switch and the device.
A2:Make sure the connected device is turned on and works normally.
A3: The cable must be less than 100 meters long (328 feet).
Specifications
General Specifications
| Standard | EEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x |
| Protocol | CSMA/CD |
| Data Transfer Rate | Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex) Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex) Gigabit Ethernet: 2000Mbps (Full Duplex) |
| Network Media (Cable) | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100Base-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000Base-T: UTP category 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Interface | 5/8 10/100/1000Mbps Auto-Negotiation RJ45 Ports |
| LED Indicators | Power, Link/Act LED |
| Transfer Method | Store-and-Forward |
| MAC Address Learning | Automatically learning, automatically aging |
| Frame Forward Rate | 10Base-T: 14881pps/Port 100Base-TX: 148810pps/Port 1000Base-T: 1488095pps/Port |
| Wall Mountable | Yes |
| Distance Between Mounting Holes |
LS1005G: 38mm LS1008G: 48mm |
Environmental and Physical Specifications
| Operating Temperature | 0˚C to 40˚C (32˚F to 104˚F) |
| Operating Humidity | 10% to 90%RH non-condensing |
| Storage Humidity | 5% to 90%RH non-condensing |
TP-Link hereby declares that the device is in compliance with the essential requirements and other
relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/
TP-Link hereby declares that the device is in compliance with the essential requirements and other
relevant provisions of the Electromagnetic Compatibility Regulations 2016 and Electrical Equipment
(Safety) Regulations 2016.
The original UK declaration of conformity may be found at https://www.tp-link.com/support/ukca/
Safety Information
- Keep the device away from water, fire, humidity or hot environments.
- Do not attempt to disassemble, repair, or modify the device. If you need service,
please contact us - Do not use damaged charger or USB cable to charge the device
- Do not use any other chargers than those recommended.
- Adapter shall be installed near the equipment and shall be easily accessible.
To ask questions, find answers, and communicate with TP-Link users or engineers, please visit https://community.tp-link.com to join TP-Link Community.
For technical support and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.
