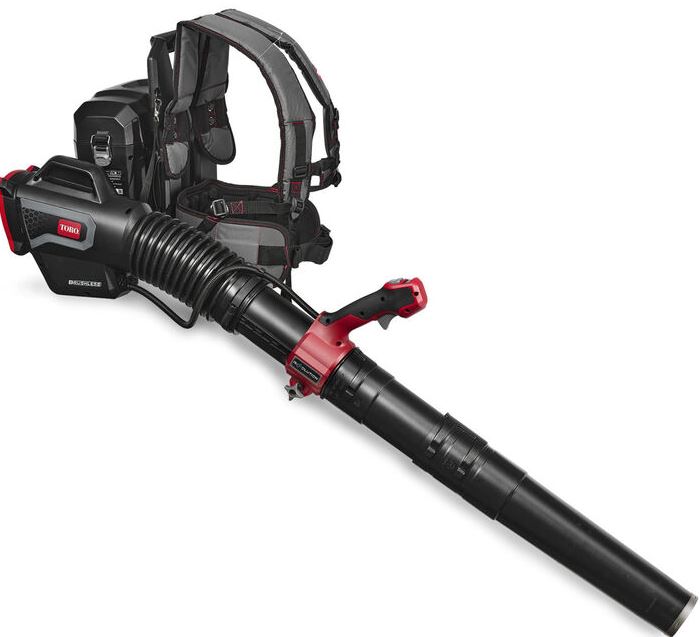

TORO 66200 Revolution 60V Backpack and Blower Cannon Tool
Ordering Replacement Parts
- To order replacement parts, please supply the part number, the quantity, and the description of each part desired.
- Understanding Reference Numbers
- Each identified part in an illustration has a reference number. The reference number for a part also appears in the parts list, along with other information about the part.
- This catalog uses two special reference number formats, one to indicate parts in a service assembly and another to indicate the quantity of a given part in an illustration.
- Service Assembly Reference Numbers
- Parts in service assemblies have reference numbers in the form a:b. The a represents the reference number of the entire service assembly and the b represents a sequential number unique to each part within the service assembly.
- For example, a wheel assembly might be identified by reference number 6, the tire by 6:1, the valve by 6:2, and the wheel by 6:3. When you order the assembly identified by reference number 6, you receive all parts identified by reference numbers 6:1,6:2, and
- 6:3. However, you may also order any part individually. Reference numbers of this type appear in illustration and in parts lists.
- Reference Numbers Indicating Quantity
- In an illustration, if a reference number indicates more than one part, the reference number has the form nX y. The n represents the quantity of the part, the X is the multiplication symbol, and the y represents the reference number.
- For example, in an illustration, the reference number 2X 37 means that two of the parts identified by reference number 37 are indicated.

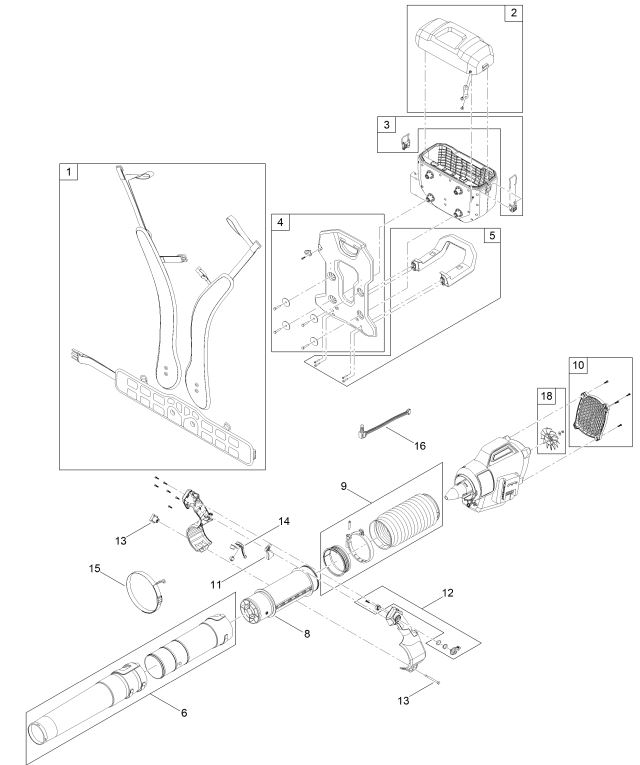

Revolution 60V Backpack and Blower Cannon Tool Assembly
| Ref. | Part Number | Qty. | Description | Ref. | Part Number | Qty. | Description | |
| 1 | 147-1863 | 1 | Harness-Shoulder/Hip | 10 | 147-1859 | 1 | Cover-Air Inlet | |
| Straps Kit | 11 | 147-1860 | 1 | Trigger-Pistol Handle | ||||
| 2 | 147-1864 | 1 | Cover-Battery Housing | 12 | 147-1861 | 1 | Lever-Speed Lock ASM | |
| 3 | 147-1865 | 1 | Latch-Battery Housing | 13 | 147-1862 | 1 | Knob-Pistol Handle | |
| 4 | 147-1866 | 1 | Plate-Battery Housing | Adjustment | ||||
| Mount | 14 | 147-1868 | 1 | Button-Turbo Speed | ||||
| 5 | 147-1867 | 1 | Brace-Backpack Plate | 15 | 147-1874 | 1 | Strap-Blower | |
| 6 | 147-1882 | 1 | Air Outlet Tube Kit | 16 | 147-1876 | 1 | Switch-Speed Control | |
| 8 | 147-1857 | 1 | Tube-Pistol Handle Slide | 18 | 147-1850 | 1 | Fan-Blower | |
| 9 | 147-1858 | 1 | Tube-Fexible, Corrugated |
Attachments and Accessories
For 66200 Revolution 60V Backpack and Blower Cannon Tool
Product Name/Model/Part
- Tether-Backpack.…………………………………………………………………………………………………………. 66005
- 60V 10.0 AH Battery LI-ION, CE………………………………………………………………………………………. 68810
- 60V Battery Charger 1 Amp Australia……………………………………………………………………………….. 81101
- 60V Battery Charger 1 Amp CE……………………………………………………………………………………….. 81801
- 60V Battery Charger 2 Amp CE……………………………………………………………………………………….. 81802
- 60v Battery Charger 5 Amp International……………………………………………………………………………. 81805
- 60V 2.0 AH Battery International……………………………………………………………………………………… 81820
- 60V 2.5 AH Battery CE………………………………………………………………………………………………….. 81825
- 60V 4.0 AH Battery CE.…………………………………………………………………………………………………. 81850
- 60V 6.0 AH Battery CE………………………………………………………………………………………………….. 81860
- 60V 7.5 AH Battery CE.…………………………………………………………………………………………………. 81875
- Register at www.Toro.com. Original Instructions
