Tommee Tippee 360° sealer diaper disposal system Instruction Manual
Please read all instructions thoroughly and retain this important information for future reference.
WARNING!
Plastic film can be dangerous. To avoid suffocation keep plastic film away from babies and children.
Do not store in or near babies’ sleeping area.
WARNING!
To prevent injury, do not attempt to take this unit apart other than to replace the film or empty the drawer. User maintenance other than cleaning is not required.
WARNING!
To prevent injury, do not stand or sit on this product.
WARNING!
For adult use only. Do not allow your child to play with this product.
WARNING!
Do not fill the pail with water or other liquids. Serious accidents have occurred to babies and young children when pails have been filled with liquid.
STEP 1 Setting the film up in the system
The system works by two rolls of film coming together and sealing the diaper inside them. Follow these simple instructions to set up the film, ready for diaper sealing. Take the film refill out of its box and open the lid of the pail.

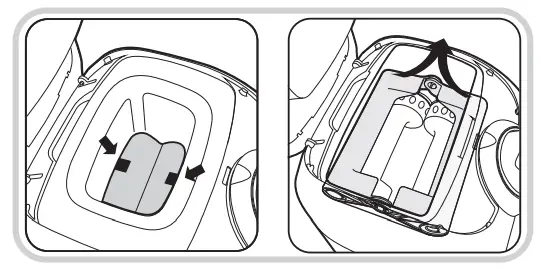

- Remove inlet by squeezing the back section and lifting to ease out
- Ensure dial is in start position with red mark showing
- Lay refill out flat, film side up. Release (but do not remove) the sticky tabs on both rolls and pull out 4 inches of film from each roll
- Bring sticky tabs together to join the two rolls of film

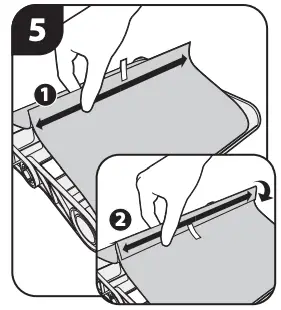

- Press firmly along the edge of the film with your fingers, about ½ inch deep. Fold the film over and press again to create a stronger seal
- Flip refill over and fold it at the hinge, ensure that the film is hanging downwards
- Place the refill in to top of pail and flatten it out to sit on top of the ledges. Press film down gently to meet the rollers
- Turn the dial one full rotation until it clicks then check the film has set up correctly
Correct set up
Film must cover the full width of the rollers
Incorrect set up
In this case, continue to turn the dial until the film becomes properly aligned
- Replace the inlet by locating the tab in to the front first, then clicking the back in to place
- Close the lid. The unit is now ready for use
STEP 2 Using the system
- Open the lid and ensure dial is in start position with red mark showing
- Fold the diaper in to a tight package then drop in to the pail vertically
- With the lid open, twist the dial clockwise until it “clicks”
- The diaper is sealed away inside the pail
- Fresh film is automatically ready for next diaper
- Close the lid, ensuring the latch re-engages and the diaper disposal is complete
When red line appears you have approximately 4 changes left until film ends
When film runs out, remove inlet, lift the refill out and return to step 1 to set up a new refill
STEP 3 Emptying the system

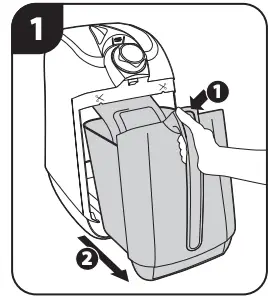

- Remove the EasiSlide drawer out of the pail by pressing to release the latch and pull out using the front handle

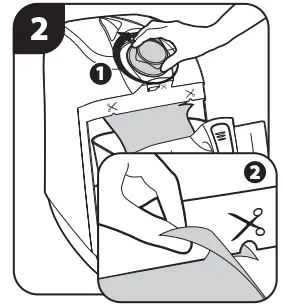

- Turn the dial one more full rotation until it clicks to release some excess film then use the tear point to make a slight tear in the film

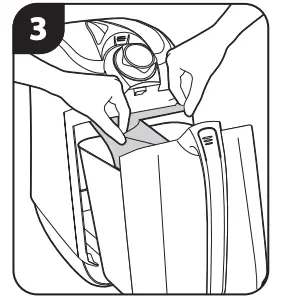

- Using two hands, tear the film all the way across. The drawer is now ready to empty

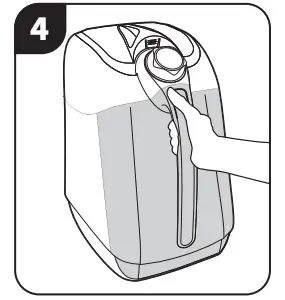

- After emptying, replace the drawer completely until the latch engages
CLEANING INSTRUCTIONS
Clean your pail periodically by wiping it down with mild household cleaner or soap and hot water. Do not clean with solvents or harsh chemicals. Do not submerge in water.
TROUBLESHOOTING
