THUMPER FAB TF040905 Can Am Defender Rear Chassis Stiffener
Product Information
| Product Name | Can Am Defender Rear Chassis Stiffener |
|---|---|
| SKU | TF040905 |
| Manufacturer | Thumper Fab |
| Address | 5103 Elysian Fields Rd, Marshall, TX 75672 |
| Customer Service | 903-472-0928 |
| Website | www.thumperfab.com |
| Version | 0223 |
Product Usage Instructions
Before You Begin:
- Make sure to read and understand the installation instructions.
Installation Instructions:
Step 1:
- Jack up the unit and remove the wheels.
- Use a drill and a 3/16 drill bit to drill out the rivets fastening the factory rear chassis cover to the frame (FIG 1).
Step 2:
- Use a 15mm socket and a 15mm wrench to remove the factory
hardware that bolts the rear most control arm bushing of the upper and lower control arm to the frame (FIG 2).
Step 3:
- Fasten the Rear Chassis Stiffener (1) to the rear of the frame using the 2 x M10-1.5x80mm flange head bolts (A) in the top 2 holes and the 2 x M10-1.5x90mm flange head bolts in the bottom 2 holes.
- Use the 4 x M10-1.5 flanged nylon lock nuts (D) to tighten hardware to factory specifications (FIG 3).
Step 4:
- Reinstall the tires.
- Lower the Defender to the ground.
Enjoy your new Thumper Fab Rear Chassis Stiffener!
PARTS
| REF | QTY | DESCRIPTION |

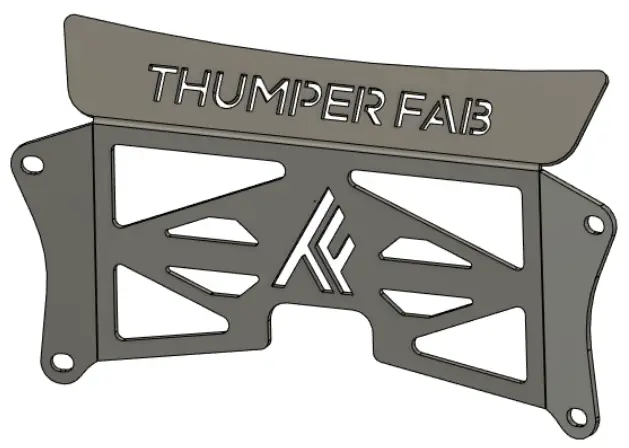

| 1 | 1 | Rear Chassis Stiffener |

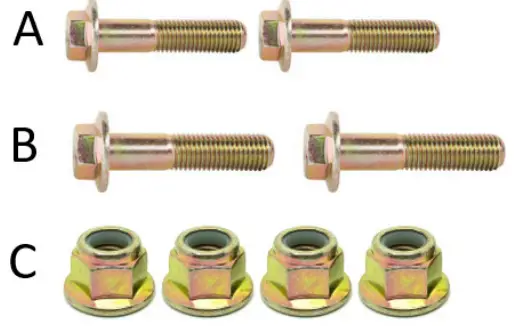

| HARDWARE KIT | ||
| A | 2 | M10-1.5x80mm Flange Head Bolt |
| B | 2 | M10-1.5x90mm Flange Head Bolt |
| C | 4 | M10-1.5 Flanged Nylon Lock Nut |
TOOLS
- Drill
- 3/16” Drill Bit
- 15mm Socket
- 15mm Wrench
BEFORE YOU BEGIN
If you do not feel comfortable installing your Thumper Fab Rear Chassis Stiffener please see your nearest Can Am® Dealer for installation.
INSTALLATION INSTRUCTIONS
Installation Preperation

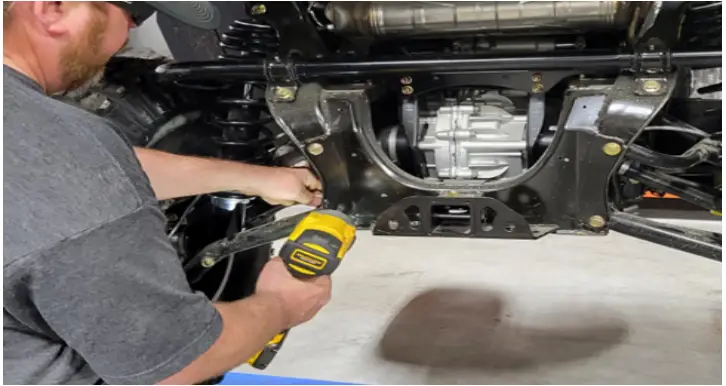

Jack up the unit and remove the wheels. Use the drill and a 3/16” drill bit to drill out the rivets fastening the factory rear chassis cover to the frame (FIG 1).
FIG 1 – Use 3/16” Drill bit to drill out rivets

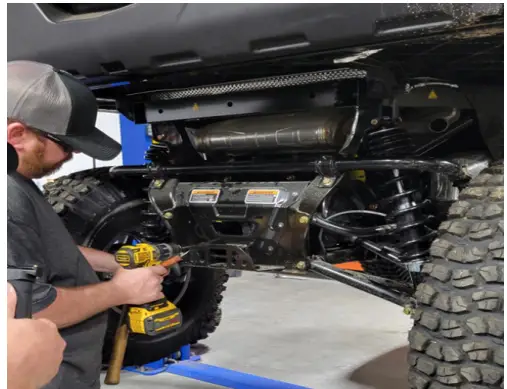

Use the 15mm socket and the 15mm wrench to remove the factory hardware the bolts the rear most control arm bushing of the upper and lower control arm to the frame (FIG 2).
FIG 2 – Use 15mm Socket and 15mm Wrench to remove OEM bolts
Fasten the Rear Chassis Stiffener (1) to the rear of the frame using the 2 x M10-1.5x80mm flange head bolts (A) in the top 2 holes and the 2 x M10-1.5x90mm flange head bolts in the bottom 2 holes. Use the 4 x M10-1.5 flanged nylon lock nuts (D) to tighten hardware to factory specifications (FIG 3).

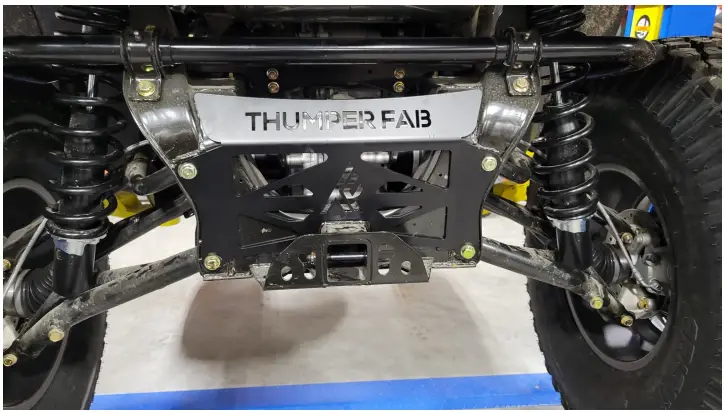

FIG 3 – Use 15mm Socket and 15mm Wrench to fasten stiffener to frame.
Reinstall the tires and lower the Defender to the ground. Enjoy your new Thumper Fab Rear Chassis Stiffener!!
